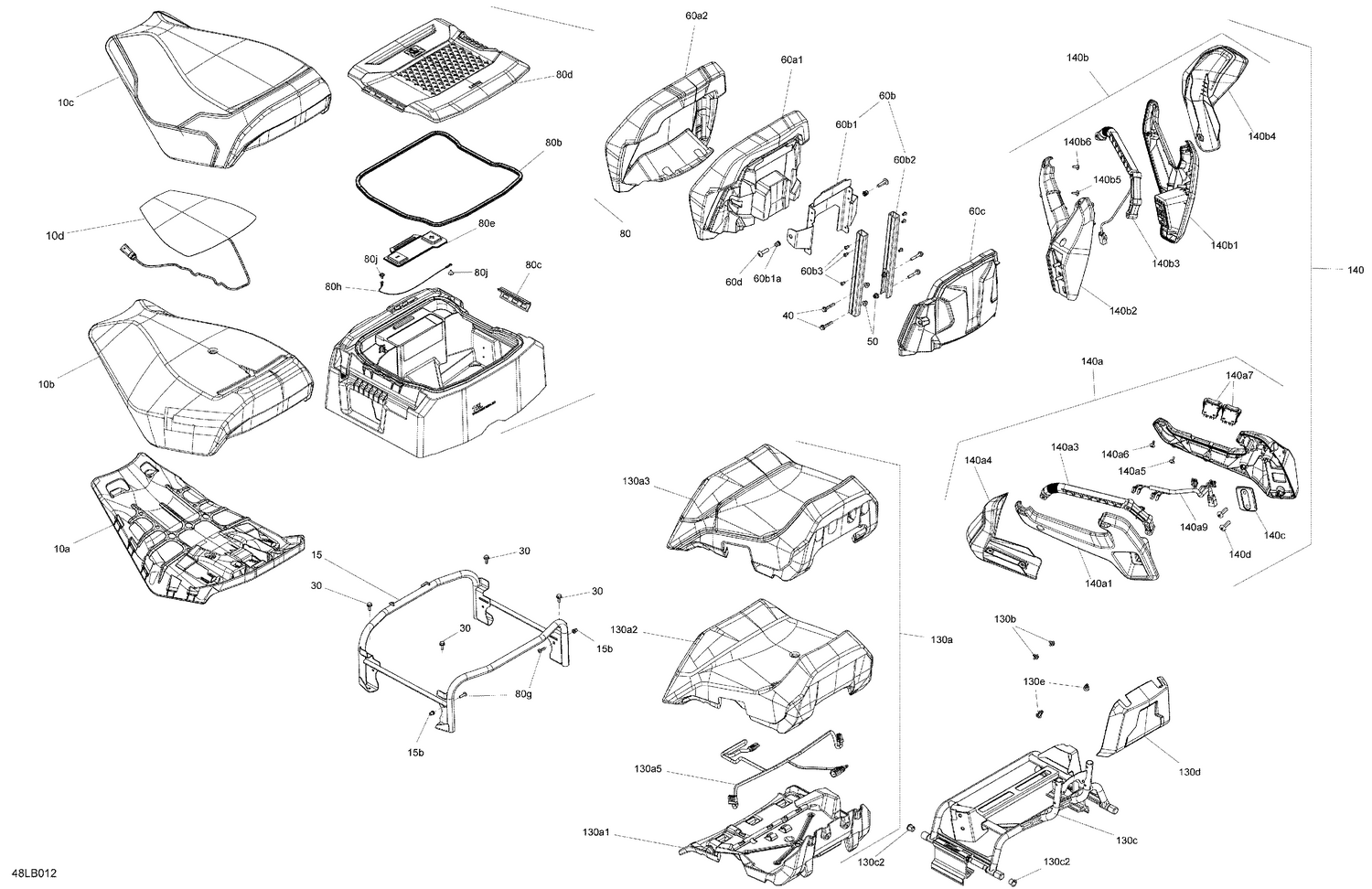

07- Body - Seat
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006721 | Seat Base |
| 10b | 510008182 | Front Foam Seat This part replaces 510006722. |
| 10c | 510007229 | Seat Cover |
| 10d | 515178727 | Heated Element |
| 15b | 293450268 | Insert M5 X 0.8 |
| 30 | 207661644 | Hex. Flange Screw M6 X 16 |
| 40 | 207663544 | Hex. Flange Screw M6 X 35 |
| 50 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 60a1 | 510006731 | Backrest Foam |
| 60a2 | 510007244 | Backrest Cover |
| 60b1a | 250100065 | Clinching Nut Hexert M8 |
| 60b2 | 510007000 | Backrest Support |
| 60b3 | 390909200 | Avex Rivet |
| 60c | 510006734 | Backrest Support |
| 60d | 250000745 | Hex Torx Truss M8 X30 |
| 80b | 293830188 | Seal, 1PC = 3M |
| 80c | 269502449 | Latch |
| 80d | 511001274 | Box Cover |
| 80e | 510006789 | Access Cover |
| 80g | 250000724 | Torx Screw M5 X 20 |
| 80h | 293750092 | Retaining Cable |
| 80j | 250000805 | Plastite Screw M4 X 10 |
| 130a1 | 510006885 | Passender Seat Base |
| 130a2 | 510006728 | Passenger Seat Foam |
| 130a3 | 510007255 | Passenger Seat Cover |
| 130a5 | 515178504 | Seat Wiring Harness |
| 130b | 293150027 | Avdel Rivet |
| 130c2 | 506152520 | Cushion |
| 130d | 510006848 | Seat Trim |
| 130e | 293150230 | Tuflok Plastic Rivet |
| 140a1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140a3 | 510006488 | Passenger Heated Handhold |
| 140a4 | 510006495 | LH Passenger Handle Deflector |
| 140a5 | 250000889 | Screw M4 X 16 |
| 140a6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140a7 | 515178505 | Rocker Switch |
| 140a9 | 572103300 | Cap |
| 140b1 | 510006486 | RH Ext. Passenger Hand Hold |
| 140b2 | 510006487 | RH Int. Passenger Hand Hold |
| 140b3 | 510006488 | Passenger Heated Handhold |
| 140b4 | 510006489 | RH Passenger Handle Deflector |
| 140b5 | 250000889 | Screw M4 X 16 |
| 140b6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140c | 510006602 | Passenger Handle Trim |
