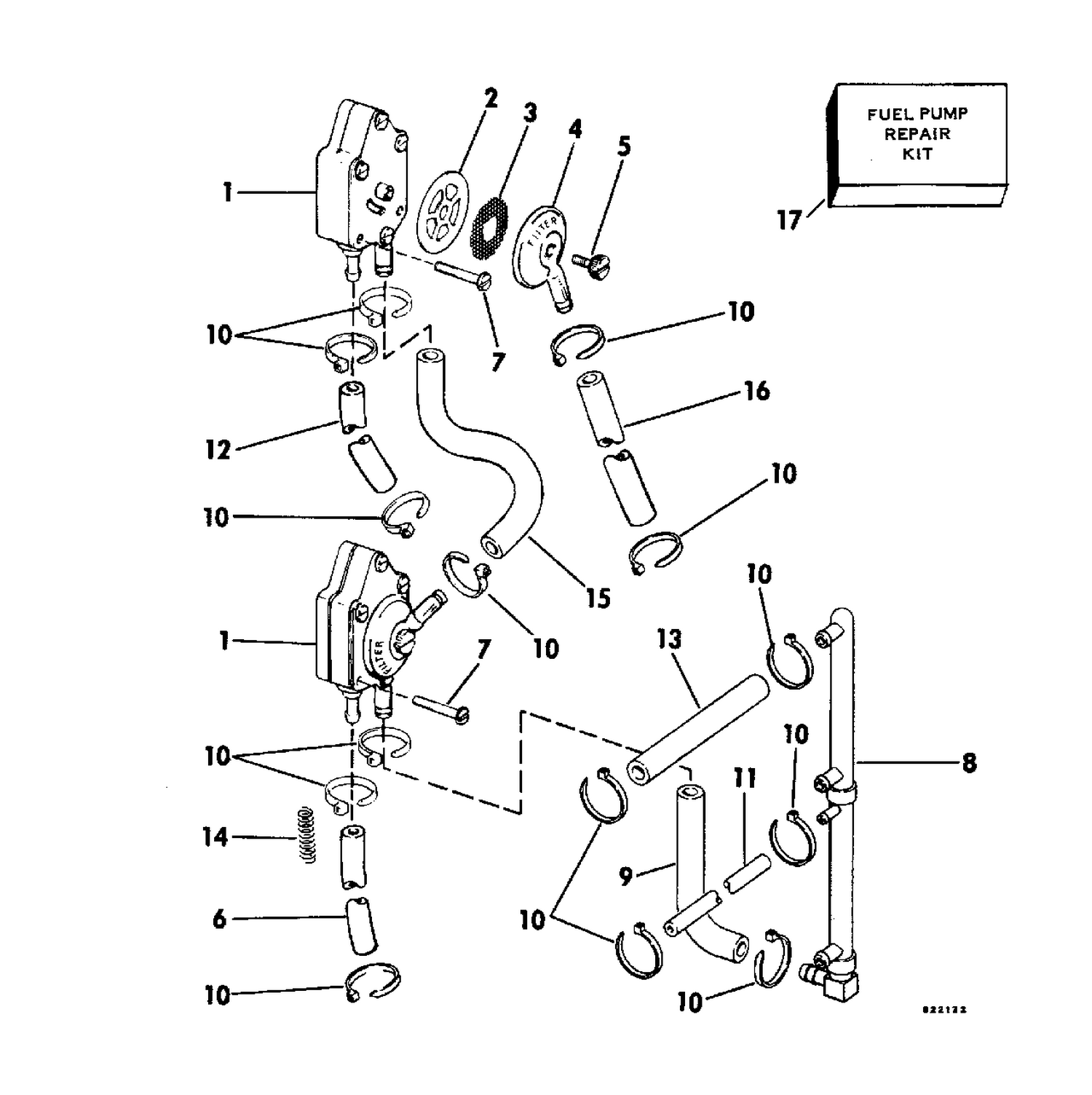

| Ref | Part Number | Description |
|---|
| 1 |
0389440 |
FUEL PUMP ASSY., Lower |
| 1 |
0438559 |
FUEL PUMP ASSY., Lower This part replaces 0388555. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0312679. |
| 4 |
0322759 |
CAP, Filter |
| 6 |
HOSE, |
Pump to crankcase |
| 7 |
0328717 |
NUT, Ground lead This part replaces 0308777. |
| 8 |
0390466 |
FUEL MANIFOLD ASSY |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
HOSE, |
Fuel manifold to primer solenoid |
| 14 |
0315942 |
SPRING |
| 15 |
HOSE, |
Upper to lower pump |
| 16 |
0333632 |
HOSE, Connector to filter This part replaces 0324370. |
