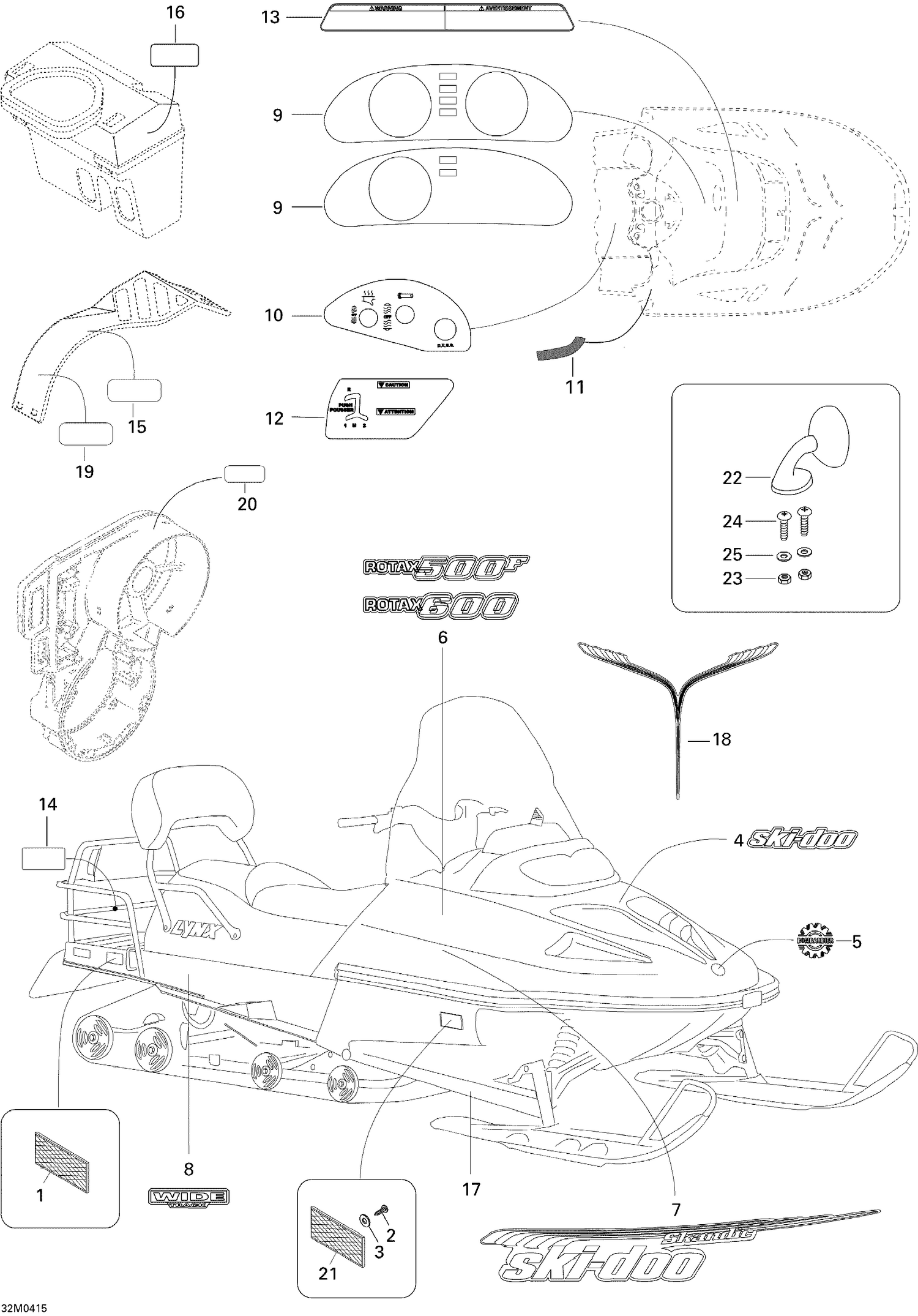

| Ref | Part Number | Description |
|---|
| 1 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 2 |
M40070 |
Screw |
| 3 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership This part replaces M20018. |
| 5 |
516008738 |
BRP Logo 48mm This part replaces 516000983. |
| 7 |
415128568 |
Side Decal Kit |
| 8 |
516000024 |
FRAME DECAL - Call your local BRP dealership |
| 11 |
415127624 |
Reflexion Decal Kit |
| 12 |
516001201 |
REVERSE DECAL - Call your local BRP dealership |
| 13 |
516002074 |
Security Label, Starter Zx |
| 14 |
516001243 |
Security Label, Hitch |
| 15 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership This part replaces 516001190. |
| 16 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 17 |
415128600 |
Arm Decal Kit |
| 18 |
516001870 |
Central Decal |
| 19 |
516001297 |
Security Label, Hot Parts |
| 20 |
M5346653 |
Instruction Label |
| 21 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 22 |
414971910 |
RH MIRROR - Call your local BRP dealership |
| 22 |
414972010 |
LH MIRROR - Call your local BRP dealership |
| 23 |
232541414 |
Elastic Stop Nut M4 |
| 24 |
M40167 |
Screw |
