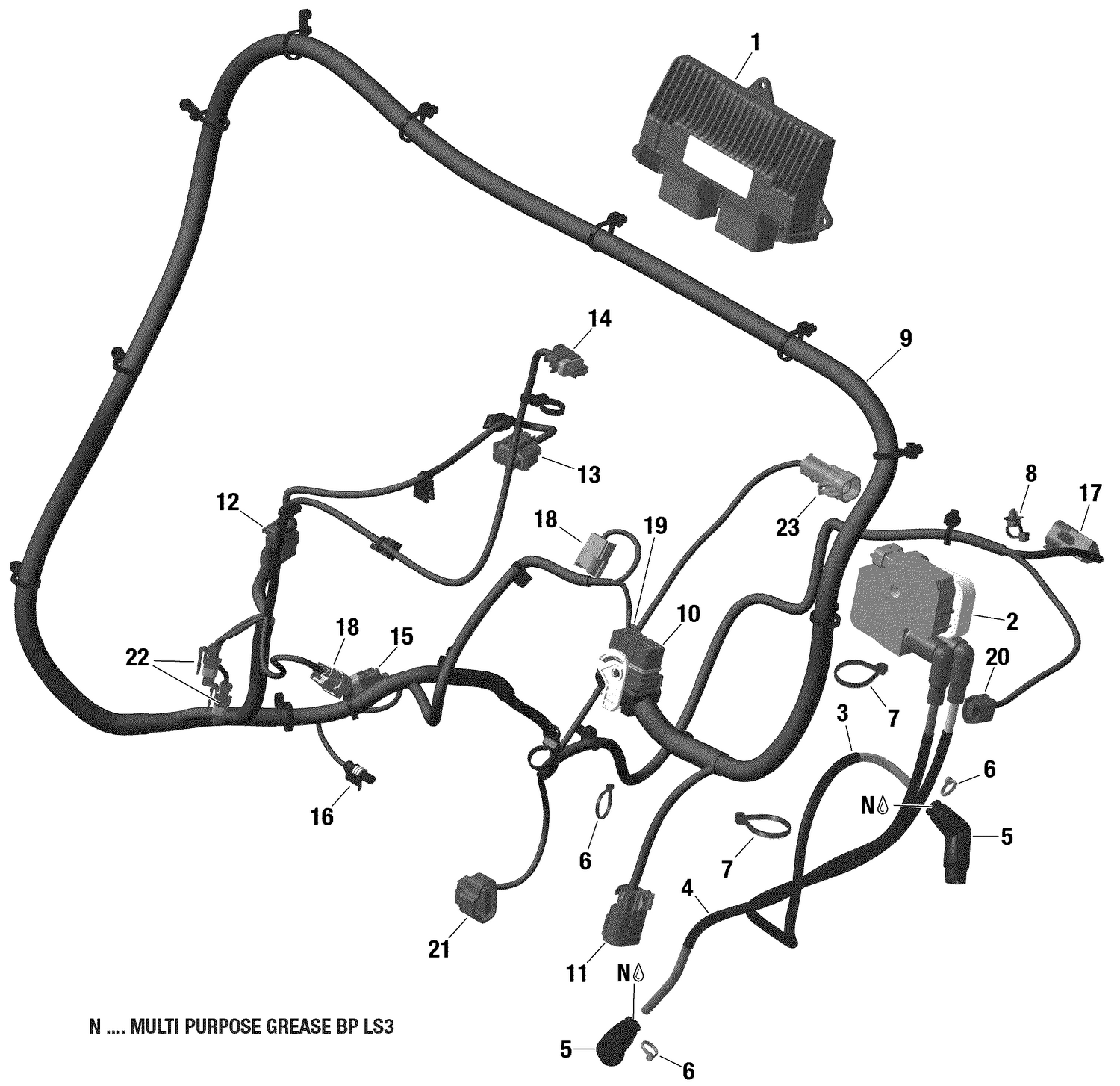

10- Engine Harness And Electronic Module - 1010R - TR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420464410 | ECU Module |
| 2a | 710000568 | Housing |
| 3 | 420665333 | Spark Plug Cable, 790 mm, Rear |
| 4 | 420665335 | Ignition Cable, Mag Side |
| 5 | 420265020 | Spark Plug Connector |
| 6 | 420866710 | Tie Rap |
| 7 | 420866714 | Tie Rap |
| 8 | 420951341 | Tie-Rap With Mount |
| 11 | 710003731 | Housing |
| 12 | 515176410 | Male Connector |
| 13 | 278000997 | Male Housing, 3 Circuits |
| 14 | 278001005 | Male Housing, 2 Circuits |
| 15 | 278001012 | Male Housing, 1 Circuit |
| 16 | 278002378 | Male Housing |
| 18 | 278001005 | Male Housing, 2 Circuits |
