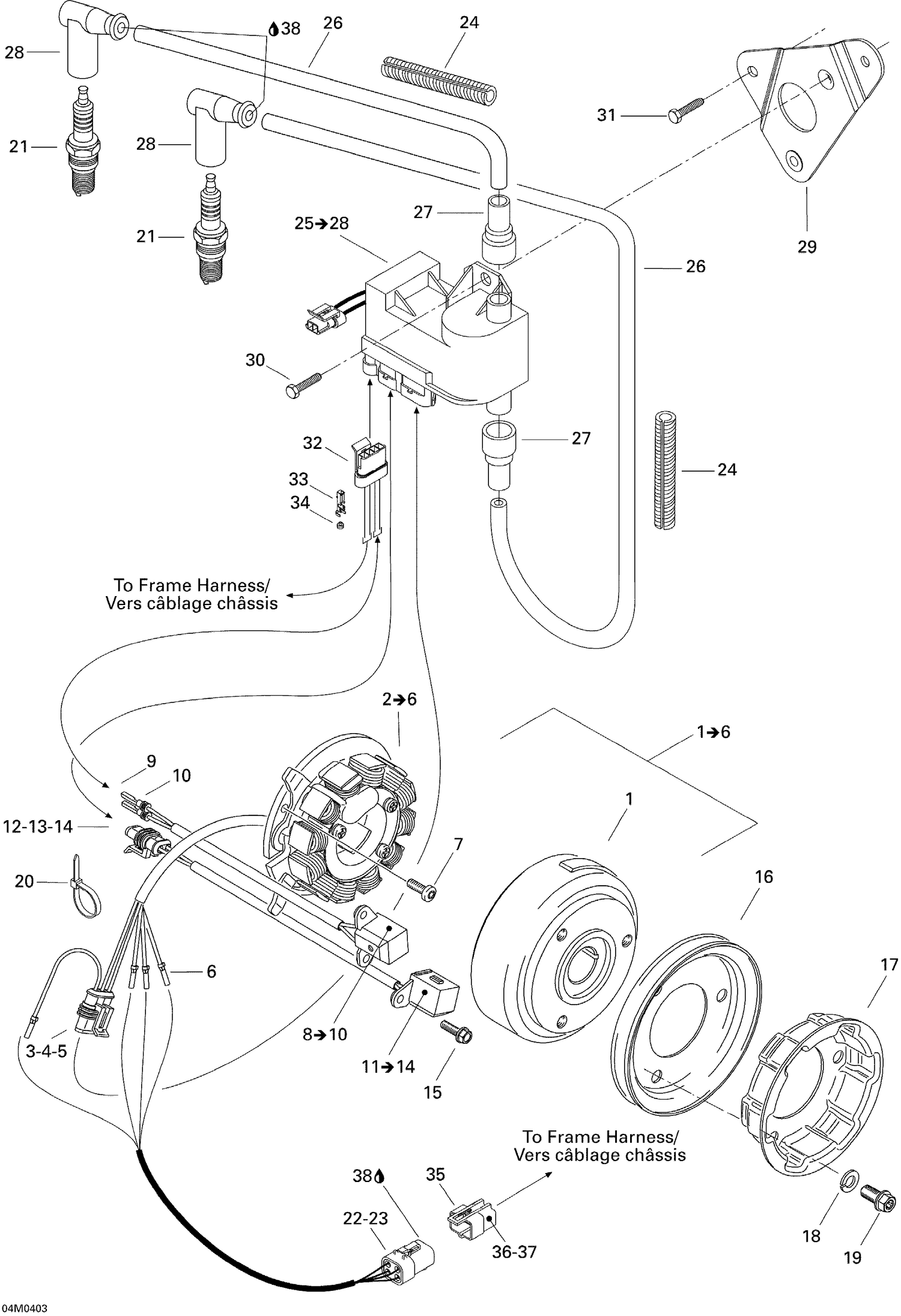

03- Magneto SKANDIC 550F
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889376 | Flywheel This part replaces 420889375. |
| 3 | 409209600 | Female Housing, 3 Circuits |
| 4 | 278001014 | Female Terminal |
| 5 | 278001013 | Wire Seal |
| 6 | 515175567 | Female Terminal |
| 7 | 420641521 | Screw |
| 9 | 278001014 | Female Terminal |
| 10 | 278001013 | Wire Seal |
| 12 | 409209500 | Female Housing, 2 Circuits |
| 13 | 278001014 | Female Terminal |
| 14 | 278001013 | Wire Seal |
| 15 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 16 | 420980486 | V-Belt Pulley |
| 17 | 420852414 | Rope Sheave |
| 18 | 420845311 | Lock Washer |
| 19 | 420440852 | Torx Flange Screw M8 X 16 |
| 20 | 293750001 | Tie Wrap 94 mm |
| 21 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 22 | 278001473 | Female Terminal Housing, 4 Circuits |
| 23 | 278001474 | Female Lock, 4 Circuits |
| 24 | 219704399 | Was 409901700 Tubing (9 mm) |
| 26 | 278002198 | SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 27 | 515174900 | PROTECTION CAP - Call your local BRP dealership |
| 28 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 29 | 512059494 | Module Support Ass’Y |
| 30 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 31 | 209561640 | Hex. Screw M6 X 16 |
| 32 | 409209700 | Female Housing, 4 Circuits |
| 33 | 278001014 | Female Terminal |
| 34 | 278001013 | Wire Seal |
| 35 | 278001477 | FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 36 | 278001478 | MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 37 | 515175568 | Male Terminal |
