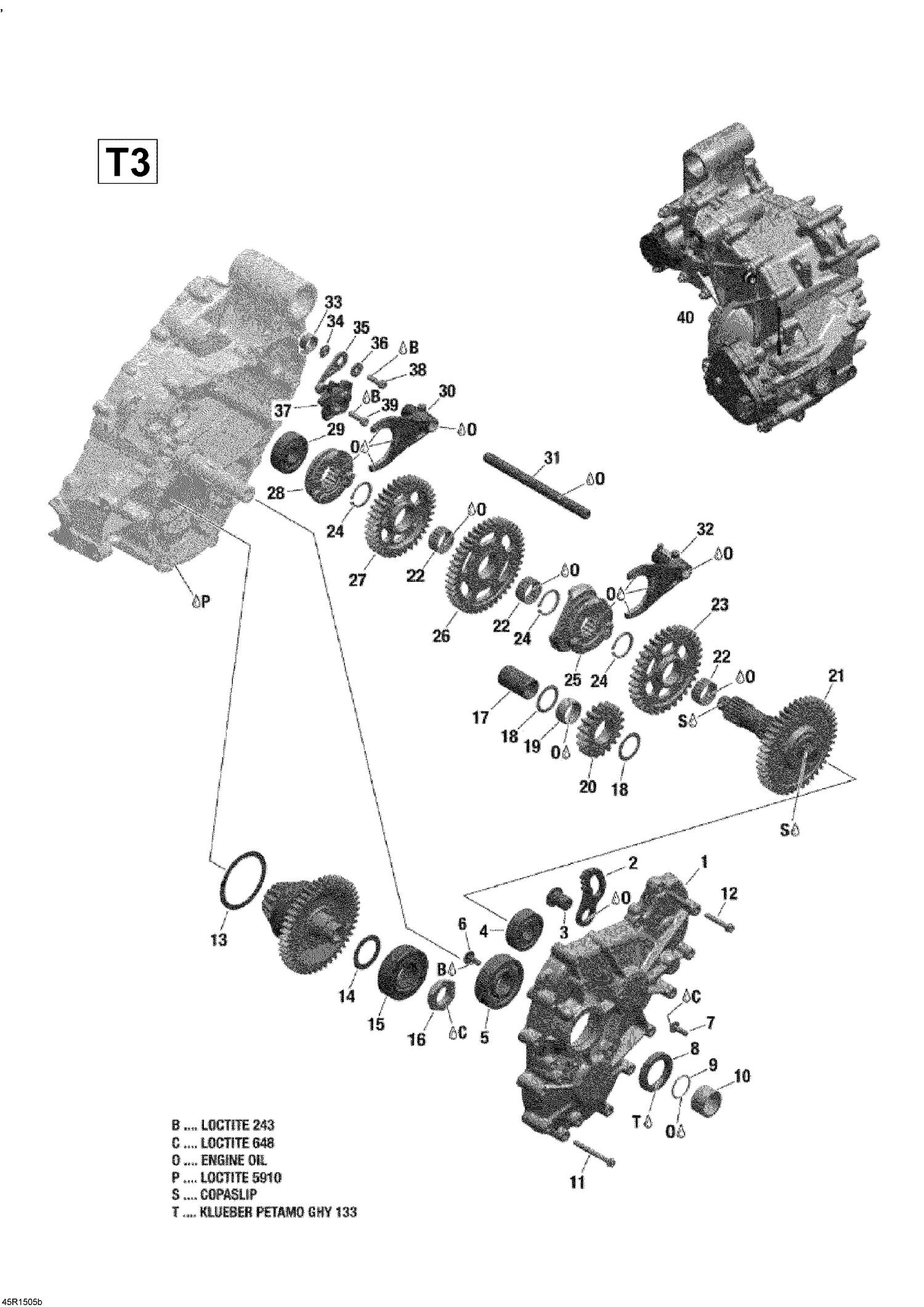

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| C |
Not |
Available As Spare Part - Loctite 648 |
| O |
Not |
Available As Spare Part - Engine Oil |
| P |
Not |
Available As Spare Part - Loctite 5910 |
| S |
Not |
Available As Spare Part - Copaslip |
| 2 |
420257654 |
Parking Lock Lever |
| 3 |
420647123 |
Collar Sleeve |
| 4 |
420932816 |
Ball Bearing This part replaces 420932815. |
| 5 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 10 |
420647267 |
Distance Ring This part replaces 420647253. |
| 13 |
Not |
Available As Spare Part - Shim Set |
| 14 |
Not |
Available As Spare Part - Shim Set |
| 15 |
Not |
Available As Spare Part - Roller Bearing |
| 17b |
420620688 |
Intermediate Gear Shaft This part replaces 420620687. |
| 18 |
420427011 |
Thrust Washer This part replaces 420944476. |
| 19 |
420932930 |
Needle Bearing |
| 20 |
420434588 |
Intermediate Gear, 19 Teeth |
| 21 |
420637044 |
Main Shaft This part replaces 420637047. |
| 22 |
420632070 |
Needle Bearing |
| 23 |
420434873 |
Gear Pinion, 34 Teeth This part replaces 420434871. |
| 24 |
420845772 |
Retaining Ring This part replaces 420845771. |
| 25 |
420257954 |
Shifting Sleeve This part replaces 420257953. |
| 26 |
420434865 |
Gear Pinion, 46 Teeth |
| 27 |
420434857 |
Gear Pinion, 36 Teeth |
| 28 |
420257945 |
Shifting Sleeve This part replaces 420257944. |
| 29 |
420932816 |
Ball Bearing This part replaces 420932815. |
| 30 |
420657365 |
Shift Fork This part replaces 420257629. |
| 31 |
420258394 |
Pivot This part replaces 420258387. |
| 32 |
420258515 |
Shift Fork Ass'y |
| 33b |
Not |
Available As Spare Part - Index Spring |
| 34 |
Not |
Available As Spare Part - Step Ring |
| 35 |
Not |
Available As Spare Part - Index Lever Ass'y |
| 36 |
Not |
Available As Spare Part - Washer |
| 37 |
Not |
Available As Spare Part - Index Washer |
| 40 |
420686654 |
Gearbox Ass'y This part replaces 420685807. |
