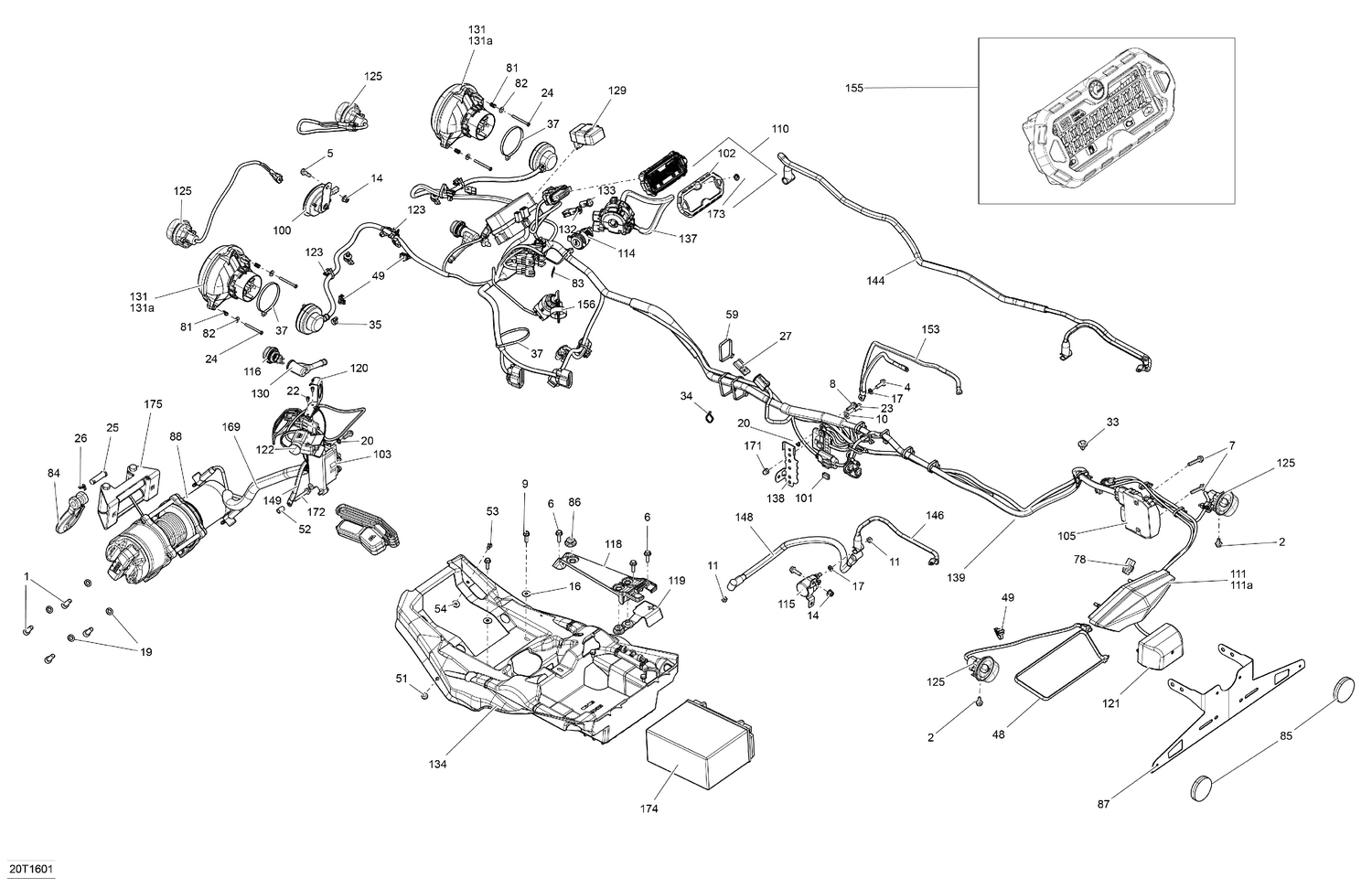

10- Electrical System - All Models
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 6 | 207662054 | Hex. Flange Screw M6 X 20 |
| 7 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 8 | 210262040 | Hex. Flange Screw M6 X 20 |
| 9 | 210262050 | Hexagonal Head Screw |
| 11 | 232561434 | Elastic Stop Nut M6 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 234062670 | Stainless Steel Flat Washer |
| 17 | 234161601 | Lock Washer Helical M6 |
| 20 | 234461608 | External Serrated Lock Washer 6 mm |
| 24 | 250000718 | Hex. Screw K40 X 45 |
| 27 | 270000141 | Clip |
| 33 | 293730040 | Mount Dart |
| 37 | 293750008 | Tie Wrap 368 mm |
| 51 | 293830005 | Rubber Bumper |
| 53 | 390402300 | Pop Rivet 3/16" |
| 54 | 391301600 | Washer |
| 59 | 414115200 | Tie-Rap 180 mm |
| 78 | 515175494 | Male Housing, 3 Circuits |
| 81 | 517168600 | Spring |
| 82 | 517225900 | Flat Washer |
| 86 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 102 | 710001183 | Trim Ring Ass'y |
| 110 | 710001183 | Trim Ring Ass'y |
| 111 | 710001203 | Tail Light Housing Ass'y |
| 111a | 520000758 | Bulb |
| 114 | 710001248 | DC Outlet |
| 115 | 710007777 | Starter Relay This part replaces 710001364. |
| 118 | 710009129 | Retaining Plate This part replaces 710002404. |
| 119 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 123 | 710002896 | Tie-Rap Clip |
| 131 | 710003900 | Low Beam |
| 131a | 710000871 | Bulb, 12V 35/35W |
| 134 | 710008370 | Battery Support This part replaces 710003990. |
| 146 | 710004376 | Positive Cable |
| 155 | 710005087 | Speedometer This part replaces 710005024. |
| 155a | 715900265 | Button |
| 157 | 710004595 | Wiring Harness Ass'y |
| 173 | 704904615 | BRP Logo13 mm |
| 174 | 410301203 | Battery YUASA YTX20L |
