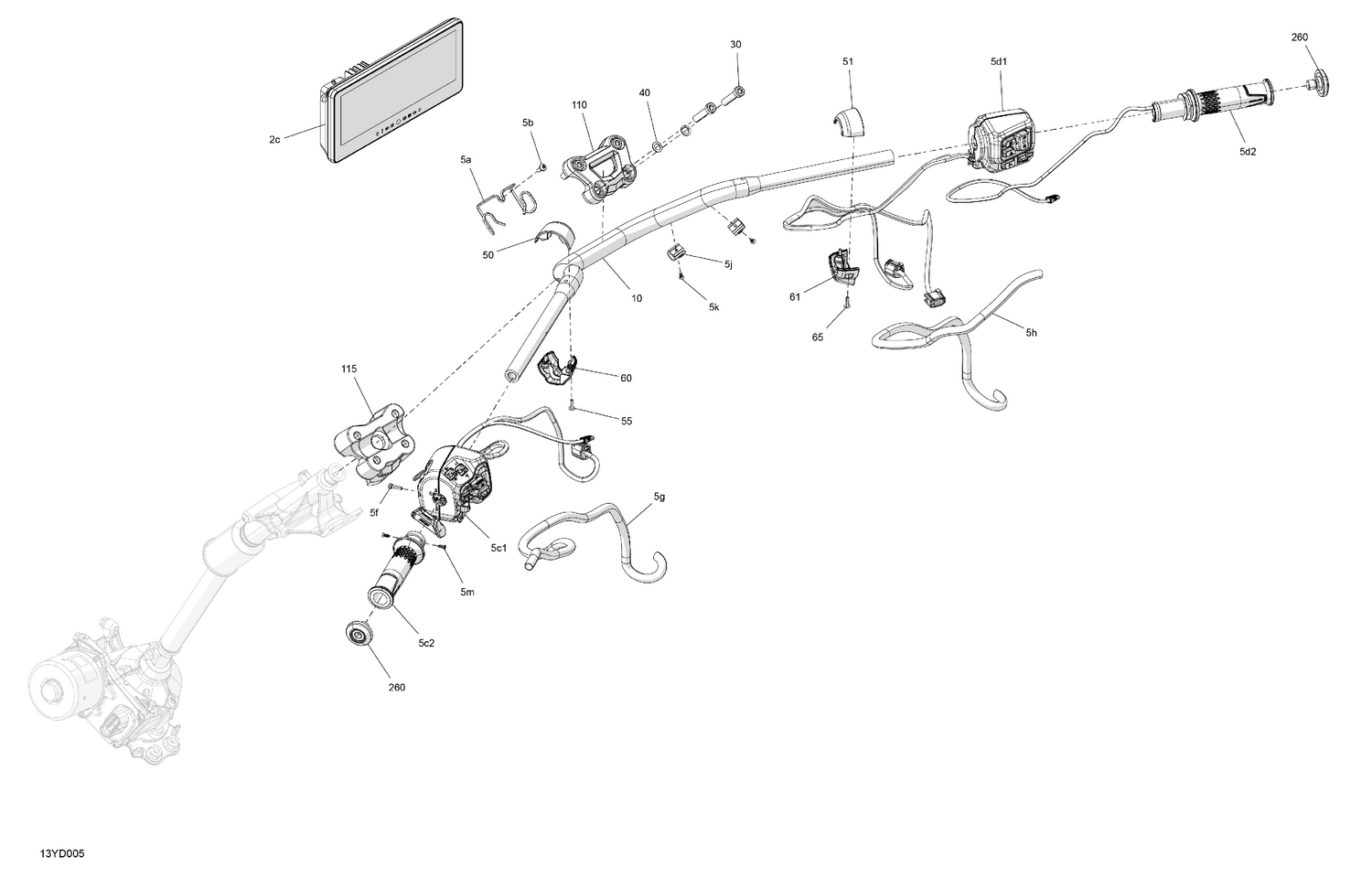

03- Mechanic - Handlebar
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2c | 710008093 | Touch Screen |
| 5a | 709402446 | Wiring Harness Support |
| 5b | 250000742 | Torx Screw M5 X 14 |
| 5c1 | 710008079 | LH Front Multifunction Switch Ass'y |
| 5c2 | 709402767 | LH Heated Handlebar Grip |
| 5d1 | 710008082 | RH Front Multifunction Switch Ass'y |
| 5d2 | 709402768 | RH Heated Handlebar Grip |
| 5f | 250000494 | Socket Screw, M4 X 16 Scotch Grip |
| 5g | 710004231 | Braided Sleeve |
| 5h | 710004231 | Braided Sleeve |
| 5j | 709401804 | Wire Guide |
| 5k | 250000453 | Torx Cutting Screw, M4 X 10 |
| 5m | 250000453 | Torx Cutting Screw, M4 X 10 |
| 10 | 709402697 | Carbon Black, Handlebar |
| 30 | 250000997 | Thin Socket Screw, Scotch Grip, M10 |
| 40 | 250200105 | Stainless Flat Washer, 10 mm |
| 50 | 709402943 | LH Upper Switch Trim |
| 51 | 709402957 | RH Upper Switch Trim |
| 55 | 250000759 | Torx Truss Pt K40 X 16 |
| 60 | 709402944 | LH Lower Switch Trim |
| 61 | 709402958 | RH Lower Switch Trim |
| 65 | 250000759 | Torx Truss Pt K40 X 16 |
| 110 | 709401904 | Black, Central Handle Clamp |
| 115 | 709401906 | Black, Central Handle Support |
