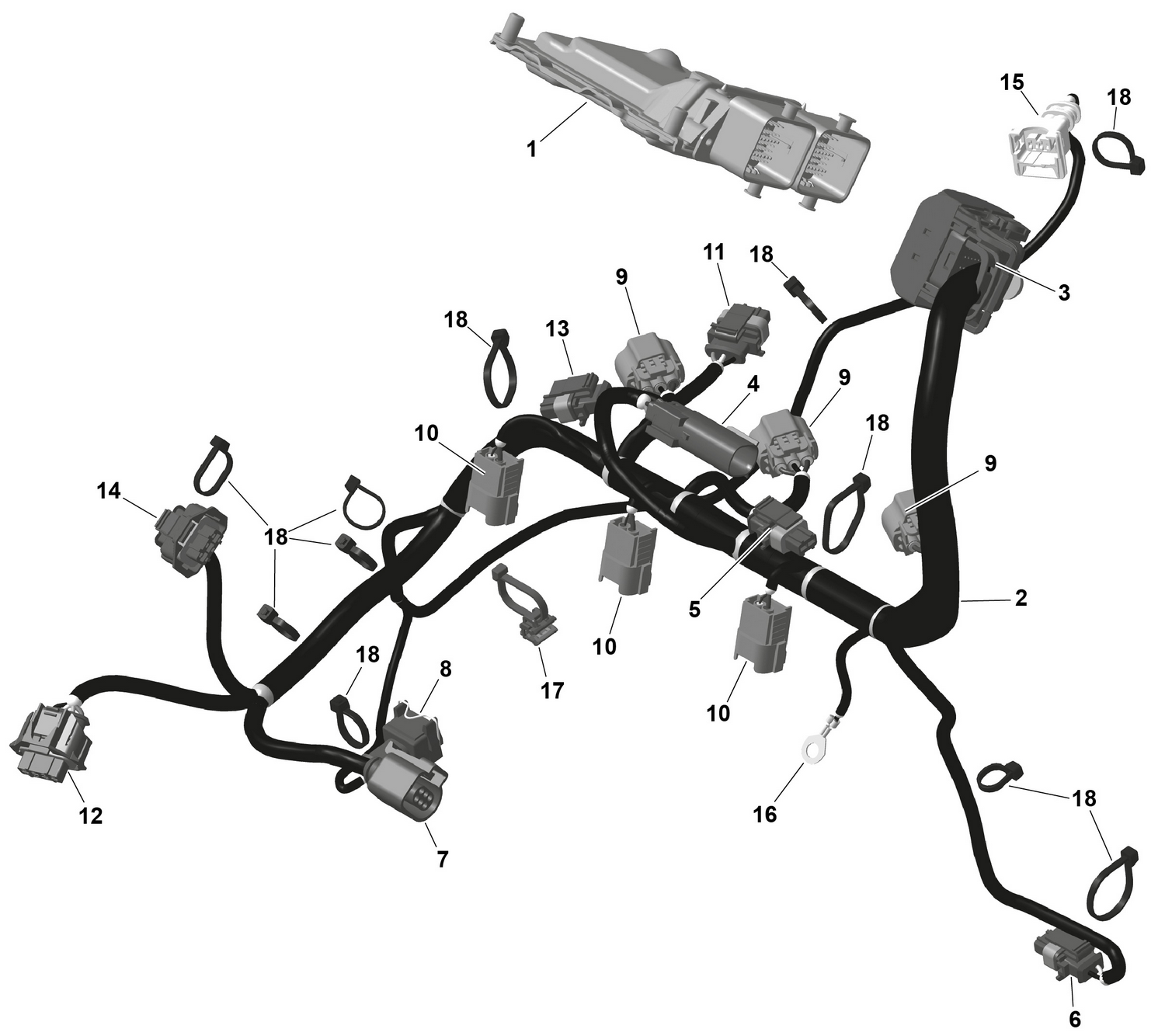

01- ROTAX - Engine Harness And Electronic Module
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420666557 | Wiring Harness Ass'y |
| 3 | XXX | Not Available As Spare Parts |
| 4 | 515178347 | Male Housing Connector 4 Pins |
| 5 | 278001005 | Male Housing, 2 Circuits |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 515177406 | Female Housing |
| 8 | 278001003 | Male Connector, 2 Circuits |
| 10 | 515176129 | Female Housing |
| 11 | 278003197 | Housing |
| 12 | 515176410 | Male Connector |
| 13 | XXX | Not Available As Spare Parts |
| 14 | 278001829 | Housing Connector, 3 Circuits |
| 15 | 415128500 | Female Terminal Housing, 2 Circuits |
| 16 | 278000992 | Open Barrel |
| 17 | 420951655 | Tie-Rap With Mount |
