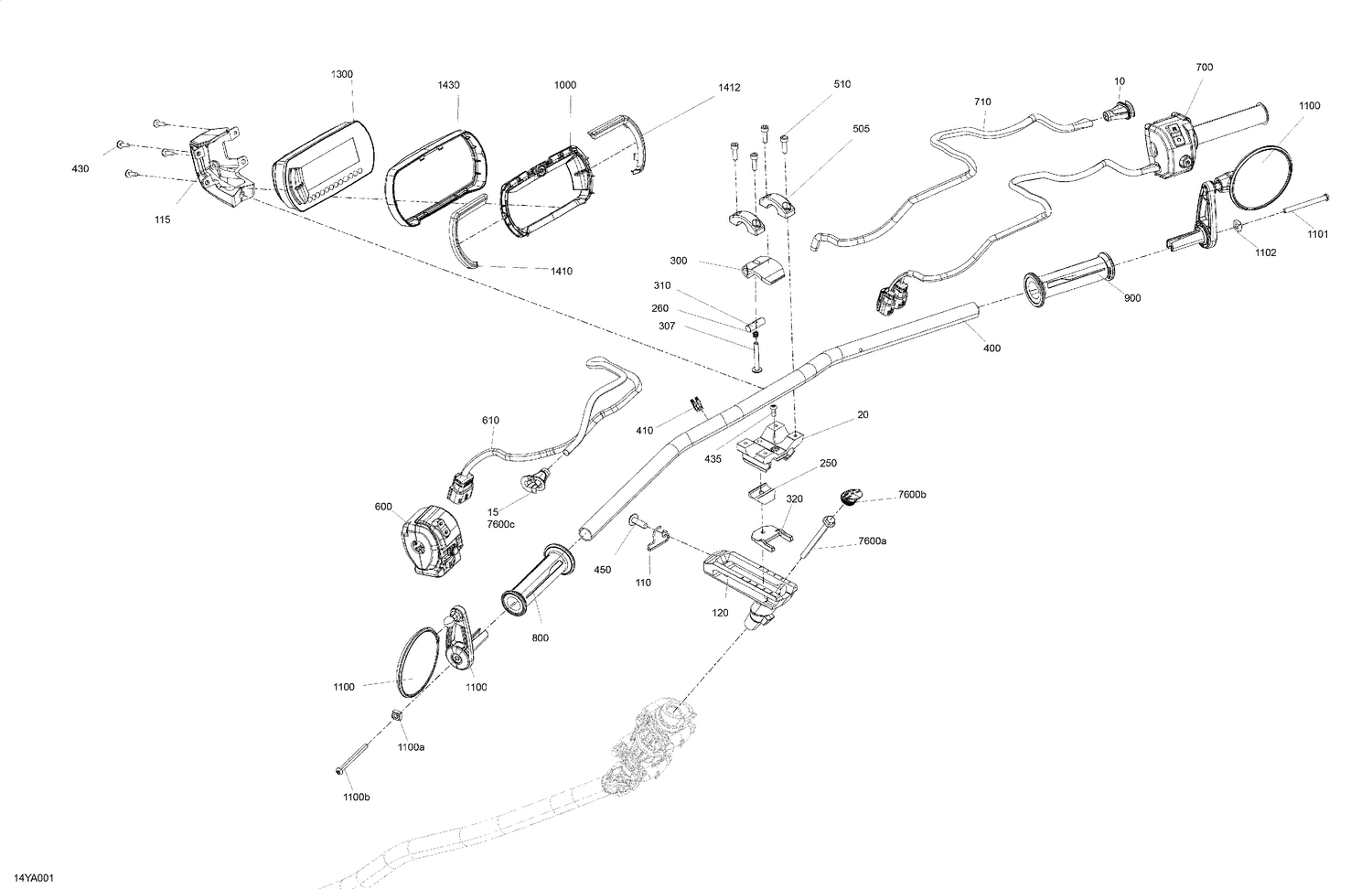

03- Mechanic - Handlebar
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402502 | Fairlead |
| 15 | 709402513 | Fairlead |
| 20 | 709402452 | Slide |
| 110 | 709402267 | Steel Cable Support |
| 115 | 709402243 | Deep Black, Cluster Support |
| 120 | 709402683 | Deep Black, Stem This part replaces 709402259. |
| 250 | 506153164 | Adjuster Block |
| 260 | 709402427 | Compression Spring |
| 300 | 709402279 | Deep Black, Release Lever |
| 307 | 709402444 | Torx-Truss Screw M6 X 45 |
| 310 | 709402454 | Pin Lever |
| 320 | 709402273 | Rocker Arm |
| 400 | 709402265 | Carbon Black, Handle Bar |
| 410 | 709402101 | Wire Guide |
| 430 | 250000720 | Torx Screw K50 X 16 |
| 435 | 235551454 | Screw-Torx Button Head M5 X 14 |
| 450 | 250000874 | Torx Truss M8 X 25 |
| 505 | 709402255 | Deep Black, Handle Bar Clamp |
| 510 | 205562054 | Socket Head Screw M6 X 20 S.Grip |
| 600 | 710007370 | LH Multifunction Switch |
| 610 | 415130141 | Braided Sleeve |
| 700 | 710007369 | RH Multifunction Switch & Twist Throttle |
| 710 | 415130141 | Braided Sleeve |
| 800 | 709401984 | LH Handle Grip |
| 900 | 709401985 | RH Handle Grip |
| 1000 | 709402742 | Gauge Trim This part replaces 709402093. |
| 1100a | 232862412 | Square Nut M6 |
| 1100b | 235567084 | Torx Screw Button Head M6 X 70 |
| 1101 | 235567084 | Torx Screw Button Head M6 X 70 |
| 1102 | 232862412 | Square Nut M6 |
| 1300 | 710005165 | Multifunction Gauge |
| 1410 | 709402210 | Deep Black, LH Trim Gauge |
| 1412 | 709402211 | Deep Black, RH Trim Gauge |
| 1430 | 709402092 | Rear Cluster Cap |
| 7600a | 230680054 | Hex. Flange Screw M8 X 100 |
| 7600b | 709402276 | Cap |
