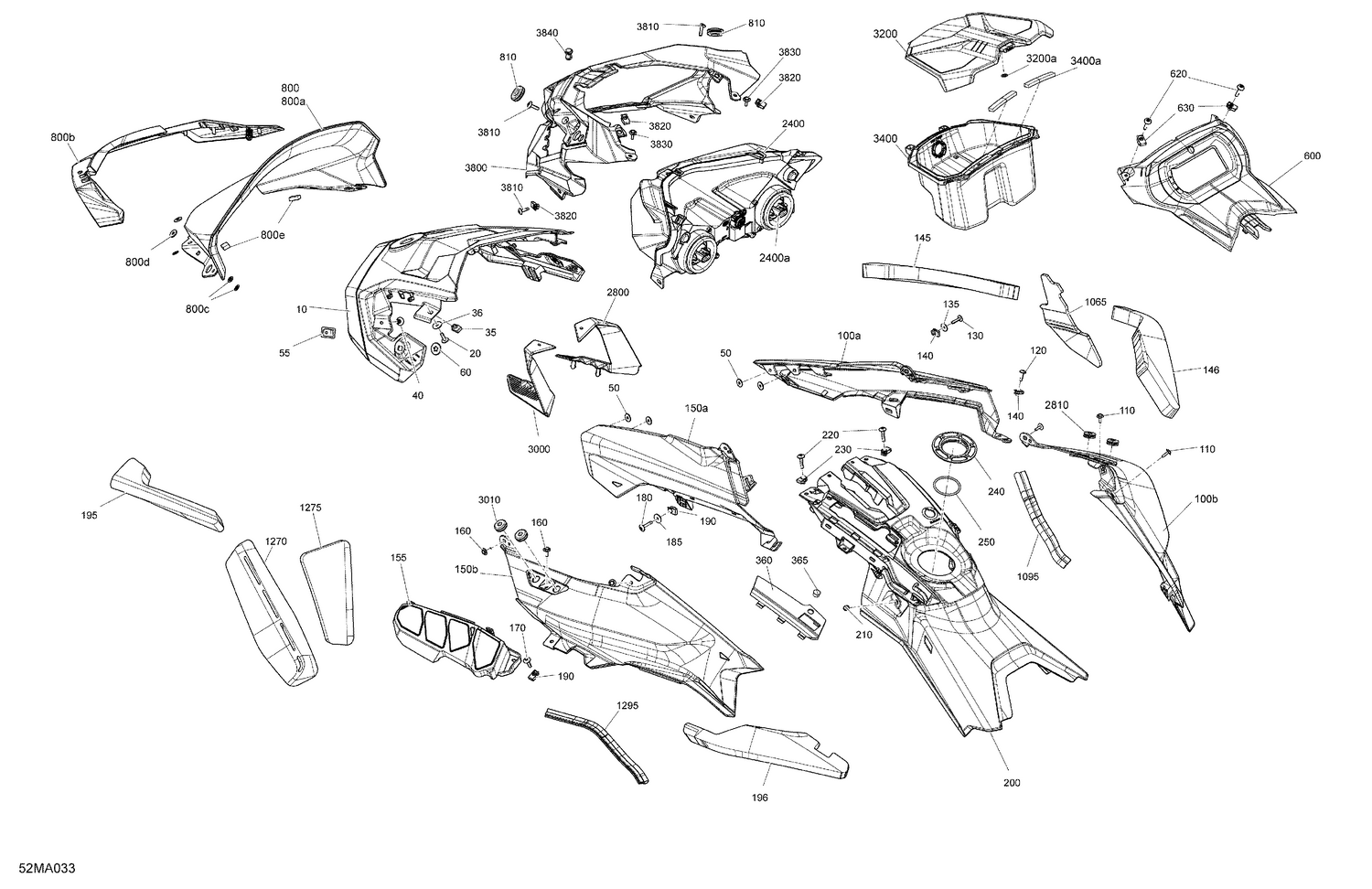

07- Body - Hood
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 517306288 | Deep Black, Center Hood |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 35 | 250000958 | Panel Nut M5 X 0.8 |
| 36 | 250200166 | Washer |
| 40 | 293150104 | Pop Rivet 3/16" |
| 50 | 517124300 | Washer |
| 55 | 517305109 | Rivet Plate |
| 60 | 508000853 | Push Nut |
| 100a | 517307040 | Sunburst Yellow, RH Front Hood |
| 100b | 517307041 | Sunburst Yellow, RH Rear Hood |
| 110 | 250000725 | Screw M4 X 16 |
| 120 | 250000528 | Torx Screw M5 X 20 |
| 130 | 250000587 | Torx Screw M5 X 26 |
| 135 | 250200166 | Washer |
| 140 | 250000958 | Panel Nut M5 X 0.8 |
| 145 | 517305763 | RH Front Hood Foam |
| 146 | 517306001 | RH Hood Foam |
| 150a | 517307043 | Sunburst Yellow, LH Front Hood |
| 150b | 517307044 | Sunburst Yellow, LH Rear Hood |
| 155 | 517306690 | LH Hood Trim |
| 160 | 250000725 | Screw M4 X 16 |
| 170 | 250000528 | Torx Screw M5 X 20 |
| 180 | 250000587 | Torx Screw M5 X 26 |
| 185 | 250200166 | Washer |
| 190 | 250000958 | Panel Nut M5 X 0.8 |
| 195 | 517305764 | LH Front Hood Foam |
| 196 | 517306002 | LH Hood Foam |
| 200 | 517307684 | Rear Console |
| 210 | 233251434 | Flange Elastic Nut M5 |
| 220 | 250000587 | Torx Screw M5 X 26 |
| 230 | 250000958 | Panel Nut M5 X 0.8 |
| 240 | 517306602 | Console Nut |
| 250 | 706002839 | O-Ring |
| 360 | 517306582 | LH Front Console |
| 365 | 572051500 | Cap |
| 600 | 517307675 | Gauge Support |
| 620 | 250000587 | Torx Screw M5 X 26 |
| 630 | 250000958 | Panel Nut M5 X 0.8 |
| 800a | 517306423 | Windshield 360 |
| 800b | 517305749 | Deep Black, Windshield Support |
| 800c | 732610072 | Push Nut |
| 800d | 250200024 | Rubber Washer 5 mm |
| 800e | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 810 | 517303756 | Grommet |
| 1065 | 517306495 | Foam |
| 1095 | 219704371 | Neoprene Seal 3000 mm Long |
| 1270 | 517306465 | Foam |
| 1275 | 517306496 | LH Rear Panel Foam |
| 1295 | 219704371 | Neoprene Seal 3000 mm Long |
| 2400a | 415130081 | Bulb |
| 2800 | 517305776 | RH Deflector Black 63% Light Transm. |
| 2810 | 517307161 | Grommet |
| 3000 | 517305777 | Deflector LH, Black 63% Light Transm. |
| 3010 | 517307161 | Grommet |
| 3200a | 732610072 | Push Nut |
| 3400a | 517305157 | Seal Joint |
| 3800 | 517306301 | Headlamp Fairing |
| 3810 | 250000528 | Torx Screw M5 X 20 |
| 3820 | 250000958 | Panel Nut M5 X 0.8 |
| 3830 | 250000725 | Screw M4 X 16 |
