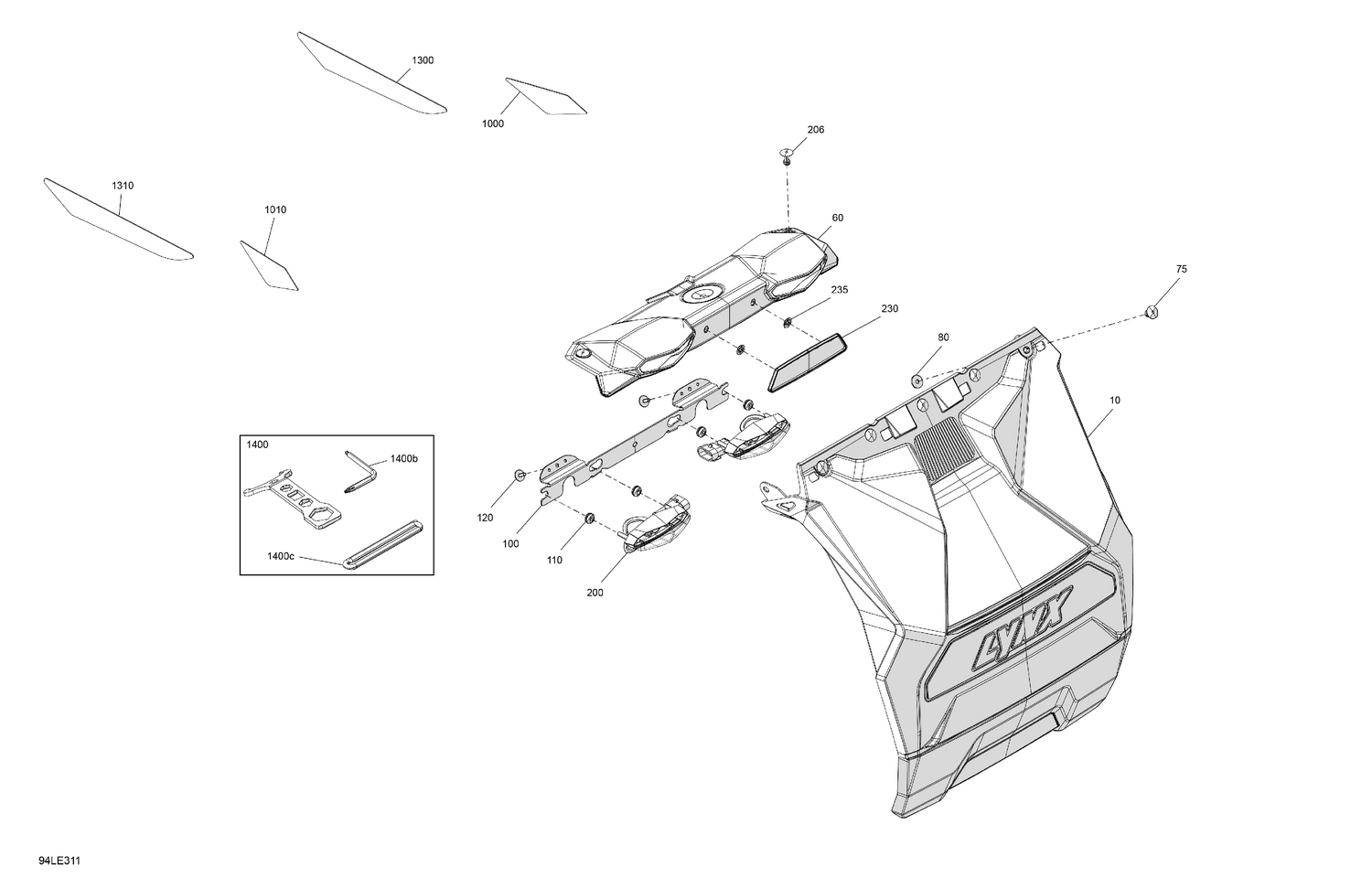

09- Miscellaneous - Utilities
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001645 | Snow Guard |
| 60 | 520001701 | Light Fairing |
| 75 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 80 | 517124300 | Washer |
| 100 | 520001773 | Rear Light Support Plate |
| 110 | 293720101 | Grommet |
| 120 | 250000805 | Plastite Screw M4 X 10 |
| 200 | 520003188 | Tail Light |
| 206 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 230 | 705015952 | Rear Reflector |
| 235 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 520001900 | Red, RH Rear Reflector |
| 1310 | 520001901 | Red, LH Rear Reflector |
| 1400b | 520001815 | Key |
