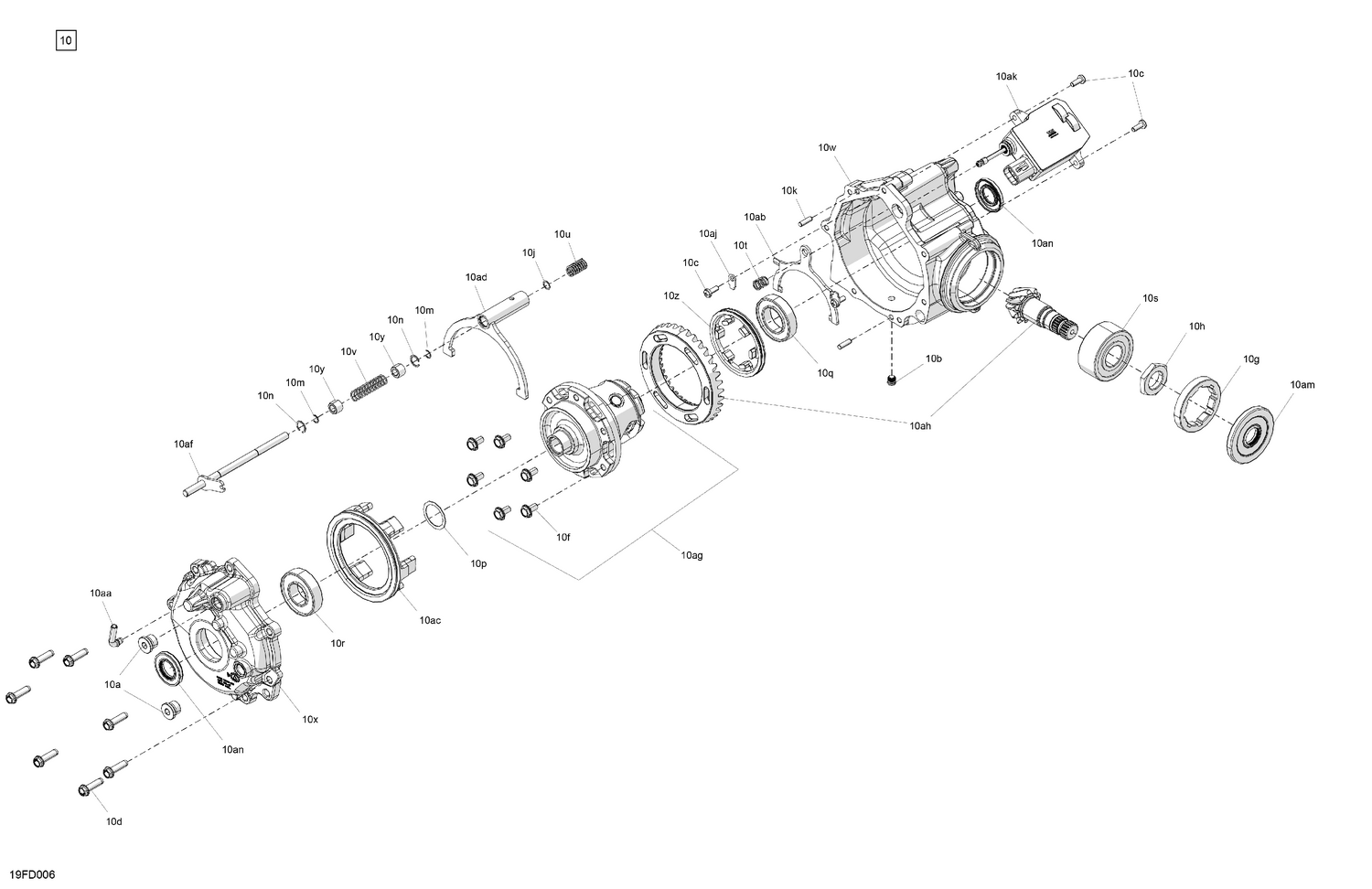

04- Drive - Front - Differential Parts
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 705501889 | Fill Level Plug |
| 10aa | 705401935 | Vent Valve |
| 10ab | 715900807 | Front Differential Pivot Fork |
| 10ac | 715900819 | Ring Gear Connector |
| 10ad | 715900727 | Disconnect Fork |
| 10af | 715900728 | Shift Rail |
| 10ag | 715900832 | Differential Sub-Assembly |
| 10ah | 715900820 | Ring Gear And Pinion Set |
| 10aj | 715900766 | Retainer Fork |
| 10ak | 715900952 | Actuator This part replaces 715900815. |
| 10am | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 10b | 715900563 | Fill Level Plug M10 |
| 10c | 705402845 | Torx Screw M6 X 16 |
| 10d | 705501886 | Bolt |
| 10f | 715900798 | Custom Hex Screw Flange Head |
| 10g | 705401819 | Nut M75 X 1.5 |
| 10h | 705401820 | Nut M27 X 1.5 |
| 10j | 715900801 | Thrust Washer |
| 10k | 715900559 | Dowel Pin |
| 10m | 715900719 | Ring External Shaft |
| 10n | 715900720 | Ring, Internal Spiral Housing |
| 10p | 705401604 | Shim |
| 10q | 705402847 | Ball Bearing |
| 10r | 705401606 | Ball Bearing |
| 10s | 715900721 | Ball Bearing |
| 10t | 715900802 | Compression Spring |
| 10u | 715900803 | Locker Spring |
| 10v | 715900722 | Spring |
| 10w | 715900830 | Case |
| 10x | 715900831 | Cover |
| 10y | 715900725 | Bushing |
| 10z | 715900806 | Dog Lock |
