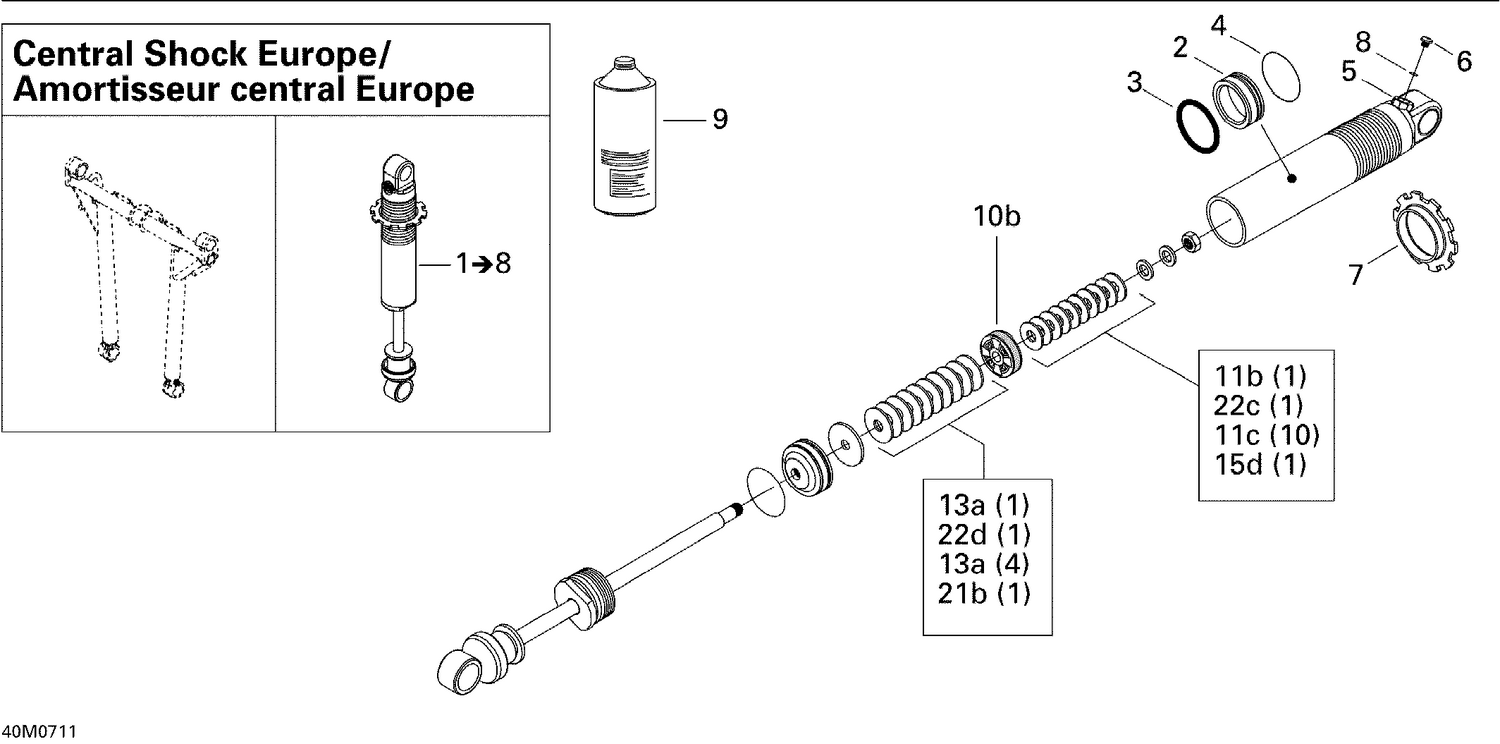

| Ref | Part Number | Description |
|---|
| 2 |
503189309 |
FREE PISTON - Call your local BRP dealership |
| 3 |
414888312 |
O-Ring |
| 4 |
503189308 |
Piston Ring |
| 5 |
505070398 |
Air Valve |
| 6 |
505070399 |
Screw |
| 7 |
414888316 |
SPRING COLLAR - Call your local BRP dealership |
| 8 |
505070400 |
O-Ring |
| 9 |
293600035 |
Shock Oil, 1 Liter |
| 10b |
Not |
Available As Spare Part - Piston (2 X 0.3-1) (C36) |
| 11b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 11c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 13a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 15d |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36) |
| 21b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 22c |
Not |
Available As Spare Part - Leaf Valve Ø15 X 0.152 (C36) |
