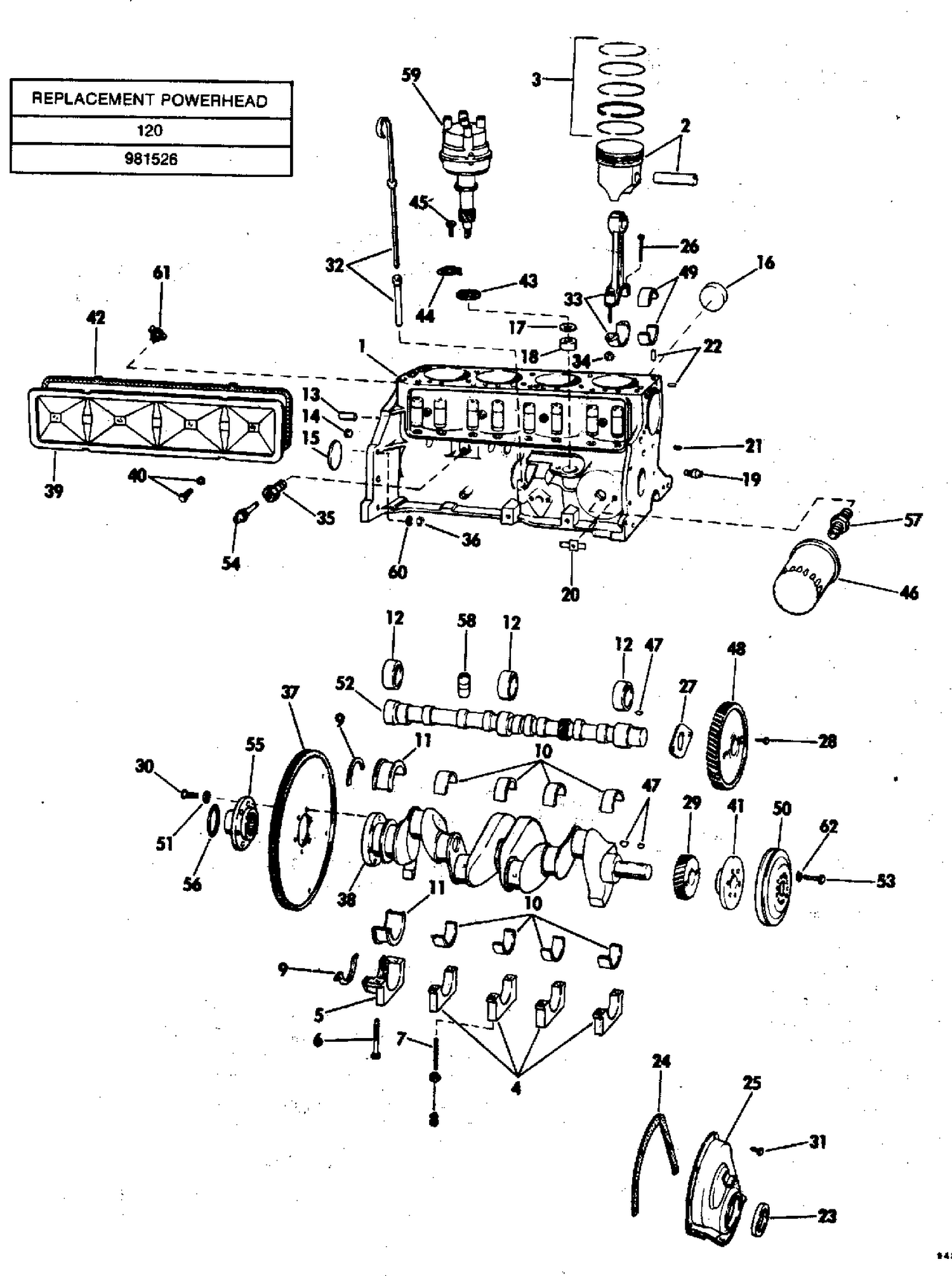

| Ref | Part Number | Description |
|---|
| 1 |
0347061 |
CRANKCASE ASSEMBLY |
| 2 |
3860413 |
PISTON & PIN, .001 inch o.s. |
| 2 |
3860426 |
PISTON & PIN, .030 inch o.s. |
| 3 |
0326400 |
PISTON RING SET, Std |
| 3 |
0328503 |
PISTON RING SET, .030" O.S. |
| 4 |
3970194 |
CAP, Crankshaft bearing |
| 5 |
3928975 |
CAP, Crankshaft bearing |
| 6 |
3872781 |
BOLT, 7/16 x 3-9/32 |
| 7 |
3872718 |
STUD #3 BEARING CAP |
| 8 |
9422297 |
NUT, 3/8-16 |
| 9 |
0473424 |
OIL SEAL SET, Crankshaft rear baering |
| 10 |
3829061 |
BRG AASY,Exc rear,std |
| 10 |
3829062 |
BRG ASSY, Exc rear, .001 U.S. |
| 10 |
3829063 |
BRG ASSY, Exc rear, .002'' U.S. |
| 10 |
3829064 |
BRG ASSY, Exc rear, .010" U.S. |
| 10 |
3829065 |
BRG ASSY, Exc rear, .020" U.S. |
| 10 |
3829066 |
BRG ASSY EXC REAR, .030'' U.S. |
| 11 |
3829067 |
BRG ASSY, Rear, std |
| 11 |
3829068 |
BRG ASSY, Rear, .001" U.S. |
| 11 |
3829069 |
BRG ASSY, Exc rear, .020" U.S. |
| 11 |
3829070 |
BRG ASSY, Rear 0010 |
| 11 |
3829071 |
BRG ASSY, Rear, .020" U.S. |
| 11 |
3829072 |
BRG ASSY, Rear 0.030" U.S. |
| 12 |
3750884 |
BEARING CAMSHAFT,Front and center |
| 13 |
3712745 |
DOWEL PIN |
| 14 |
0444782 |
PLUG, 3/8 |
| 15 |
3704158 |
PLUG, Camshaft bearing, rear |
| 16 |
0311376 |
CORE PLUG, Side |
| 16 |
0311377 |
CORE PLUG, Rear |
| 17 |
3792285 |
THRUST WAHSER |
| 18 |
3792286 |
BEARING, Shaft pilot |
| 19 |
3875950 |
NOZZEL, Timing gear oil |
| 20 |
5575416 |
BY-PASS VALVE,Oil filter |
| 21 |
3835577 |
PLUG Cylinder and crankcase main oil gallery - front hole |
| 22 |
0585927 |
DOWEL PIN |
| 23 |
3980267 |
SEAL |
| 24 |
3923472 |
GASKET, Front crankcase cover |
| 25 |
3996616 |
COVER ASSY, Crankshaft, front |
| 26 |
5249073 |
Grooved Pin This part replaces 0460405. |
| 27 |
3790531 |
BEARING, Thrust unit |
| 28 |
3817006 |
BOLT, Camshaft sprocket |
| 29 |
3882892 |
GEAR, Crankshaft |
| 30 |
0908375 |
BOLT, Flywheel |
| 31 |
3817006 |
BOLT, Camshaft sprocket |
| 32 |
3850524 |
OIL LEVEL GAUGE & TUBE ASSY This part replaces 0381927. |
| 33 |
0370799 |
CONNECTING ROD & CAP ASSY |
| 34 |
3815280 |
NUT, Conn rod, 11/16-24 |
| 35 |
3855776 |
ADAPTER, Oil sender This part replaces 0121688. |
| 37 |
2778809 |
FLYWHEEL ASEMBLY |
| 38 |
5743124 |
CRANKSHAFT ASSEMBLY |
| 39 |
10014469 |
COVER, Push rod |
| 40 |
3814350 |
BOLT & SEAL ASSEMBLY |
| 41 |
0908616 |
HUB, Crankshaft pulley |
| 42 |
3923469 |
GASKET, Push rod cover |
| 43 |
6256636 |
GASKET, Distributor |
| 44 |
0355780 |
CLAMP, Distributor |
| 45 |
0454905 |
BOLT, Distributor |
| 46 |
0173232 |
OIL FILTER |
| 47 |
0106751 |
KEY, Wdf, 3/16" x 3/4" |
| 48 |
3852452 |
GEAR, Camshaft timing This part replaces 0908613. |
| 49 |
0463259 |
ROD BEARING, Std |
| 49 |
0463319 |
ROD BEARING, 0.001 inch u.s. |
| 49 |
0463320 |
ROD BEARING, 0.002 inch u.s. |
| 50 |
3793717 |
PULLEY, Crankshaft |
| 51 |
0316959 |
L'WASHER,Screw,coupling |
| 52 |
0380343 |
CAMSHAFT ASSEMBLY |
| 53 |
0181593 |
BOLT, Pulley |
| 53 |
3793100 |
SCREW, Pulley |
| 54 |
3853800 |
OIL PRESSURE SENDER This part replaces 0982650. |
| 55 |
0980994 |
COUPLING & O-RING ASSY |
| 56 |
0909567 |
O-RING |
| 57 |
3853870 |
CONNECTOR, Oil filter |
| 58 |
5232450 |
VALVE FILTER |
| 59 |
0982351 |
DISTRIBUTOR ASSEMBLY |
| 61 |
0379957 |
PETCHOCK ASSY, Water drain |
