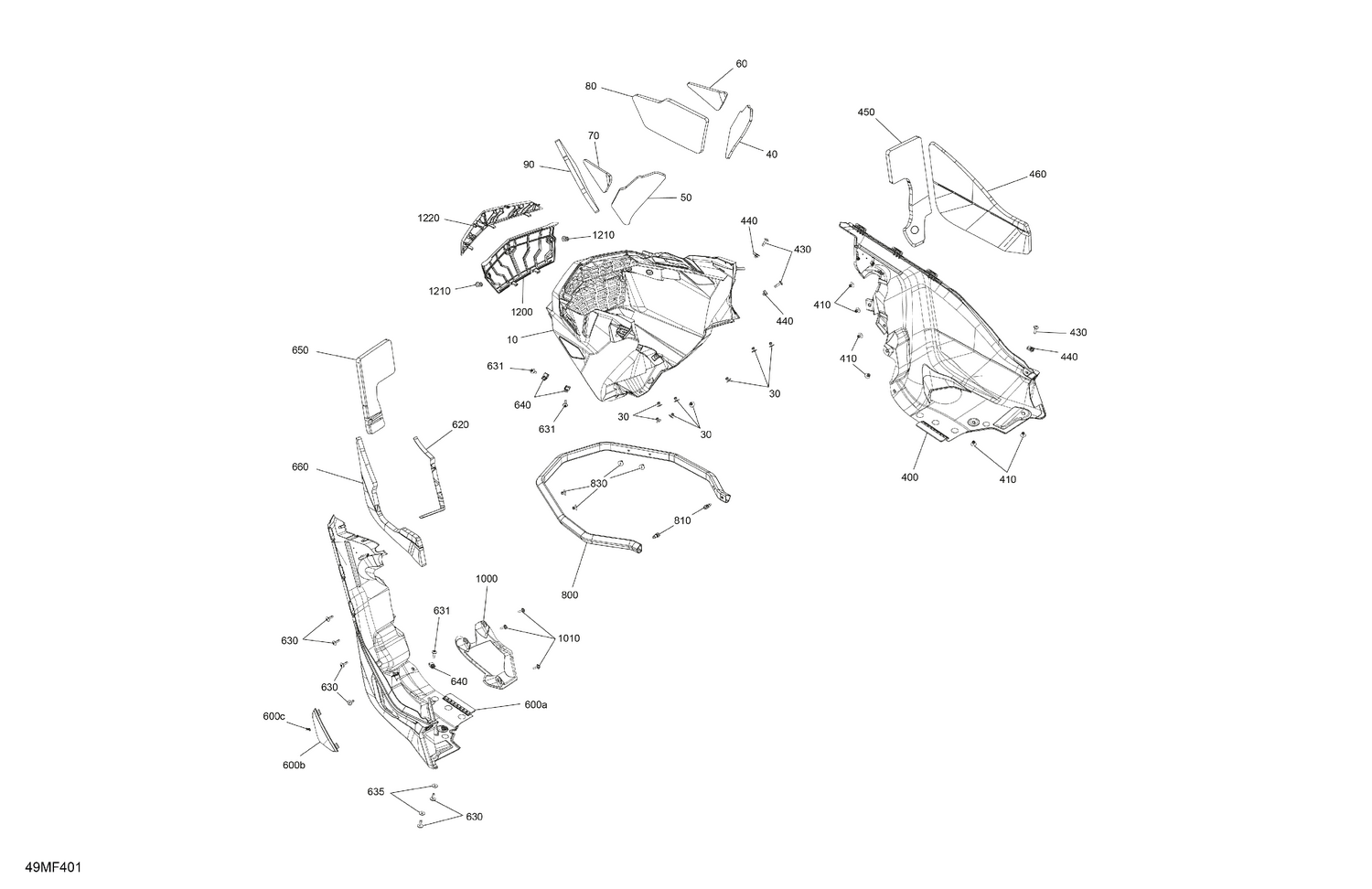

07- Body - Bottom Pan
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 502008329 | Front Bottom Pan |
| 30 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 40 | 502007788 | RH Upper Bottom Pan Foam |
| 50 | 502007789 | LH Upper Bottom Pan Foam |
| 60 | 502007545 | RH Bottom Pan Central Foam |
| 70 | 502007546 | LH Bottom Pan Central Foam |
| 80 | 502007800 | RH Lower Bottom Pan Foam |
| 90 | 502007799 | LH Lower Bottom Pan Foam |
| 400 | 502008604 | RH Bottom Pan |
| 410 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 430 | 250000586 | Torx Truss M5 X 20 |
| 440 | 250000958 | Panel Nut M5 X 0.8 |
| 450 | 502007547 | RH Bottom Pan Upper Foam |
| 460 | 502007548 | RH Bottom Pan Lower Foam |
| 600a | 502008332 | LH Bottom Pan |
| 600b | 502008333 | Bottom Pan Door |
| 600c | 269800431 | Hairpin Cotter |
| 620 | 219704364 | Neoprene Seal (1PAC=3M) |
| 630 | 250001232 | Screw Torx M5 X 20 |
| 631 | 250000586 | Torx Truss M5 X 20 |
| 635 | 250200025 | Washer M5 |
| 640 | 250000958 | Panel Nut M5 X 0.8 |
| 650 | 502007549 | LH Bottom Pan Upper Foam |
| 660 | 502007550 | LH Bottom Pan Lower Foam |
| 800 | 502007460 | Front Bumper |
| 810 | 207552044 | Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 1000 | 502007670 | Protection Plate |
| 1010 | 250000725 | Screw M4 X 16 |
| 1200 | 502008674 | Lower Prefilter Grille |
| 1210 | 293150230 | Tuflok Plastic Rivet |
