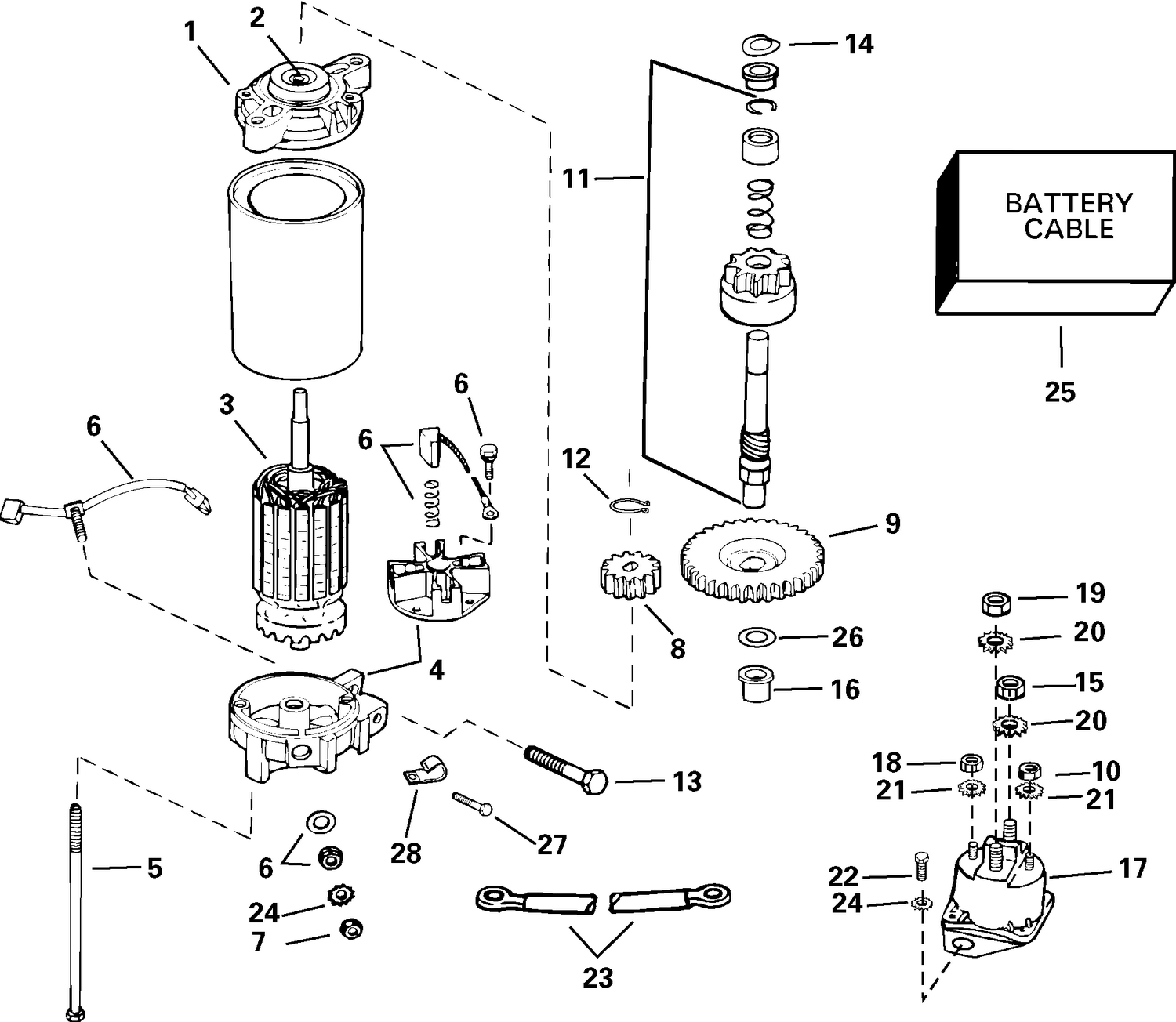

ELECTRIC STARTER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 0342881 | GEAR, Drive, starter |
| 9 | 0342880 | GEAR, Pinion & shaft |
| 11 | 5004518 | PINION & SHAFT Assy |
| 12 | 0513398 | ANNEAU DE RETENUE, pignon d'attaque |
| 13 | 0322000 | SCREW, Starter to crankcase |
| 17 | 0586842 | SOLENOID This part replaces 0586730. |
| 23 | 0586149 | CABLE Assy, Solenoid to starter |
| 26 | 0349767 | WASHER, Thrust |
| 0586287 | ENSEMBLE | MOTEUR DE DÉMARREUR 0586287 |
| 0586287 | STARTER | MOTOR Assy 0586287 |
