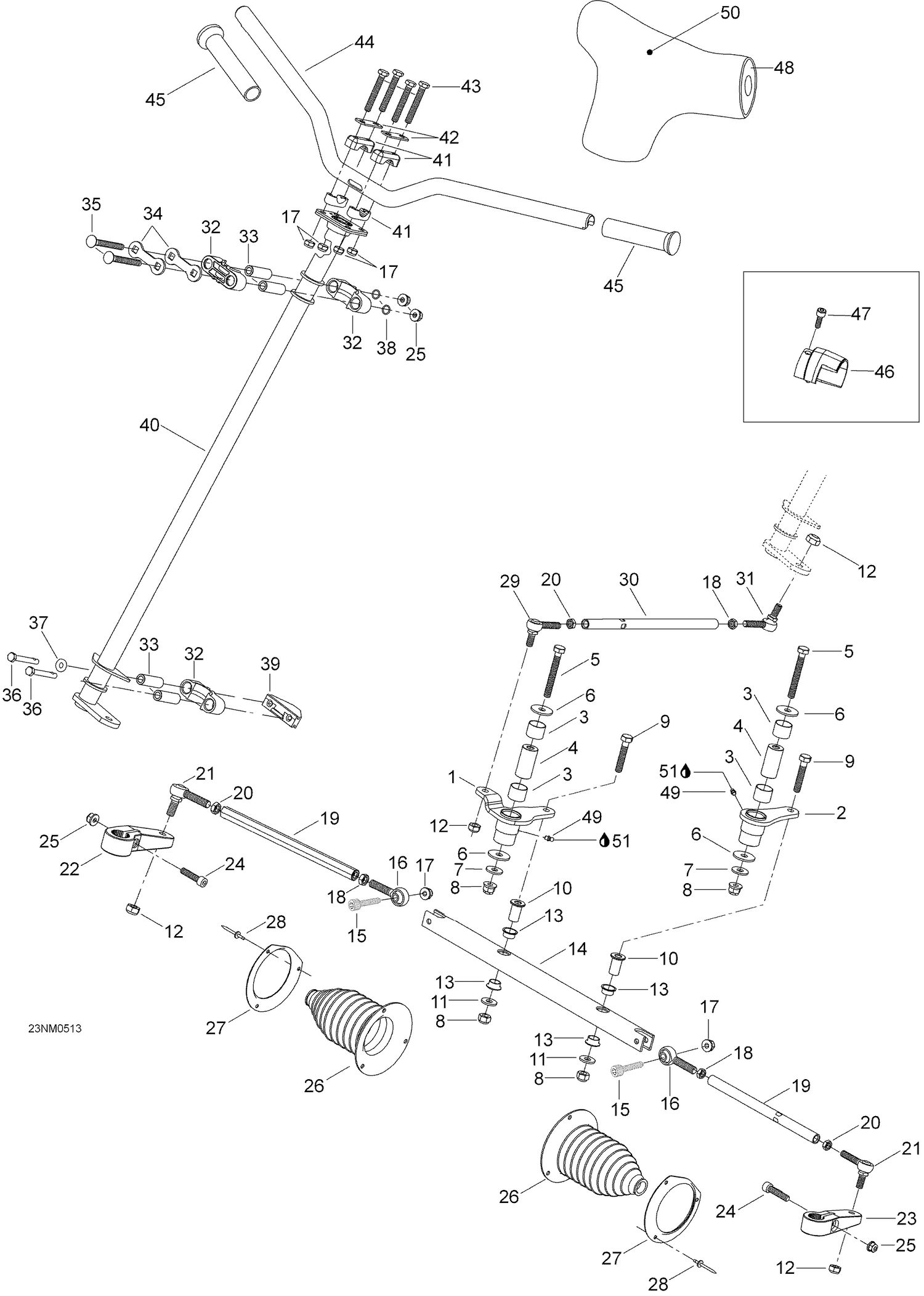

| Ref | Part Number | Description |
|---|
| 1 |
506151360 |
RH SWIVEL ARM - Call your local BRP dealership |
| 2 |
506151623 |
LH SWIVEL ARM - Call your local BRP dealership |
| 3 |
506149900 |
BUSHING SWIVEL - Call your local BRP dealership |
| 4 |
506150100 |
PIVOT SWIVEL - Call your local BRP dealership |
| 5 |
40229 |
Hex. screw M10 x 80 |
| 6 |
20080 |
Washer |
| 7 |
20101 |
Washer, hardened M10 |
| 8 |
33012 |
Elastic stop nut M10 |
| 9 |
40018 |
Hex. screw M10 x 55 |
| 10 |
506147300 |
BAR PIVOT - Call your local BRP dealership |
| 11 |
20028 |
Washer |
| 12 |
33023 |
Nut elastic M10 |
| 13 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 14 |
605249324 |
Bar-swivel |
| 15 |
40395 |
Allen screw M8 x 35 |
| 16 |
506151496 |
LH BALL JOINT - Call your local BRP dealership |
| 17 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 19 |
5346200 |
Tie Rod |
| 20 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 21 |
506151491 |
R.H. Joint ball |
| 22 |
506145800 |
RH STEERING ARM - Call your local BRP dealership |
| 23 |
506145900 |
LH STEERING ARM - Call your local BRP dealership |
| 24 |
40843 |
Socket head screw M8 x 35 |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 26 |
570070500 |
TIE-ROD CAP - Call your local BRP dealership |
| 27 |
5347006 |
Retainer ring |
| 28 |
36009 |
Rivet |
| 29 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 30 |
506151375 |
TIE-ROD - Call your local BRP dealership |
| 31 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 32 |
506150400 |
Half housing |
| 33 |
506150500 |
Housing bushing |
| 34 |
506150600 |
Stopper plate |
| 35 |
207787044 |
Carriage bolt M8 x 70 |
| 36 |
250000105 |
HEX. SCREW WITH NYLON - Call your local BRP dealership |
| 37 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 38 |
506151140 |
O-RING - Call your local BRP dealership |
| 39 |
506151582 |
Support |
| 40 |
506151363 |
TUBE - Call your local BRP dealership |
| 41 |
709400919 |
Steering Support This part replaces 506151622. |
| 42 |
709400509 |
Stiffner This part replaces 506151196. |
| 43 |
40010 |
Hex. screw M8 x 55 |
| 44 |
605249302 |
Handle bar |
| 45 |
5340464 |
Grip |
| 46 |
506151566 |
ADAPTATOR - Call your local BRP dealership |
| 47 |
40390 |
Screw M8 x 20 |
| 48 |
605349232 |
Foam, front |
| 48 |
605349233 |
Foam, rear |
| 49 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 50 |
605349234 |
Cover |
