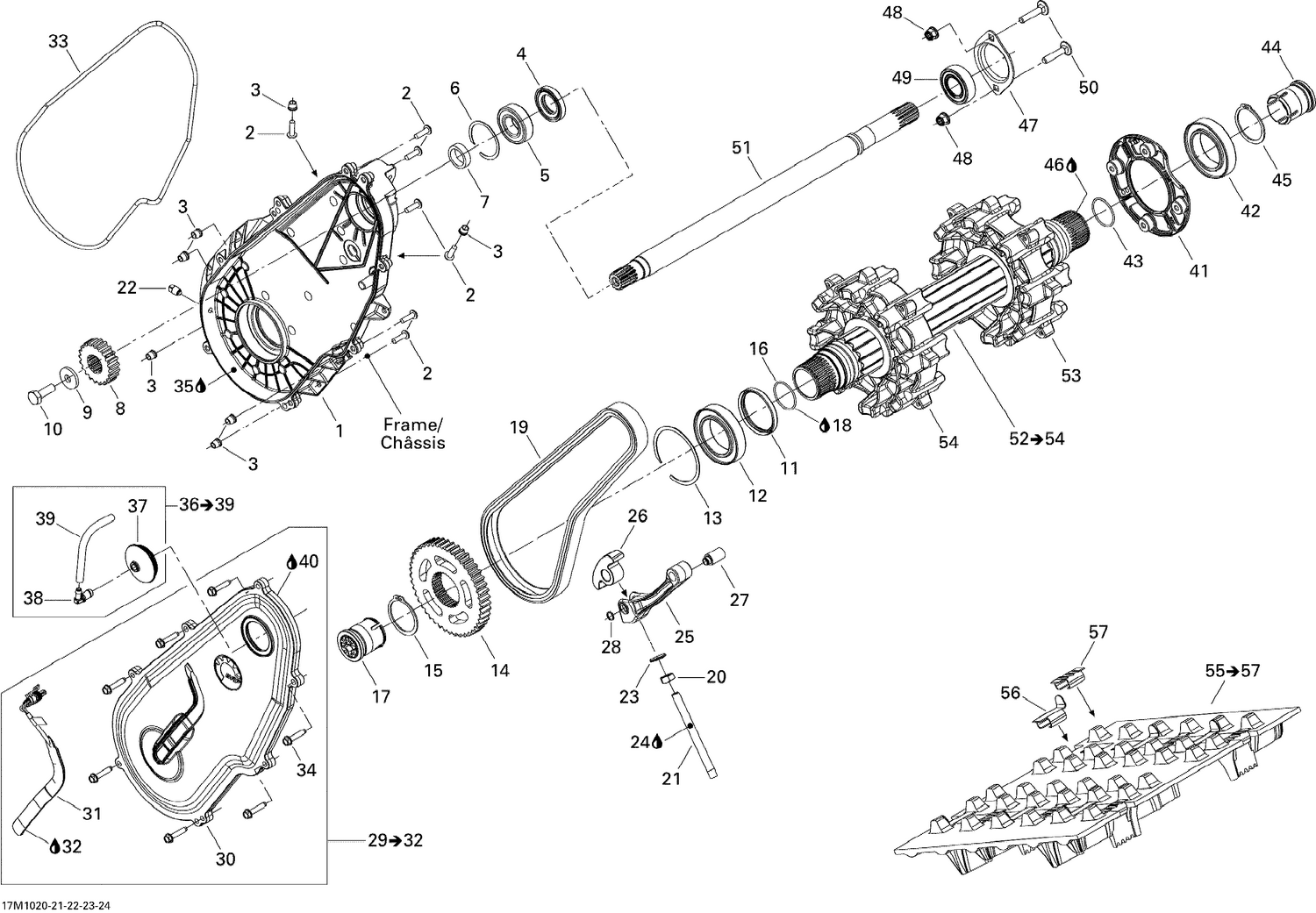

| Ref | Part Number | Description |
|---|
| 1 |
504153181 |
Chaincase This part replaces 504152914. |
| 2 |
207662034 |
Hex. Flange Screw M6 X 20 |
| 3 |
233261434 |
Flange Elastic Nut M6 |
| 4 |
293200168 |
Oil Seal This part replaces 293250175. |
| 5 |
293350115 |
Ball Bearing This part replaces 293350055. |
| 6 |
504152576 |
Circlip |
| 7 |
504152628 |
Shim |
| 8 |
504152031 |
Sprocket, 19 Teeth |
| 9 |
504152784 |
Spring Washer M10 |
| 10 |
207103044 |
Hex. Screw M10 X 30 |
| 11 |
293200159 |
Oil Seal This part replaces 504152571. |
| 12 |
293350059 |
Ball Bearing This part replaces 504152573. |
| 13 |
504152582 |
Circlip |
| 14 |
861805538 |
Kit Sprocket This part replaces 504152593. |
| 15 |
504152572 |
Circlip |
| 16 |
293300122 |
O-Ring |
| 17 |
504152619 |
Magnetic Cap |
| 18 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 19 |
504152579 |
Drive Chain, 102 Links |
| 20 |
232006414 |
Hex. Nut M10 X 1.5 |
| 21 |
504152602 |
Adjustment Screw |
| 22 |
504152636 |
Magnetic Plug 1/8 - 27 NPTF |
| 23 |
250200100 |
Bonded Washer |
| 24 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 25 |
504153429 |
Tensioner chain This part replaces 504152685. |
| 26 |
504152739 |
Slider Chain |
| 27 |
504152841 |
Tensioner Axle |
| 28 |
504152282 |
Circlip |
| 30 |
504153151 |
Casting Cover This part replaces 504152917. |
| 31 |
504152896 |
Rotation Sensor |
| 32 |
219704460 |
Was 293800066 Sealant Loctite 5900, 300 ml |
| 33 |
293300130 |
Tight Seal |
| 34 |
250000360 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 35 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 37 |
504152860 |
Cap |
| 38 |
414580700 |
Male Connector |
| 39 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 40 |
413803300 |
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 41 |
504153886 |
Retaining Ring This part replaces 504152949. |
| 42 |
293350059 |
Ball Bearing |
| 43 |
293300122 |
O-Ring |
| 44 |
504152619 |
Magnetic Cap |
| 45 |
504152572 |
Circlip |
| 46 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 47 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 48 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 49 |
415129555 |
Ball Bearing Kit This part replaces 504152535. |
| 50 |
207784044 |
Bolt Carriage M8 X 40 |
| 51 |
504152851 |
COUNTER SHAFT - Call your local BRP dealership |
| 53 |
Not |
Available As Spare Part - Sprocket, 8 Teeth |
| 54 |
Not |
Available As Spare Part - Sprocket, 8 Teeth |
