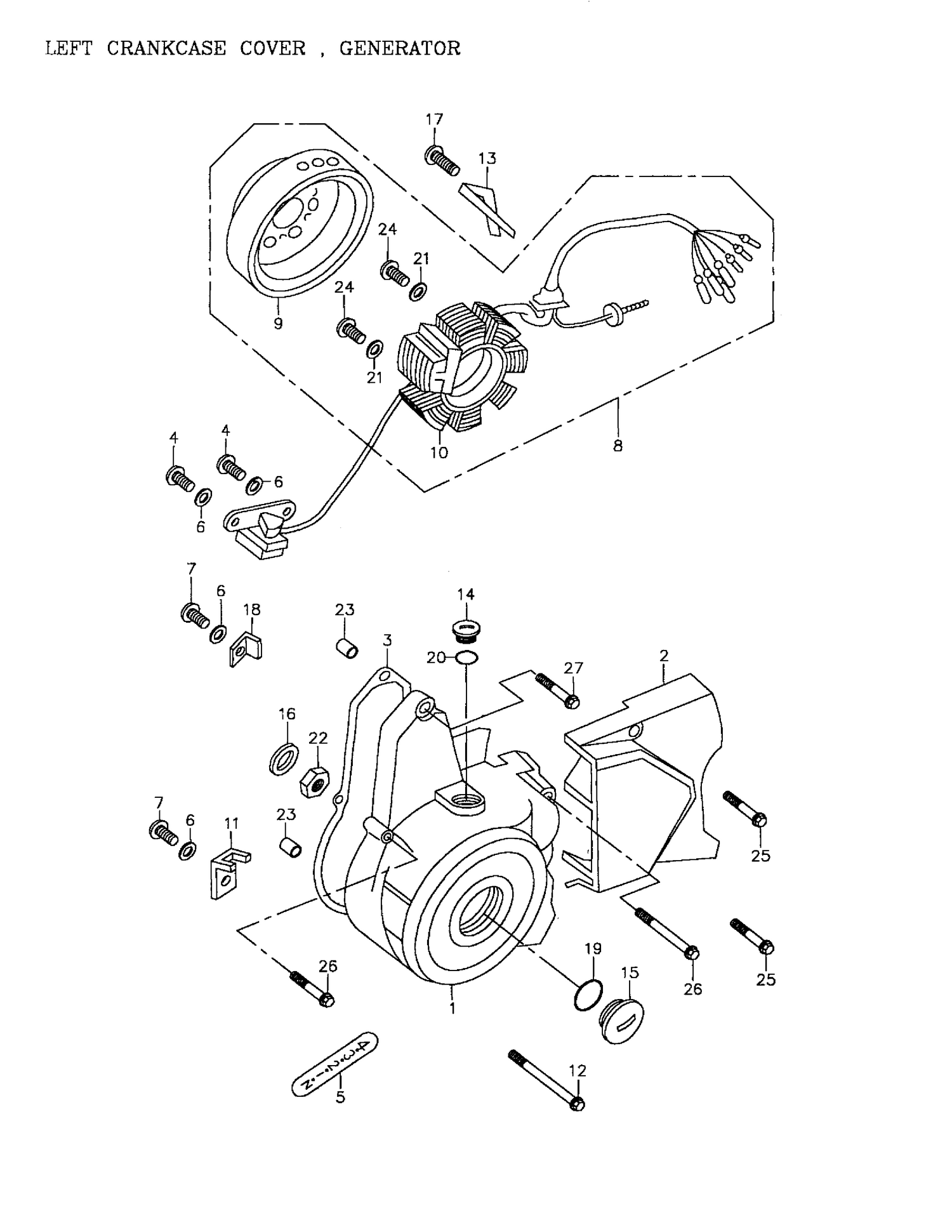

01- Left Crankcase Cover, Generator 172a-07
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A11341152000 | LH Crankcase Cover |
| 2 | A11361152000 | LH CRANKCASE REAR COVER - Call your local BRP dealership |
| 3 | A11359152000 | LH COVER GASKET - Call your local BRP dealership |
| 4 | A9350005010 | Pan Head Phillips Bolt M5 X 10 |
| 5 | A87710152000 | Shaft Sticker |
| 6 | A941110508010 | Spring Washer, 5 X 8 X 1 |
| 7 | A9350005008 | Pan Head Phillips Bolt M5 X 8 |
| 8 | A31100152000 | A.C. Generator Ass'y |
| 9 | A31110152000 | Fly Wheel Comp. |
| 10 | A31120152000 | STATOR COMP - Call your local BRP dealership |
| 11 | A32963152000 | Wire Bracket 2 |
| 12 | A9100006070 | Pan Head Phillips Bolt M6 X 70 |
| 13 | A32961152000 | A.C. Generator Cord Clamper |
| 14 | A90084108000 | A.C. Generator Cap, 14 mm |
| 15 | A90087108000 | A.C. GENERATOR CAP 30MM - Call your local BRP dealership |
| 16 | A941051225023 | Plain Washer |
| 17 | A9350006012 | Pan Head Phillips Bolt M6 X 12 |
| 18 | A32962152000 | Wire Bracket 1 |
| 19 | A91327120000 | OIL-RING - Call your local BRP dealership |
| 20 | A91313108000 | Oil Ring |
| 21 | A941110610015 | Spring Washer, 6 X 10 X 1.5 |
| 22 | A9405010000 | HEX.FLANGE NUT WITH SERRATION M10 - Call your local BRP dealership |
| 23 | A9430108120 | DOWEL PIN - Call your local BRP dealership |
| 24 | A9350006016 | Pan Head Phillips Bolt M6 X 16 |
| 25 | A9100006028 | Hex. Socket Bolt M6 X 28 |
| 26 | A960000605008 | Hexagonal Washer Face Bolt |
