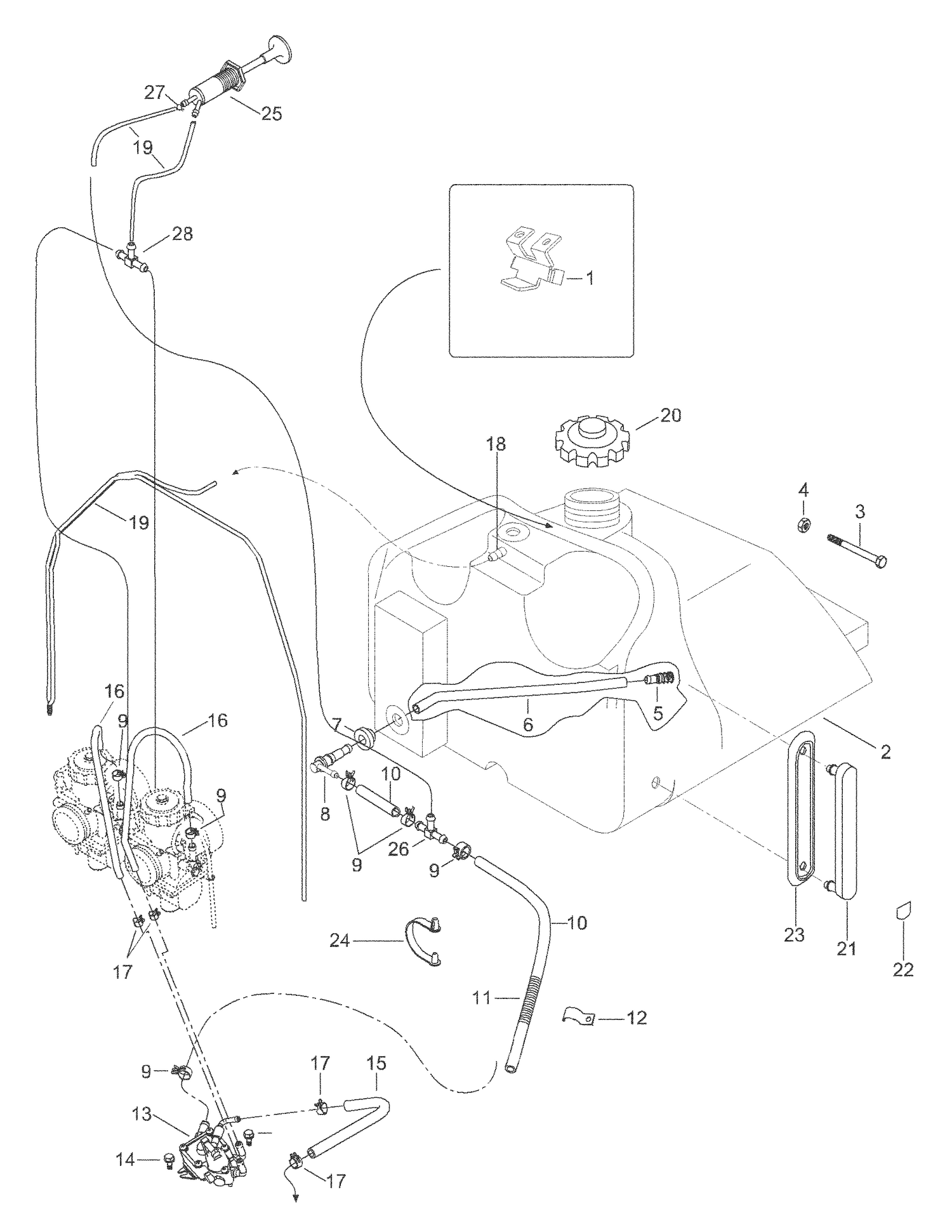

02- Fuel Tank
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5346937 | Bracket |
| 2 | 5146941 | Fuel tank |
| 3 | 40002 | Screw M6x40 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 5 | 414872100 | Fuel filter |
| 6 | 39048 | Fuel line 12.5/7.5 |
| 7 | 280000674 | Grommet This part replaces 28037. |
| 8 | 5341709 | CONNECTOR-MALE - Call your local BRP dealership |
| 9 | 414554800 | Clamp |
| 10 | 39004 | Fuel line 8/5 |
| 11 | 28012 | Tubing |
| 12 | 415018200 | CLIP - Call your local BRP dealership |
| 13 | 403801000 | Fuel pump |
| 14 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 15 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 16 | 39060 | Fuel line 8/5,5 |
| 17 | 414420700 | Universal Spring Clamp |
| 18 | 404153400 | Nipple |
| 19 | 39035 | Hose 5/3 |
| 20 | 513033025 | Fuel Tank Cap This part replaces 580259400. |
| 21 | 572015900 | Fuel gauge |
| 22 | 549200 | Fuel label |
| 23 | 570018000 | Housing gauge |
| 24 | 414379300 | CABLE CLIP - Call your local BRP dealership |
| 25 | 415060500 | Primer |
| 26 | 21062 | T-fitting |
| 27 | 543230 | Clamp |
