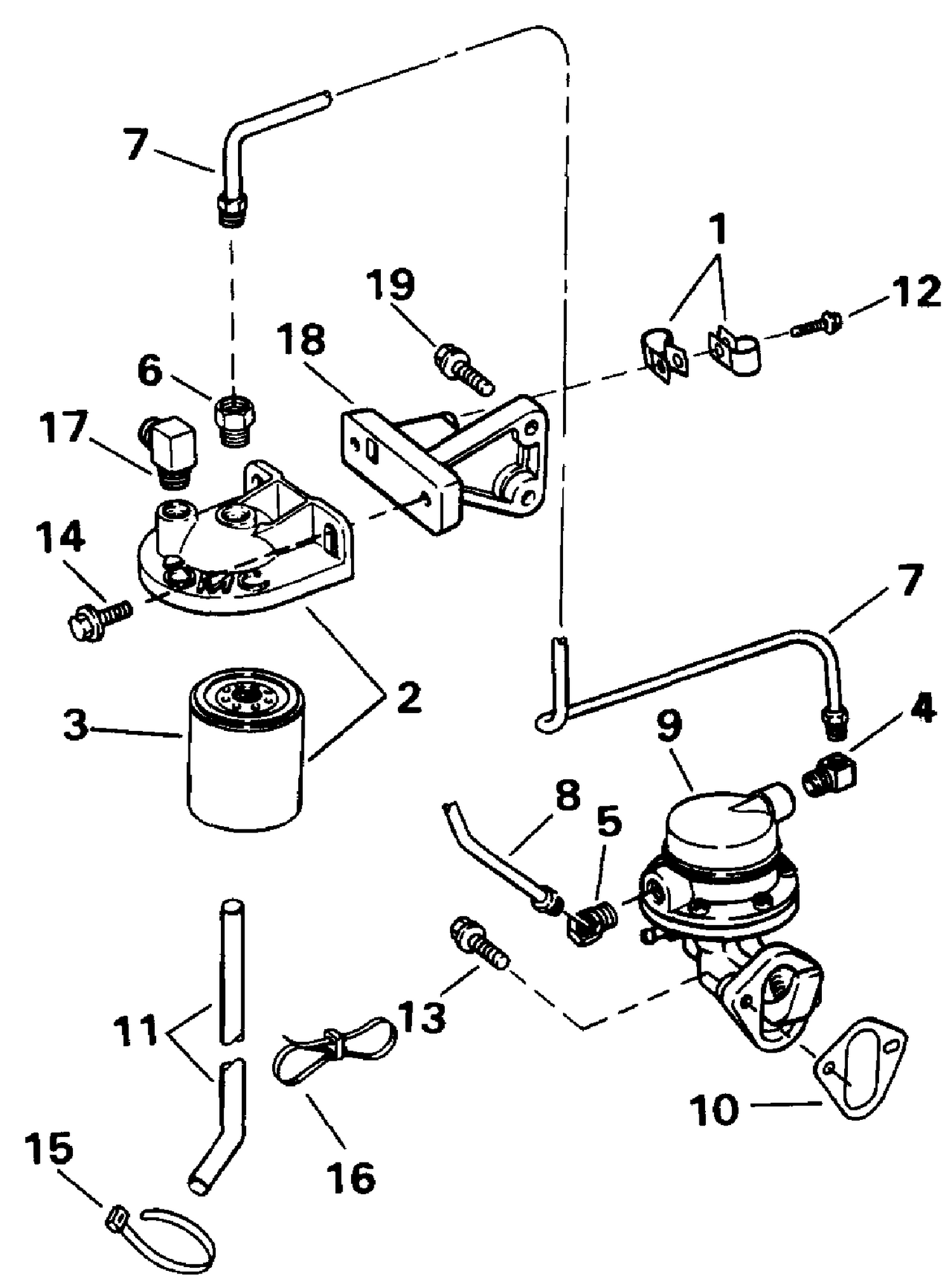

| Ref | Part Number | Description |
|---|
| 1 |
3852427 |
CLAMP, Fuel line to bracket This part replaces 0907852. |
| 2 |
0987169 |
FUEL FILTER & COVER ASSY. |
| 3 |
5012363 |
Filter Ay This part replaces 0987228. |
| 4 |
3852453 |
FITTING, Cover, return line This part replaces 0908644. |
| 5 |
3852506 |
FITTING, Fuel pump outlet This part replaces 0910415. |
| 6 |
0914513 |
FITTING, Fuel line to filter |
| 7 |
0986418 |
FUEL LINE, Filter to pump |
| 8 |
3854046 |
FUEL LINE, Pump to carburetor This part replaces 0986986. |
| 9 |
3853970 |
FUEL PUMP This part replaces 0986417. |
| 10 |
0311064 |
GASKET, Fuel pump |
| 11 |
0909938 |
HOSE, Fuel overflow |
| 12 |
3852473 |
SCREW, Cap to gimbal This part replaces 0909636. |
| 13 |
3853397 |
SCREW, Bracket to engine This part replaces 0915006. |
| 14 |
3853266 |
BOLT, Distributor This part replaces 0914544. |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
0174179 |
ELBOW, Filter inlet |
| 18 |
0914927 |
BRACKET, Fuel filter |
