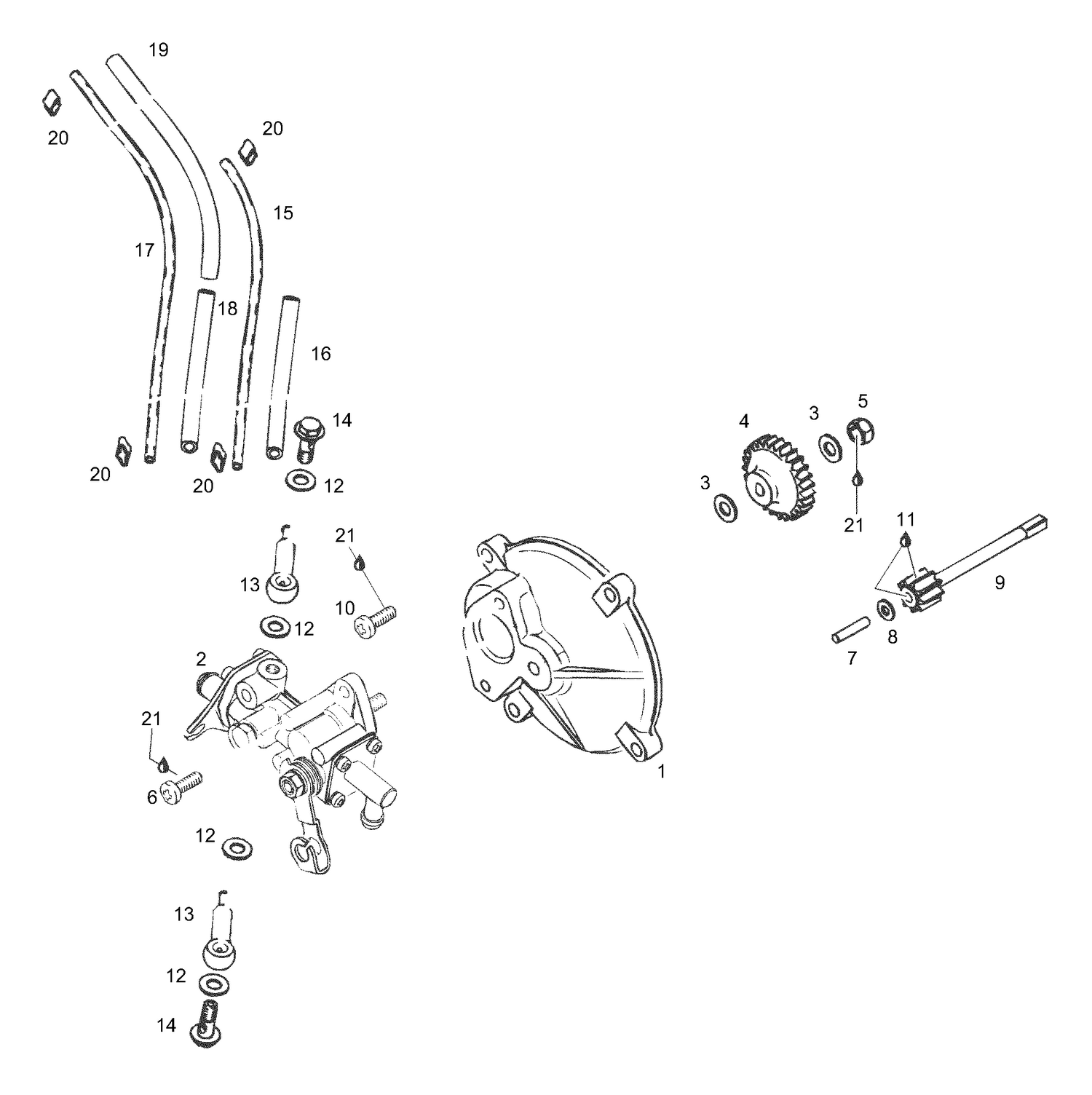

01- Oil Pump
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420910160 | PUMP MOUNTING FLANGE - Call your local BRP dealership |
| 2 | 420887996 | OIL PUMP ASS?Y - Call your local BRP dealership |
| 3 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 4 | 420935930 | Gear, Z-27 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 420841971 | Screw This part replaces 420841970. |
| 7 | 420832260 | NEEDLE PIN - Call your local BRP dealership |
| 8 | 420244072 | Washer-Flat 4 This part replaces 420244073. |
| 9 | 420935970 | Gear Z-9 |
| 10 | 420841971 | Screw This part replaces 420841970. |
| 11 | 413707000 | Molykote 111 |
| 12 | 404146600 | Sealing Washer |
| 13 | 420956010 | Chock valve assy |
| 14 | 404146800 | Banjo bolt |
| 15 | 414413800 | Oil line |
| 16 | 420960750 | Isolation hose, 90mm |
| 17 | 414413800 | Oil line |
| 18 | 420960728 | Isolation hose, 120mm |
| 19 | 420960729 | Isolation hose, 150mm |
| 20 | 420853840 | Clamp, 3-5 mm |
