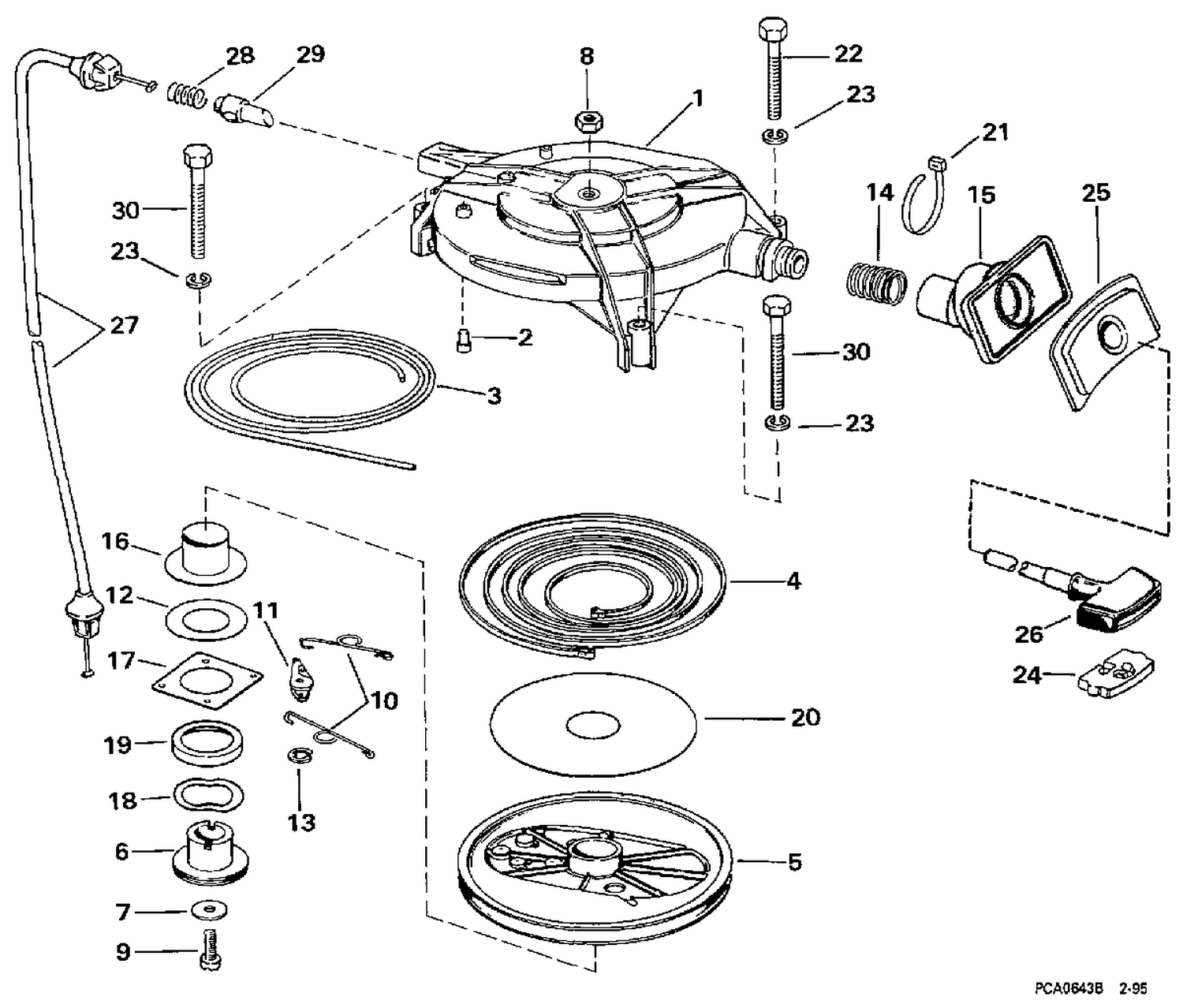

REWIND STARTER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | ROPE | Ref: 4 0395460 **SPRING, Starter 0395460 |
| 9 | 0336135 | SCREW, Flywheel This part replaces 0306284. |
| 21 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 22 | 0324814 | ECREW,Exhaust cover,1-1/2"long |
| 25 | 0208424 | PLATE, Handle |
| 27 | 0390455 | CABLE Assy, Starter lockout |
| 28 | 0325338 | RESSORT, plongeur |
| 29 | 0325337 | PLUNGER, Lockout |
| 0398036 | 0398036 | REWIND STARTER Assy |
