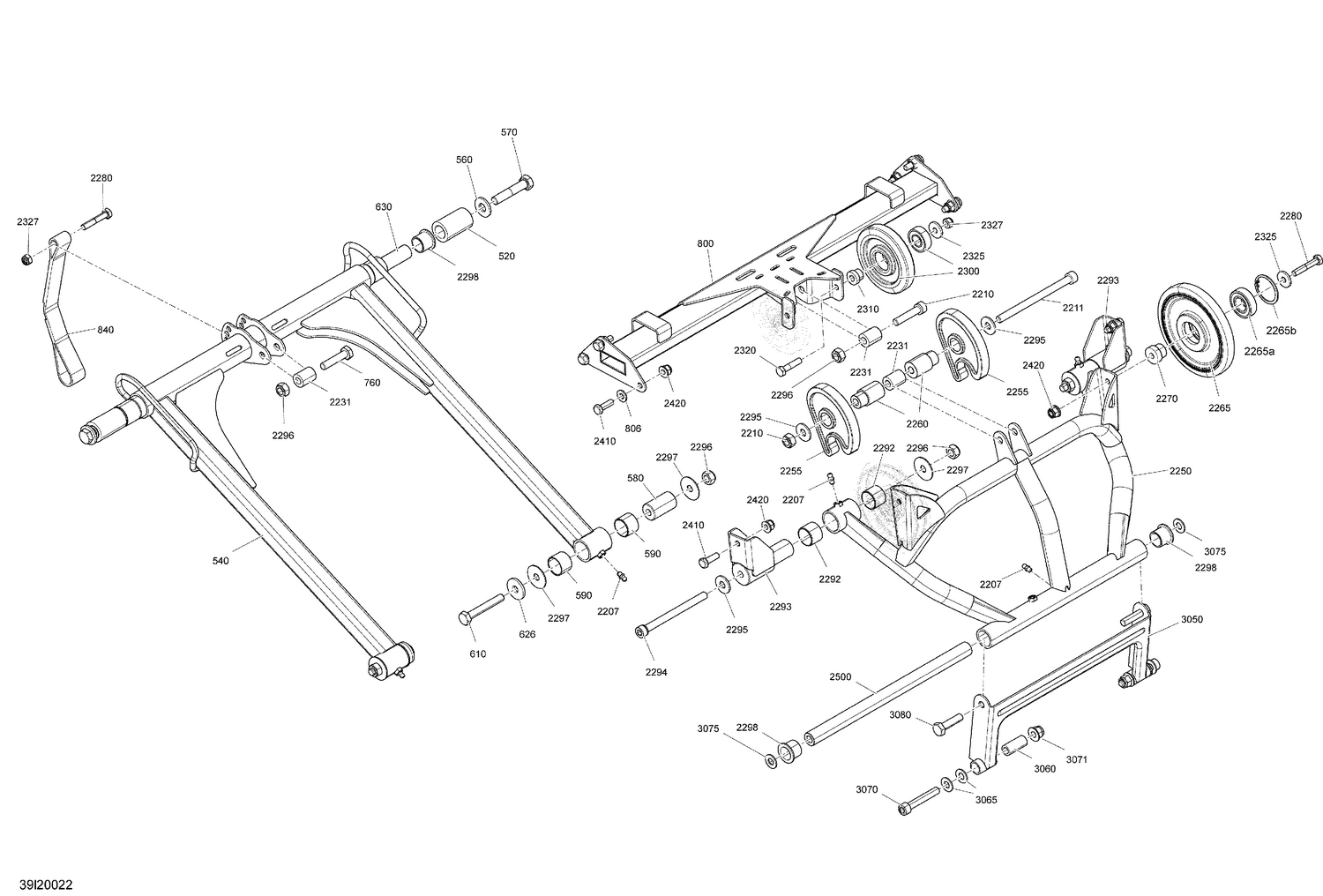

08- Suspension, Rear - System - Upper Section
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 520 | 503193309 | Sleeve |
| 540 | 503193092 | Front Arm |
| 560 | 250200131 | Washer Spring Conical M12 |
| 570 | 250000555 | Hex. Cap Screw M12 x 60 |
| 580 | 605354157 | Etupukin ala-akseli |
| 590 | 503193700 | Bushing |
| 610 | 207007044 | Hex. Cap Screw M10 x 70 |
| 626 | 503183300 | Aluslevy M10, karkaistu |
| 630 | 503193174 | Upper Shaft Front Arm |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 800 | 503192687 | Middle Beam |
| 806 | 503192494 | Washer |
| 840 | 503193780 | Limiter Strap |
| 2207 | 408200700 | Grease Fitting |
| 2210 | 40134 | Screw Socket HD.DIN 912 |
| 2211 | 40225 | Allen Screw M10x140 8.8zn(1=10pcs) |
| 2231 | 5446652 | Bushing |
| 2250 | 503194584 | Rear Arm Weld |
| 2255 | 503194181 | Track Support |
| 2260 | 503194203 | Sleeve |
| 2265a | 503190396 | Ball Bearing |
| 2265b | 415129371 | Retaining Ring |
| 2270 | 605454461 | Sleeve |
| 2280 | 207084544 | Hex. Screw M8 X 45 |
| 2290 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2292 | 503193700 | Bushing |
| 2293 | 503194384 | Rear Arm Support |
| 2294 | 250001109 | Screw-socket Hd.din 912 |
| 2295 | 503191926 | Washer |
| 2296 | 232500416 | Elastic Stop Nut M10 |
| 2297 | 605355801 | Korialuslevy |
| 2298 | 31024 | Lower Cushion rear arm |
| 2300 | 572043500 | Idler Wheel |
| 2310 | 503193330 | Sleeve |
| 2320 | 207083544 | Hex. Screw M8 X 35 |
| 2325 | 20077 | M8 Washer |
| 2327 | 232581414 | Hex. Elastic Stop Nut M8 |
| 2410 | 250000556 | Hex. Cap Screw M8 x 25 |
| 2420 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2500 | 503192397 | Shaft |
| 3050 | 503192346 | Rear Swing |
| 3060 | 503192341 | Shaft, Rear Swing |
| 3065 | 234001410 | Flat Washer 10 mm |
| 3070 | 205006044 | Socket Head Screw M10 x 60 |
| 3071 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 3075 | 234001410 | Flat Washer 10 mm |
