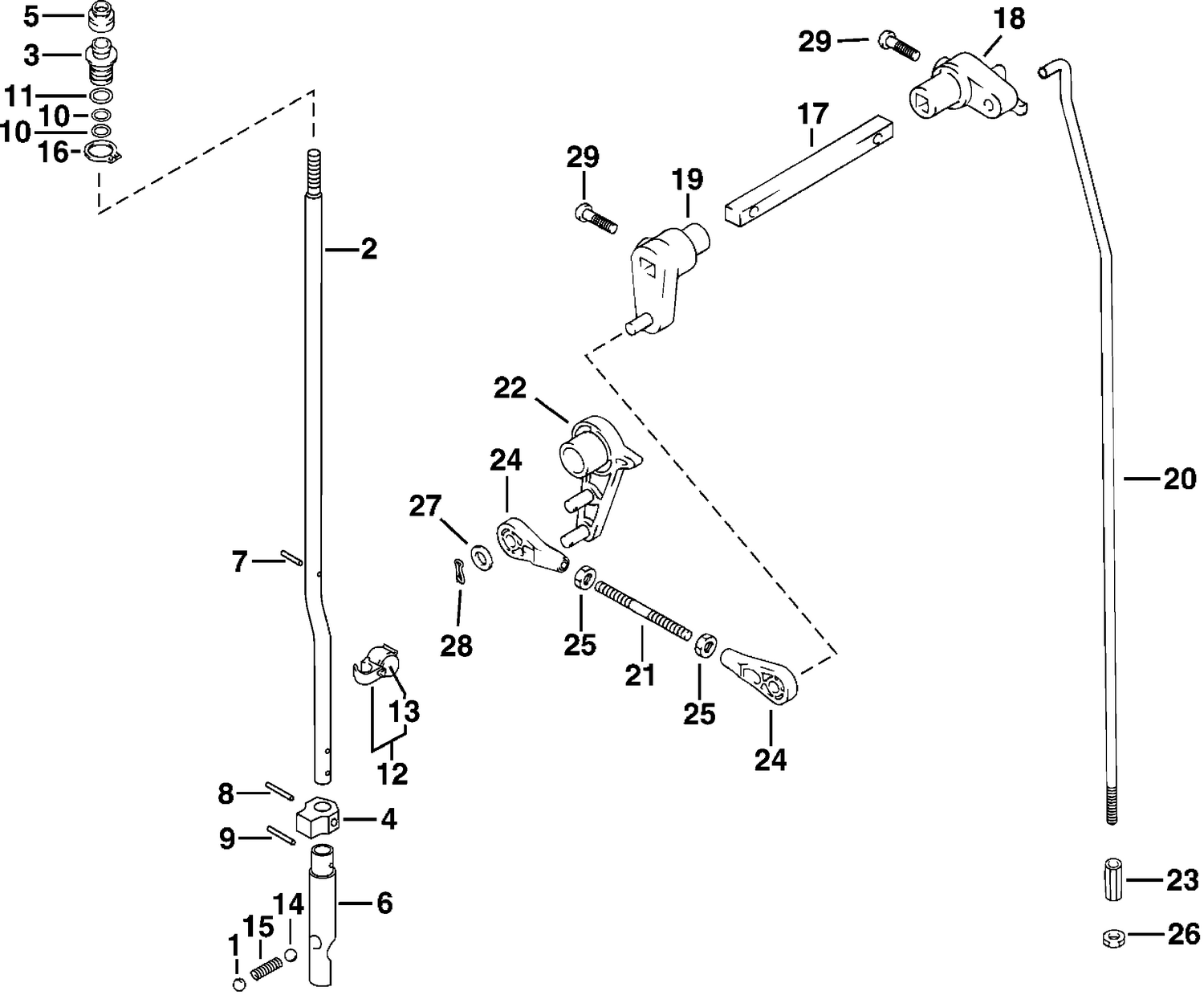

SHIFT ROD & LEVER
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030763 | PLATE, Clutch |
| 2 | 5031451 | ROD, SHIFT |
| 3 | 5031452 | GUIDE, SHIFT ROD |
| 4 | 5031453 | GUIDE, SHIFT ROD LOWER |
| 6 | 5031455 | CAM, SHIFT |
| 7 | 5030513 | GOUPILLE ÉLASTIQUE |
| 8 | 5031248 | PIN, Guide |
| 9 | 5030514 | PIN |
| 11 | 5031261 | O RING |
| 12 | 5030777 | MAGNET ASSY |
| 14 | 5030096 | BALL |
| 15 | 5031282 | SPRING |
| 16 | 5031689 | CIRCLIP |
| 17 | 5031442 | SHAFT, CLUTCH |
| 18 | 5037582 | Arm This part replaces 5031443. |
| 19 | 5031444 | ARM, CLUTCH SHAFT SIDE |
| 20 | 5031445 | ROD, CLUTCH |
| 21 | 5031447 | LINK, CLUTCH LEVER |
| 22 | 5031448 | LEVER, CLUTCH CONTROL |
| 23 | 5031449 | CONNECTOR, Shift rod |
| 24 | *5032155 | CONN,THROTTLE LIMT This part replaces 5032465. |
| 27 | *5031080 | WASHER,CONNECTOR |
| 28 | *5030575 | CLIP |
