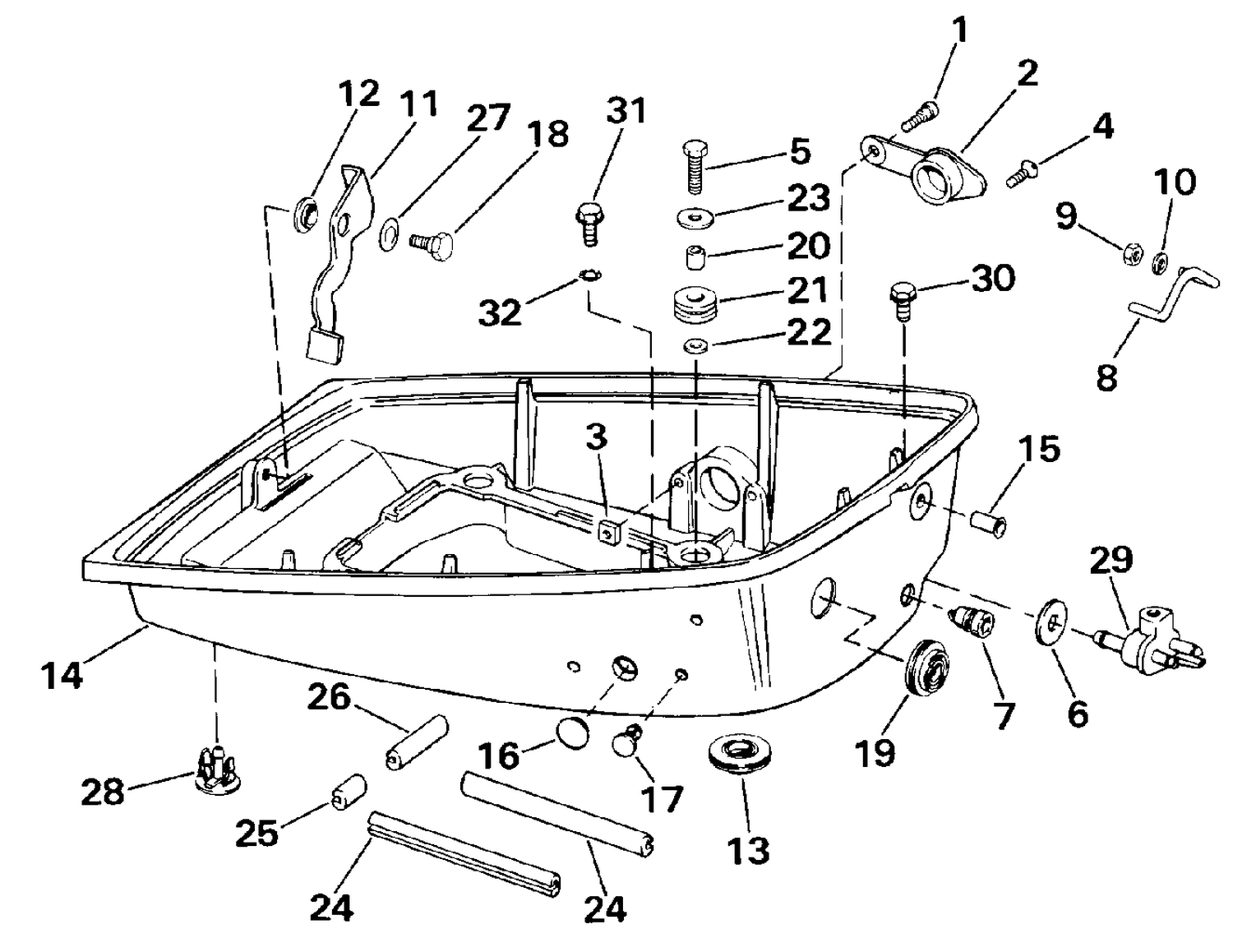

| Ref | Part Number | Description |
|---|
| 5 |
0306409 |
VIS, collecteur vers carter-moteur |
| 7 |
0327442 |
BUSHING, Cable to engine cover |
| 8 |
0332146 |
ROPE GUIDE |
| 11 |
0312833 |
HANDLE, Latch |
| 12 |
0204444 |
BUSHING |
| 13 |
0331634 |
BAGUE, câble d'accélérateur |
| 14 |
0431835 |
ENGINE COVER, Lower This part replaces 0396558. |
| 14 |
0431837 |
ENGINE COVER, Lower This part replaces 0396557. |
| 18 |
0302592 |
SCREW |
| 19 |
0331537 |
GROMMET |
| 20 |
0325085 |
SLEEVE, Mount engine cover |
| 22 |
0329241 |
RONDELLE This part replaces 0306482. |
| 24 |
0325087 |
SEAL, Engine cover side |
| 25 |
0325088 |
SEAL, Exhaust housing rear, starboard |
| 26 |
0325823 |
SEAL, Exhaust housing, rear port |
| 27 |
0204445 |
BOW WASHER |
| 28 |
0321885 |
NIPPLE |
| 30 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 31 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
