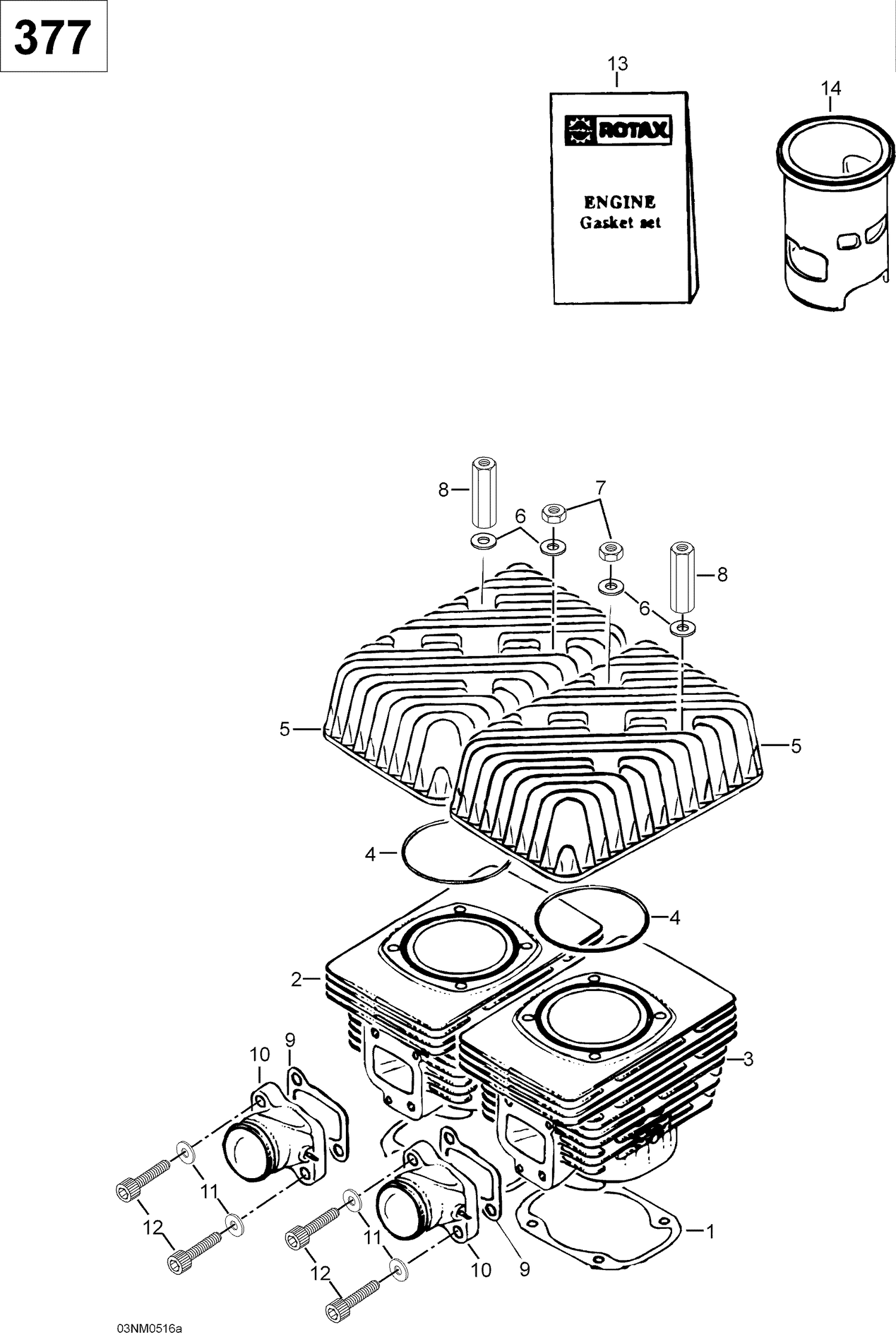

| Ref | Part Number | Description |
|---|
| 1 |
420430351 |
GASKET 0.4 - Call your local BRP dealership This part replaces 420931781. |
| 2 |
420923403 |
Cylinder With Sleeve, PTO |
| 3 |
420923408 |
Cylinder With Sleeve, Mag |
| 4 |
420931380 |
O-Ring |
| 5 |
420613630 |
CYLINDER HEAD - Call your local BRP dealership |
| 6 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 7 |
232081414 |
Hex. Nut M8 This part replaces 420242206. |
| 8 |
420842208 |
DISTANCE NUT M8 X 51 - Call your local BRP dealership |
| 9 |
420831867 |
INTAKE GASKET 1.0 MM - Call your local BRP dealership This part replaces 420831866. |
| 10 |
420867400 |
INTAKE SOCKET - Call your local BRP dealership |
| 11 |
20014 |
Spring washer |
| 12 |
420841591 |
Screw M8 X 35 |
| 13 |
420994232 |
GASKET SET, ENGINE - Call your local BRP dealership |
