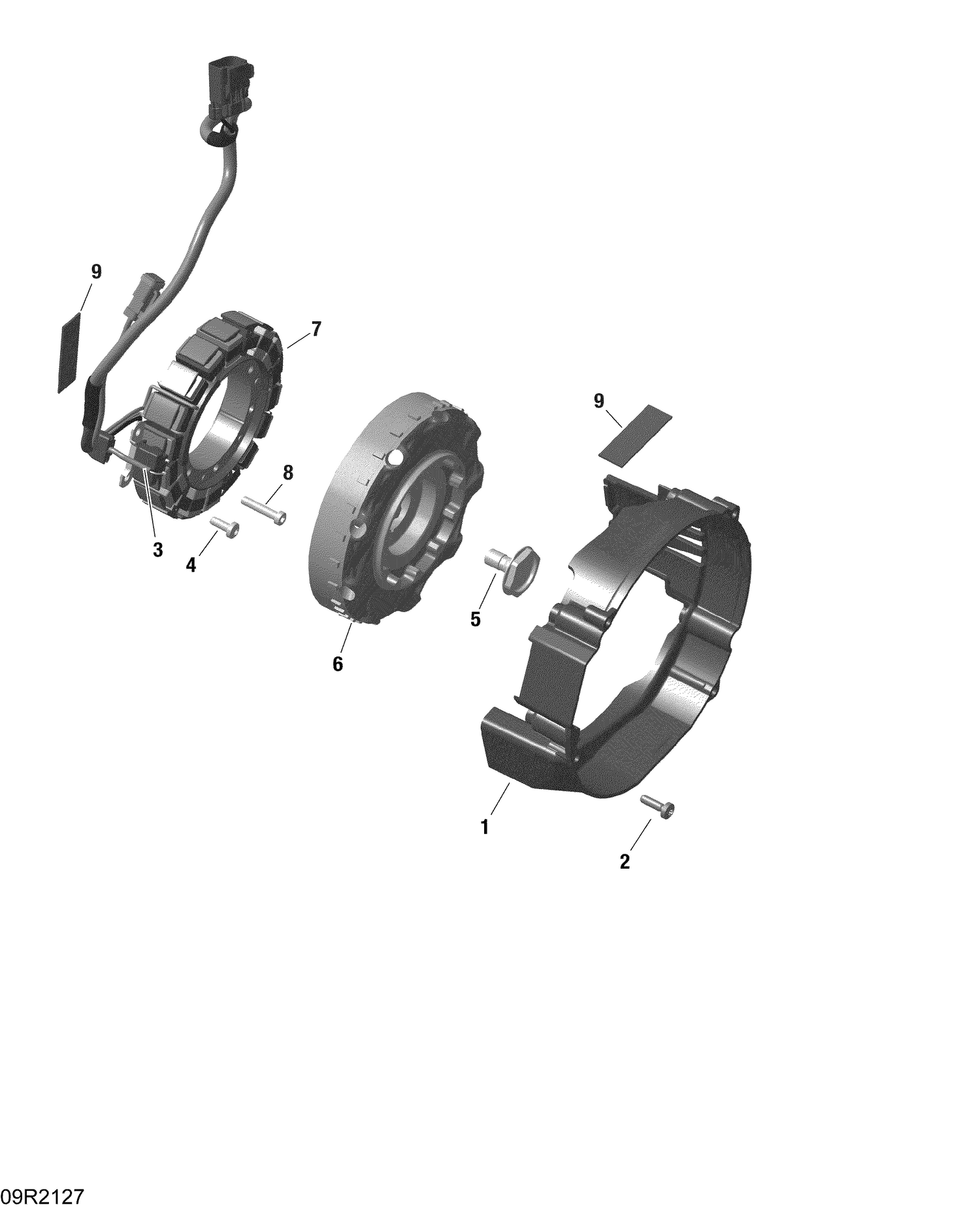

01- Rotax - Magneto - Turbo
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911855 | Ignition Housing This part replaces 420911851. |
| 2 | 420441386 | Torx Flange Screw M6 X 20 |
| 3 | 420966844 | Pickup Ass'y This part replaces 420966841. |
| 4 | 420441386 | Torx Flange Screw M6 X 20 |
| 5 | 420840851 | Collar Hex Screw M12 X 25 |
| 6 | 420866046 | Magneto Flywheel This part replaces 420864436. |
| 7 | 420864427 | Stator Ass'y 55V/1300W |
| 8 | 420540000 | Allen Screw M6 x 30 |
