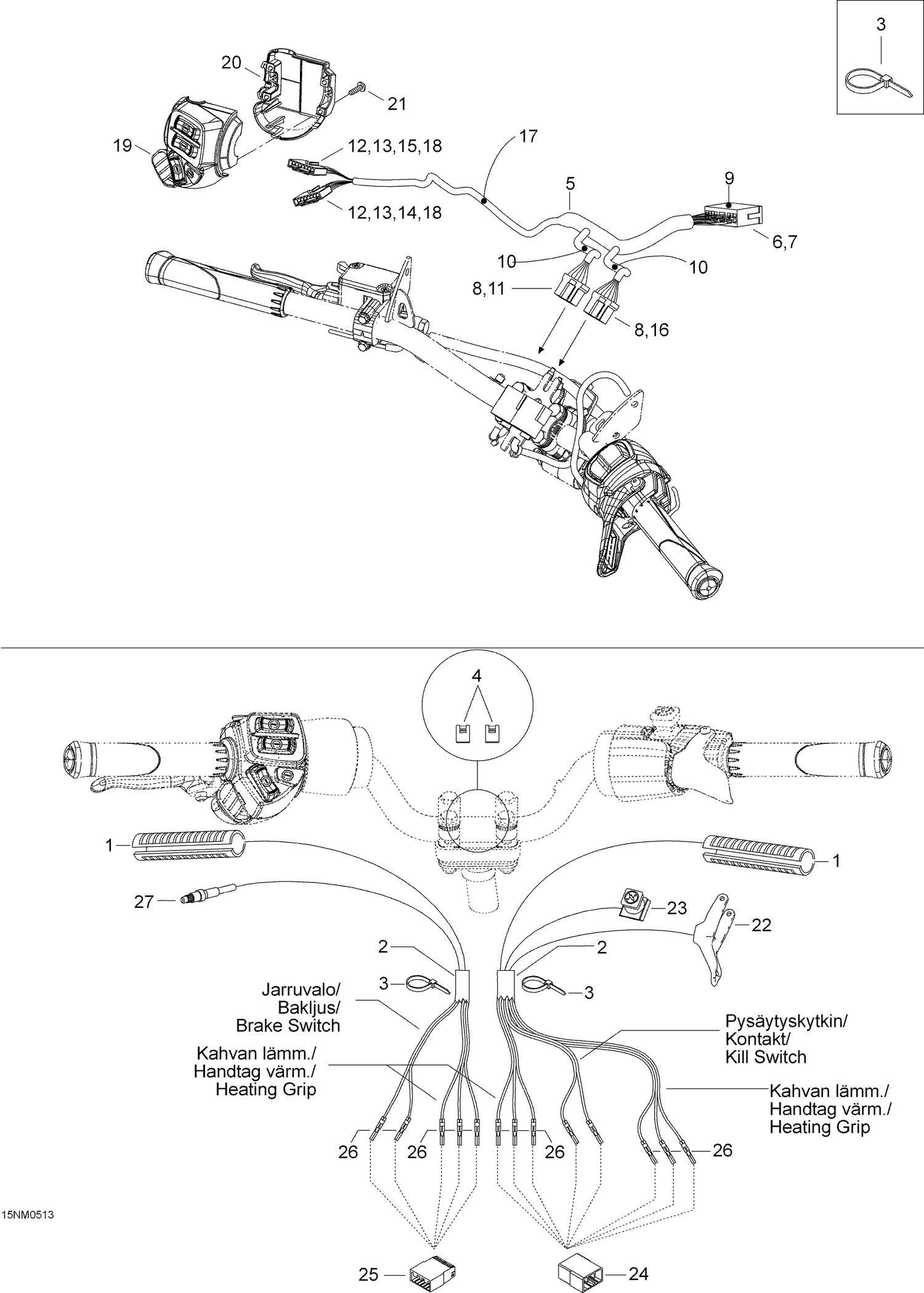

| Ref | Part Number | Description |
|---|
| 1 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 2 |
39023 |
Plastic Tubing d=6, musta - Call your local BRP dealership |
| 3 |
27010 |
Tie-rap 98mm |
| 4 |
270000141 |
Clip This part replaces 515175917. |
| 6 |
515175232 |
Male terminal |
| 7 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 8 |
515175231 |
Female Terminal |
| 9 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 10 |
415079900 |
Tubing 10 mm |
| 11 |
515175543 |
Female terminal housing (6 circuits) |
| 12 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership |
| 13 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 14 |
515175807 |
FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 15 |
515175810 |
FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 16 |
515175819 |
Female terminal housing (8 circuits) |
| 17 |
515175830 |
Low temperature tubing 1/2” |
| 18 |
515175941 |
Female terminal |
| 19 |
515176015 |
LH SWITCH HOUSING - Call your local BRP dealership |
| 20 |
515175926 |
Cover |
| 21 |
40903 |
Plastofast-screw 3.5 x 25 |
| 22 |
512059624 |
Handle ass'y |
| 23 |
515177362 |
Kill Switch This part replaces 512059751. |
| 24 |
515175817 |
Male connector housing |
| 25 |
515175662 |
Male connector housing |
| 26 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
