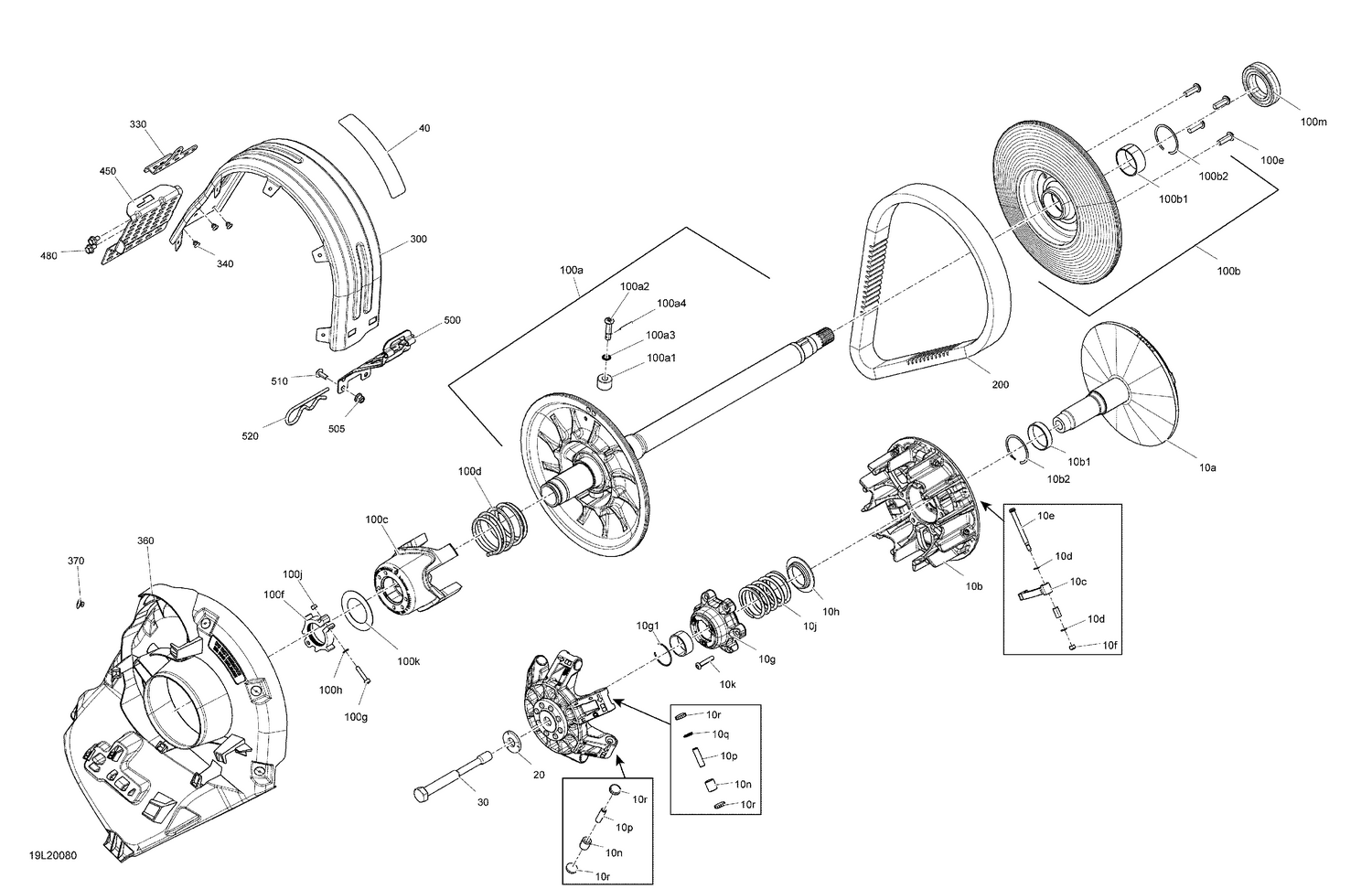

05- Pulley - System
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417224091 | Fixed Flange Ass'y |
| 10b1 | 417222758 | Bushing Outer Half |
| 10b2 | 293370037 | Circlip |
| 10c | 417223508 | Ramp 716 Ass'y |
| 10d | 417223255 | Thrust Washer |
| 10e | 417223694 | Axle Ramp |
| 10f | 417224336 | Nut-Stop Elastic DIN.985 |
| 10g1 | 293370065 | Circlip |
| 10h | 417223752 | Spring Seat |
| 10j | 417223747 | Spring (Red / White, 356-600N / 80-135lbs) |
| 10k | 250000580 | Torx Screw M6 X 30 |
| 10m | 417223865 | Governor Cup Ass'y |
| 10n | 417223767 | Roller |
| 10p | 417223257 | Roller Axle |
| 10q | 293300185 | O-Ring |
| 10r | 417223919 | Slider Shoe |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300432 | Drive Pulley Bolt |
| 40 | 516009933 | Pulley Warning Decal |
| 100a1 | 417127016 | Roller |
| 100a2 | 417127294 | Torx Screw M8 x 25, Scotch Grip |
| 100a3 | 250200009 | Ribbed Lock Washer 8 mm |
| 100a4 | 250400070 | Spring Pin |
| 100b1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100b2 | 293370049 | Spacer (1.91/2.21mm) |
| 100c | 417127747 | Cam Driven Pulley Ass'y |
| 100d | 417127467 | Spring (Red, 182-313N / 41-70lbs) |
| 100e | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 100f | 415129604 | Pulley Adjuster Ass'y |
| 100g | 250000981 | Socket Screw M5 X 25 |
| 100h | 234051410 | Flat Washer M5 |
| 100j | 232551414 | Elastic Stop Nut M5 |
| 100k | 417127155 | Washer |
| 100m | 504152574 | Ball Bearing |
| 200 | 417300585 | Drive Belt This part replaces 417300127. |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300557 | CVT Cooling Duct This part replaces 417300550. |
| 370 | 293150103 | Pop Rivet 3/16 |
| 450 | 417300583 | Front Guard Support |
| 480 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300581 | Rear Guard Support |
| 505 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 510 | 250000755 | Torx Screw M6 X 16 |
