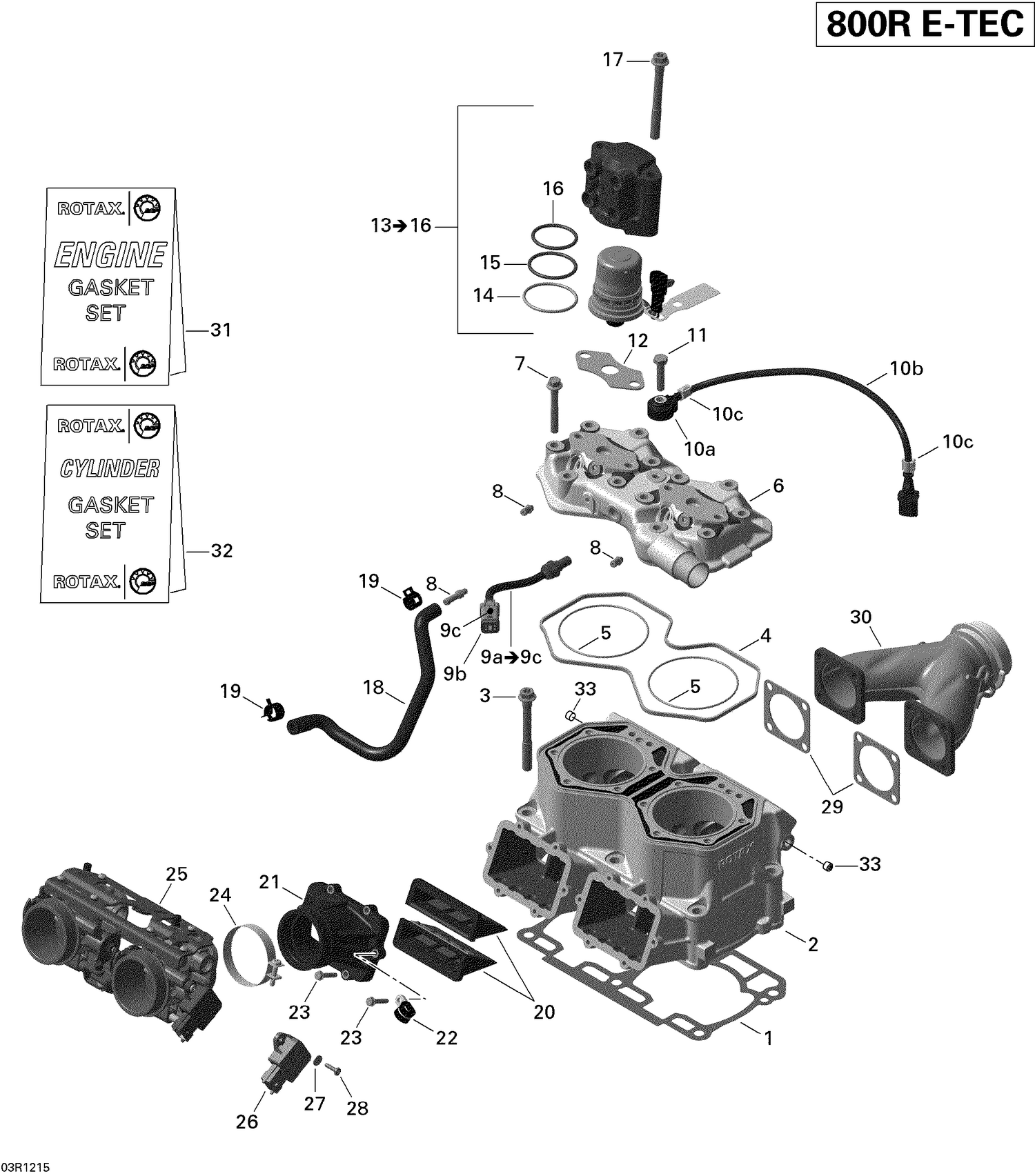

01- Cylinder And Injection System _Summit
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420430080 | Double Gasket 0.5 mm |
| 1 | 420430081 | Double Gasket 0.6 mm |
| 1 | 420430082 | Double Gasket 0.7 mm |
| 1 | 420430083 | Double Gasket 0.8 mm |
| 1 | 420430084 | Double Gasket 0.9 mm |
| 1 | 420430085 | Double Gasket 1.0 mm |
| 1 | 420430086 | DOUBLE GASKET 1.1 MM - Call your local BRP dealership |
| 1 | 420430087 | DOUBLE GASKET 1.2 MM - Call your local BRP dealership |
| 2 | 420413041 | Cylinder This part replaces 421000702. |
| 3 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 4 | 420430040 | O-Ring |
| 5 | 420931410 | O-Ring |
| 6 | 420623304 | Head Cylinder Cover This part replaces 420623303. |
| 7 | 420941627 | Hex. Screw M8 X 56.5 |
| 8 | 420924724 | Hose Nipple |
| 9b | 515175670 | Female Terminal Housing, 2 Circuits |
| 9c | 278000632 | Female Terminal |
| 10a | 270000484 | Noise Sensor |
| 10b | 420460010 | TUBE - Call your local BRP dealership |
| 10c | 420960890 | CLIP - Call your local BRP dealership |
| 11 | 207083544 | Hex. Screw M8 X 35 |
| 12 | 420430930 | Gasket |
| 14 | 415129497 | Crush Ring |
| 15 | 415129498 | O-Ring |
| 16 | 415129499 | O-Ring |
| 17 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 18 | 420460867 | Molded Hose |
| 19 | 420853511 | Clamp |
| 20 | 420924798 | Reed Valve Ass'y This part replaces 420924792. |
| 21 | 420867333 | Intake Socket |
| 22 | 420851250 | Clamp |
| 23 | 420241271 | Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 24 | 420851815 | Clamp |
| 25 | 420889202 | Throttle Body This part replaces 420889199. |
| 26 | 420866120 | Position Sensor |
| 27 | 234041600 | Flat Washer 4 mm, Stainless |
| 28 | 208641660 | Phillips Screw M4 X 16 |
| 29 | 420430482 | Gasket |
| 30 | 420673374 | Exhaust Manifold This part replaces 420673373. |
| 31 | 420892474 | GASKET SET ENGINE - Call your local BRP dealership |
| 32 | 420892479 | Gasket Set, Cylinder |
