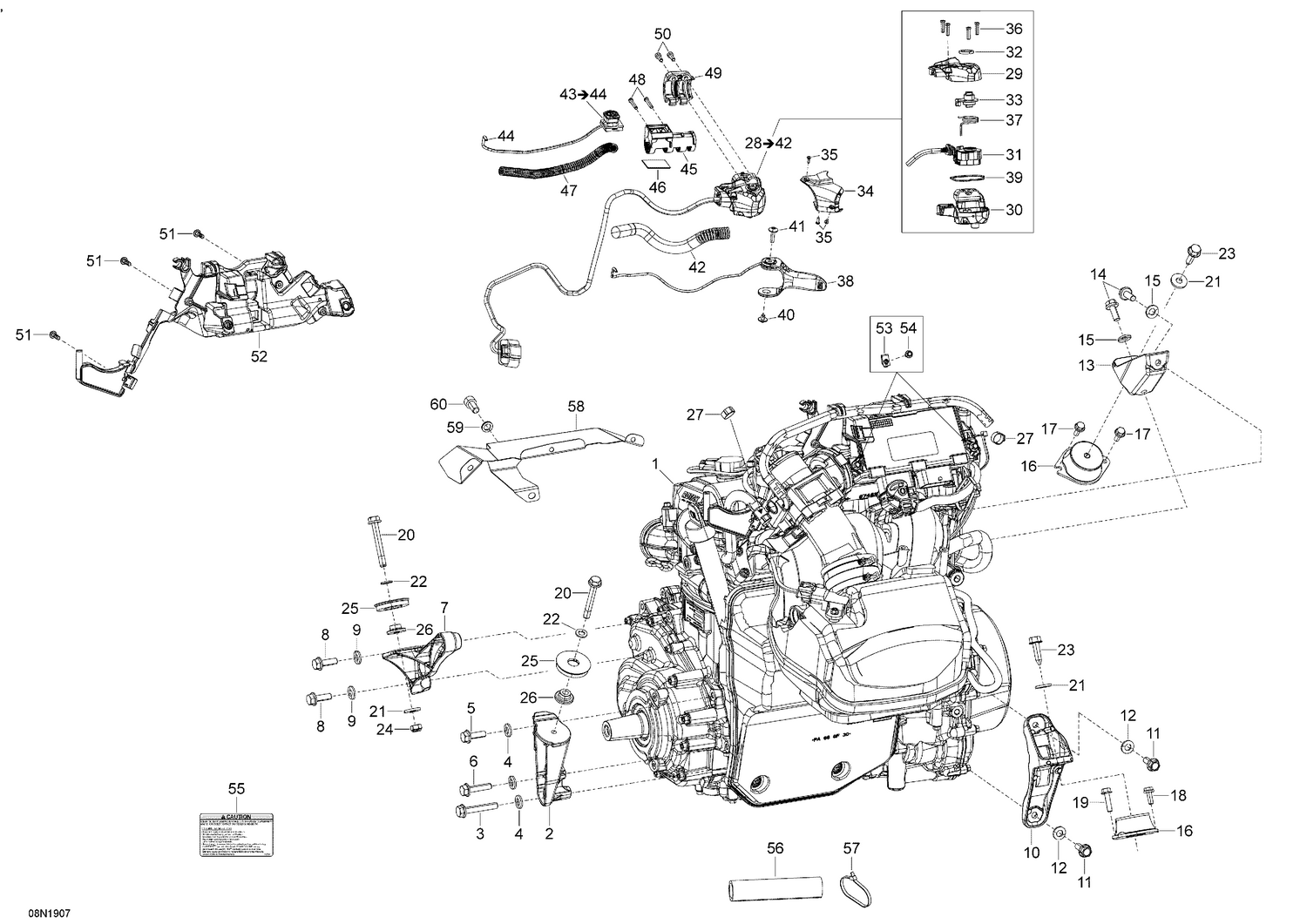

| Ref | Part Number | Description |
|---|
| 2 |
512060591 |
Rear Support, PTO |
| 3 |
250001030 |
Hex. Flange Screw M8 X 50 |
| 4 |
250200146 |
Conical Spring Washer M8 |
| 5 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 7 |
512060593 |
Front Support, PTO |
| 8 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 9 |
234281474 |
Conical Spring Washer M8 |
| 10 |
512060594 |
Rear Support, MAG |
| 11 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 12 |
234281474 |
Conical Spring Washer M8 |
| 13 |
512060596 |
Front Support, MAG |
| 14 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 15 |
234281474 |
Conical Spring Washer M8 |
| 16 |
512060729 |
Rubber Mount |
| 17 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 18 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 19 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 20 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 21 |
503183200 |
Yellow, Washer |
| 22 |
250200008 |
Flat Washer With Teflon 8 mm |
| 23 |
250000257 |
Cone Screw, M8 X 30 |
| 24 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 25 |
512061202 |
Stopper This part replaces 512060244. |
| 26 |
512060285 |
Spacer |
| 27 |
293650047 |
Crimp Clamp, 15.3-706R |
| 28 |
512061607 |
Housing Ass'y This part replaces 512061256. |
| 29 |
415130047 |
Handle Ass'y kit |
| 30 |
512060862 |
Cap |
| 31 |
250000623 |
Torx Screw M2.9 x 9.5 |
| 32 |
250000671 |
Torx Screw |
| 33 |
512060961 |
Screw |
| 34 |
250000528 |
Torx Screw M5 X 20 |
| 43 |
515177362 |
Emergency Stop Switch |
| 45 |
512061453 |
Switch Support This part replaces 512060844. |
| 46 |
294000973 |
Friction Tape |
| 47 |
515177946 |
Protector Tube |
| 48 |
250000263 |
Torx Screw #8-18 |
| 49 |
512060987 |
Front Housing |
| 50 |
250000632 |
Torx Screw M5 X 14 |
| 51 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 52 |
512061012 |
Module Support |
| 53 |
250000958 |
Panel Nut M5 X 0.8 |
| 54 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 55 |
516005521 |
Caution Decal, Oil Level |
