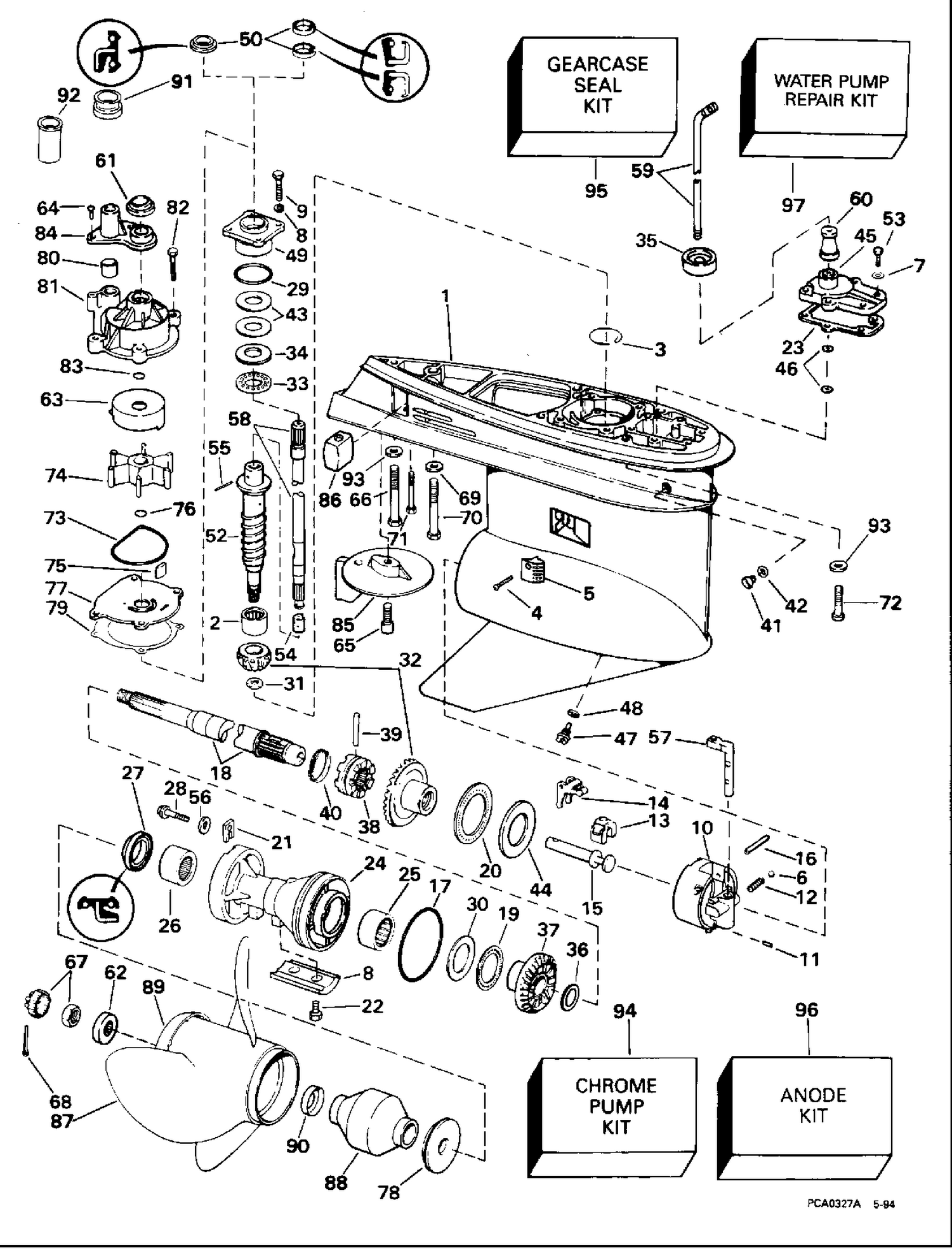

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 17 |
0305123 |
O RING |
| 26 |
0434467 |
NEEDLE BEARING ASSY. |
| 27 |
0341281 |
SEAL |
| 50 |
0341280 |
SEAL |
| 58 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0436232. |
| 58 |
5007672 |
DRIVESHAFT Assembly, Upper This part replaces 0436233. |
| 59 |
0329864 |
SHIFT ROD |
| 59 |
0329865 |
SHIFT ROD |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 81 |
0435990 |
IMPELLER HOUSING |
| 83 |
0331188 |
O-Ring |
| 85 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 87 |
0765187 |
PROPELLER, WDEX Models This part replaces 0391200. |
| 94 |
0435526 |
CHROME CUP & PLATE KIT |
| 95 |
5006373 |
GEARCASE SEAL KIT This part replaces 0434516. |
| 96 |
0392160 |
ANODE KIT |
| 97 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0434421. |
| 150 |
514053487 |
Exhaust Gasket |
| 160 |
514055512 |
Support |
| 170 |
515176795 |
Tie Rap Mount (Screwable) |
| 180 |
390909100 |
Avex Rivet |
| 190 |
514055537 |
Washer 3/16 |
| 200b |
514056283 |
Shell |
| 200c |
514056282 |
Shell |
| 200d |
514056421 |
Rear Upper Shell This part replaces 514055617. |
| 200f |
514056141 |
Rear Lower Aluminum Shell |
| 200g |
514056351 |
Glass Wool |
| 200h |
514056352 |
Glass Wool |
| 200j |
514055844 |
Plate |
| 200k |
390909200 |
Avex Rivet |
| 200m |
390909200 |
Avex Rivet |
| 200n |
514055632 |
Rubber |
| 200p |
514055537 |
Washer 3/16 |
| 200q |
514055846 |
Support |
| 200r |
390909100 |
Avex Rivet |
| 200s |
514055725 |
Tube |
| 250 |
514055965 |
Seal |
| 300 |
514054174 |
Exhaust Gasket |
| 310 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 320 |
514055214 |
Support |
| 330 |
514056157 |
Manifold |
| 340 |
514056380 |
Glass Wool This part replaces 514055763. |
| 350 |
514055747 |
Front Shield |
| 360 |
514056161 |
Rear Sheild |
| 380 |
514056144 |
Retaining Strap |
| 385 |
514056145 |
Retaining Strap |
| 390 |
514053643 |
Spring |
| 400b |
514056114 |
RH Deflector |
| 400c |
514056316 |
LH Deflector |
| 400d |
514056356 |
Glass Wool |
| 400f |
514056357 |
Glass Wool |
| 400g |
514056193 |
Exhaust Support |
| 400h |
514056082 |
Exhaust Support |
| 400j |
514056083 |
Exhaust Support |
| 400k |
390402200 |
Pop Rivet 3/16 |
| 400m |
514055203 |
Stopper |
| 400n |
514056138 |
Stopper Ass'y |
| 400p |
514056151 |
Cap |
| 400q |
390402400 |
Pop Rivet 3/16" |
| 410 |
514056379 |
Acoustic Panel Ass'y |
| 415 |
502008610 |
Stopper |
| 420 |
514055282 |
Spring |
| 430 |
250000926 |
Hex. Flanged Screw M6 |
| 495 |
514056058 |
Spring |
| 500 |
514055198 |
Spring |
| 700 |
514056266 |
Exhaust Temperature Sensor |
| 710 |
515178170 |
Module |
| 715 |
414227300 |
Clip |
| 780 |
514056159 |
Exhaust Gasket |
| 820 |
514055731 |
Exhaust Gasket |
| 850 |
224060201 |
Flat Washer |
| 860 |
514055723 |
Sensor Support |
| 870 |
514056300 |
Hose |
| 890 |
293650249 |
Crimp Clamp |
| 910 |
250000725 |
Screw M4 X 16 |
| 0435470 |
5004639 |
G-Case .44 Std Os This part replaces 0435470. |
