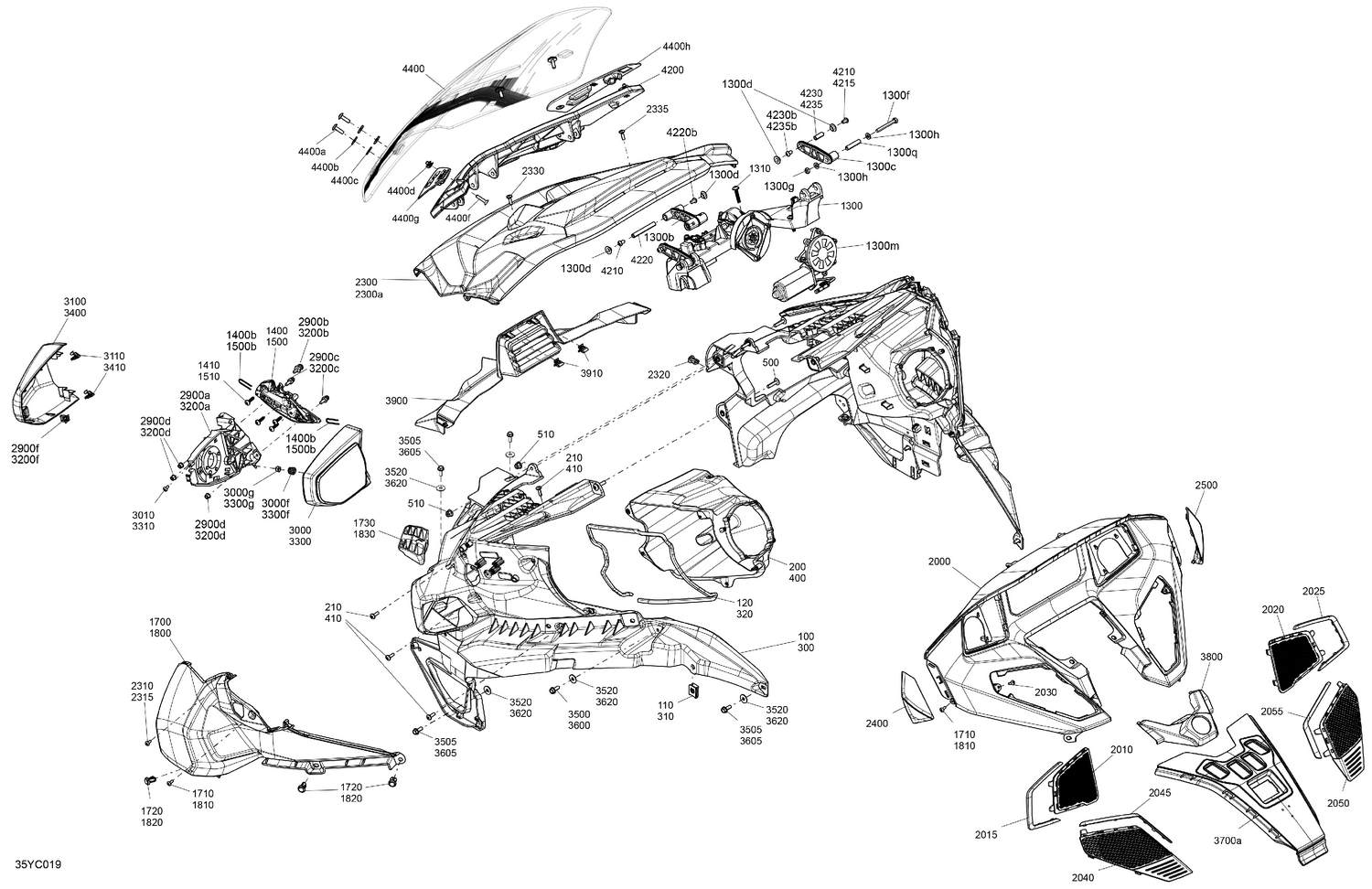

| Ref | Part Number | Description |
|---|
| 100 |
708400548 |
LH Console Support |
| 110 |
250100208 |
Panel Nut M6 X 1.0 |
| 120 |
219704373 |
Seal 1000Mm Long |
| 200 |
708400377 |
LH Front Speaker Support |
| 210 |
250000720 |
Torx Screw K50 X 16 |
| 300 |
708400549 |
RH Console Support |
| 310 |
250100208 |
Panel Nut M6 X 1.0 |
| 320 |
219704373 |
Seal 1000Mm Long |
| 400 |
708400378 |
RH Front Speaker Support |
| 410 |
250000720 |
Torx Screw K50 X 16 |
| 500 |
250000758 |
Torx Screw M6 X 25 |
| 510 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 1300b |
705013108 |
Windshield Lifting Arm Repair Kit |
| 1300c |
219800432 |
Rear Arm Ass'y |
| 1300d |
705003267 |
Sleeve |
| 1300f |
207065060 |
Hex. Screw M6 X 50 |
| 1300g |
232561200 |
Brass Elastic Stop Nut M6 |
| 1300h |
234061600 |
Stainless Flat Washer M6 |
| 1300m |
278002579 |
Windshield Motor |
| 1300q |
705004260 |
Inner Sleeve |
| 1310 |
250000949 |
Screw PT K60 X 30 |
| 1400b |
705006661 |
Spring |
| 1410 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1500b |
705006661 |
Spring |
| 1510 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 1700 |
708400597 |
LH Console Fairing This part replaces 708400541. |
| 1710 |
250001131 |
Torx Truss PT K40 x 12 |
| 1720 |
293150230 |
Tuflok Plastic Rivet |
| 1730 |
708400459 |
LH Fairing Support |
| 1800 |
708400542 |
RH Console Fairing |
| 1810 |
250001131 |
Torx Truss PT K40 x 12 |
| 1820 |
293150230 |
Tuflok Plastic Rivet |
| 1830 |
708400460 |
RH Fairing Support |
| 2000 |
708400599 |
Dashboard This part replaces 708400539. |
| 2010 |
708400357 |
Deep Black, LH Upper Speaker Grille |
| 2015 |
708400653 |
Prosecco Metallic Satin, LH Upper Speaker Trim |
| 2020 |
708400358 |
Deep Black, RH Upper Speaker Grille |
| 2025 |
708400654 |
Prosecco Metallic Satin, RH Upper Speaker Trim |
| 2030 |
250001131 |
Torx Truss PT K40 x 12 |
| 2040 |
708400355 |
Deep Black, LH Lower Speaker Grille |
| 2045 |
708400655 |
Prosecco Metallic Satin, LH Lower Speaker Trim |
| 2050 |
708400356 |
Deep Black, RH Lower Speaker Grille |
| 2055 |
708400656 |
Prosecco Metallic Satin, RH Lower Speaker Trim |
| 2300a |
708400899 |
Deep Black, Console Fairing This part replaces 708400547. |
| 2310 |
250001131 |
Torx Truss PT K40 x 12 |
| 2315 |
250001131 |
Torx Truss PT K40 x 12 |
| 2320 |
293150230 |
Tuflok Plastic Rivet |
| 2330 |
250000720 |
Torx Screw K50 X 16 |
| 2335 |
250000720 |
Torx Screw K50 X 16 |
| 2400 |
708400601 |
LH Front Rear View Mirror Trim This part replaces 708400436. |
| 2500 |
708400602 |
RH Front Rear View Mirror Trim This part replaces 708400437. |
| 2900a |
708400224 |
LH Mirror Support |
| 2900b |
705006733 |
Flat Head Stud M5 |
| 2900c |
708400538 |
Stud Ball M5 |
| 2900d |
233251434 |
Flange Elastic Nut M5 |
| 2900f |
517302785 |
Edge Clip |
| 3000f |
705010625 |
Spring |
| 3000g |
232561600 |
Hex. Elastic Stop Nut M6 |
| 3010 |
250001131 |
Torx Truss PT K40 x 12 |
| 3100 |
708400625 |
Shadow Green, LH Front Rearview Mirror Trim |
| 3110 |
517306478 |
Clip |
| 3200a |
708400225 |
RH Mirror Support |
| 3200b |
705006733 |
Flat Head Stud M5 |
| 3200c |
708400538 |
Stud Ball M5 |
| 3200d |
233251434 |
Flange Elastic Nut M5 |
| 3200f |
517302785 |
Edge Clip |
| 3300f |
705010625 |
Spring |
| 3300g |
232561600 |
Hex. Elastic Stop Nut M6 |
| 3310 |
250001131 |
Torx Truss PT K40 x 12 |
| 3400 |
708400626 |
Shadow Green, RH Front Rearview Mirror Trim |
| 3410 |
517306478 |
Clip |
| 3500 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 3505 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 3520 |
250200164 |
Flat washer M6 |
| 3600 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 3605 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 3620 |
250200164 |
Flat washer M6 |
| 3700a |
705014024 |
Black, Central Console Fairing |
| 3800 |
708400555 |
Front Switch Housing |
| 3900 |
708201070 |
Black, Headlights Central Fairing |
| 3910 |
517302785 |
Edge Clip |
| 4200 |
708400223 |
Carbon Black, Windshield Support |
| 4210 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 4215 |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 4220b |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 4230b |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 4235b |
205961060 |
Socket Head Screw M6 X 10, Scotch Grip |
| 4400a |
250000350 |
Torx Truss Screw M6 X 20 |
| 4400b |
250200164 |
Flat washer M6 |
| 4400c |
250200189 |
Rubber Washer M6 |
| 4400d |
250000958 |
Panel Nut M5 X 0.8 |
| 4400f |
250000455 |
Torx Screw M5 X 25 |
| 4400g |
293830206 |
LH Soft Shim Protector |
