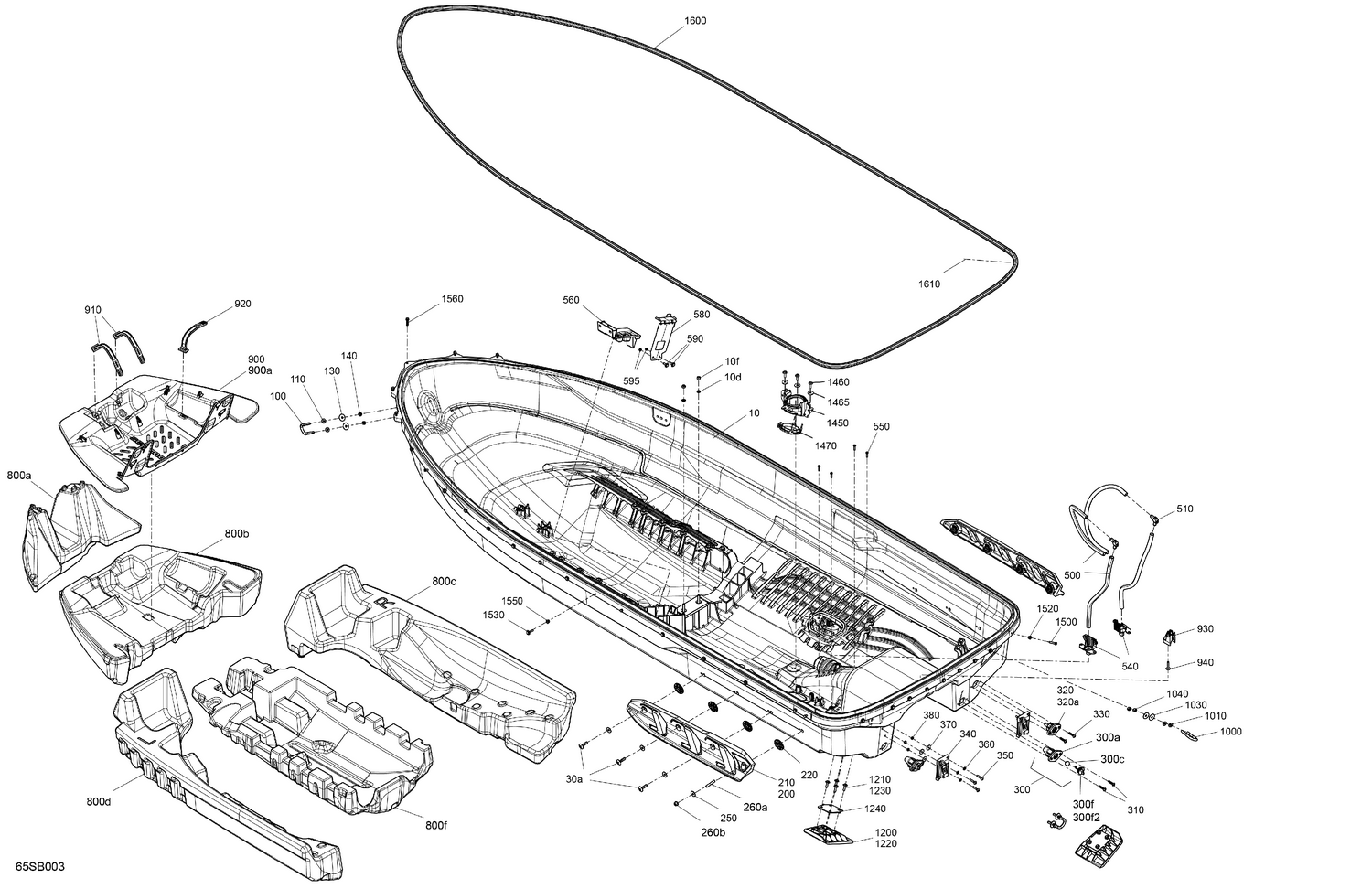

07- Body - Hull
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 10d | 234080600 | Flat Washer M8, Stainless |
| 10f | 232581200 | Hex. Elastic Nut M8 Brass |
| 30a | 250000994 | Torx-Head Screw M8 X 35 |
| 100 | 292000933 | U-Clamp |
| 110 | 293050001 | Flat Washer M8.5 x 18 |
| 130 | 250200175 | Flat Washer 8 mm, Stainless |
| 140 | 232581200 | Hex. Elastic Nut M8 Brass |
| 200 | 292001953 | RH Sponson |
| 210 | 292001954 | LH Sponson |
| 250 | 234082410 | Flat Washer 8 mm |
| 260a | 206285044 | Socket Set Screw M8 x 50 |
| 260b | 233081416 | Hex. Flange Nut M8 |
| 300a | 292002765 | Through Hull Fitting |
| 300c | 293830080 | Floating Ball |
| 300f2 | 293300067 | O-Ring |
| 310 | 250000879 | Plastite Torx Screw M6.81X30 |
| 320a | 292002765 | Through Hull Fitting |
| 330 | 250000879 | Plastite Torx Screw M6.81X30 |
| 340 | 292002113 | Ladder Attachment |
| 350 | 250000924 | Truss Cone Torx Screw M6 X 30 |
| 360 | 234061600 | Stainless Flat Washer M6 |
| 370 | 250200022 | Flat Washer M6.6 X 22 |
| 380 | 232561200 | Brass Elastic Stop Nut M6 |
| 500 | 219704393 | Polyurethane Hose 1000Mm Long |
| 510 | 293710152 | Fitting Elbow 90° |
| 540 | 269800956 | Pump Support |
| 550 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 560 | 292002395 | Battery Support |
| 580 | 292002434 | Battery Support |
| 590 | 250000965 | Hex Screw M6 X 20 |
| 595 | 232561200 | Brass Elastic Stop Nut M6 |
| 800a | 292002405 | Float Hull Front Upper |
| 800b | 292002399 | Float Hull Front |
| 800c | 292002229 | RH Center Float Hull |
| 800d | 292002230 | LH Center Float Hull |
| 800f | 292002298 | Float Hull Center |
| 900a | 292001868 | Trunk Shield |
| 910 | 269502417 | Strap |
| 920 | 269502417 | Strap |
| 930 | 270000988 | Strap Anchor |
| 940 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1000 | 292000933 | U-Clamp |
| 1010 | 293050001 | Flat Washer M8.5 x 18 |
| 1030 | 250200175 | Flat Washer 8 mm, Stainless |
| 1040 | 232581200 | Hex. Elastic Nut M8 Brass |
| 1200 | 292002102 | LH Trim Tab |
| 1210 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1220 | 292002103 | RH Trim Tab |
| 1230 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1240 | 277002171 | Gasket |
| 1450 | 292002619 | Transducer Support |
| 1460 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1465 | 279000336 | Flat Washer |
| 1470 | 292002564 | Gasket |
| 1500 | 250001183 | Hex Sems Screw M6X30 |
| 1520 | 233261200 | Nut Flange Elastic M6 |
| 1530 | 250001183 | Hex Sems Screw M6X30 |
| 1550 | 233261200 | Nut Flange Elastic M6 |
| 1560 | 243163060 | Hex. Flange Screw M6.81 X 30 |
| 1600 | 292002242 | Gasket |
