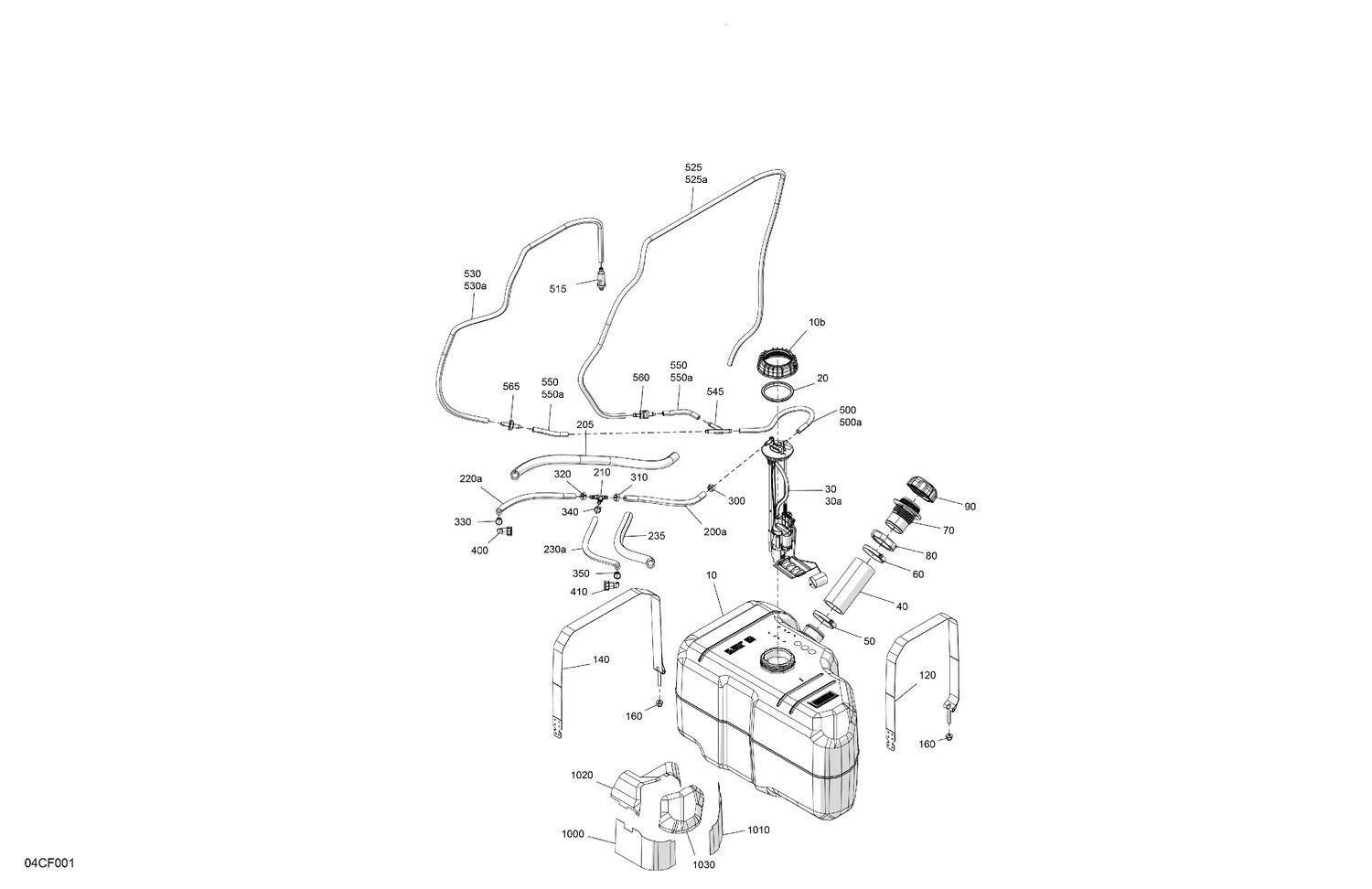

02- Engine - Fuel
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 709000328 | Fuel Pump Module Nut |
| 20 | 709000208 | Seal |
| 30a | 715900322 | Prefilter Fuel Pump Kit 86mm Long |
| 40 | 709001698 | Filler Neck Hose |
| 50 | 293650081 | Norma Clamp |
| 60 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 293600206 | Fuel Filler Neck Nut |
| 90 | 709000868 | Fuel Cap |
| 120 | 709001291 | Retaining Strap |
| 140 | 709001292 | Retaining Strap |
| 160 | 233281414 | Hex. Flange Elastic Nut M8 |
| 200a | 219704621 | Hose 7,94 MM ID |
| 205 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 210 | 709001329 | Y Fitting |
| 220a | 219704621 | Hose 7,94 MM ID |
| 230a | 219704621 | Hose 7,94 MM ID |
| 235 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 300 | 293650047 | Crimp Clamp, 15.3-706R |
| 310 | 293650047 | Crimp Clamp, 15.3-706R |
| 320 | 293650047 | Crimp Clamp, 15.3-706R |
| 330 | 293650047 | Crimp Clamp, 15.3-706R |
| 340 | 293650047 | Crimp Clamp, 15.3-706R |
| 350 | 293650047 | Crimp Clamp, 15.3-706R |
| 400 | 275500921 | Quick Disconnect |
| 410 | 275500921 | Quick Disconnect |
| 500a | XXX | Not Available As Spare Parts |
| 515 | 709001120 | Filter |
| 525a | XXX | Not Available As Spare Parts |
| 530a | XXX | Not Available As Spare Parts |
| 545 | 293710059 | Y-Fitting This part replaces 293710222. |
| 550a | XXX | Not Available As Spare Parts |
| 560 | 513034263 | Check Valve |
| 565 | 275501246 | Check Valve |
| 1000 | 707002670 | Heat Shield |
| 1010 | 707002671 | Heat Shield |
| 1020 | 707002673 | Heat Shield |
