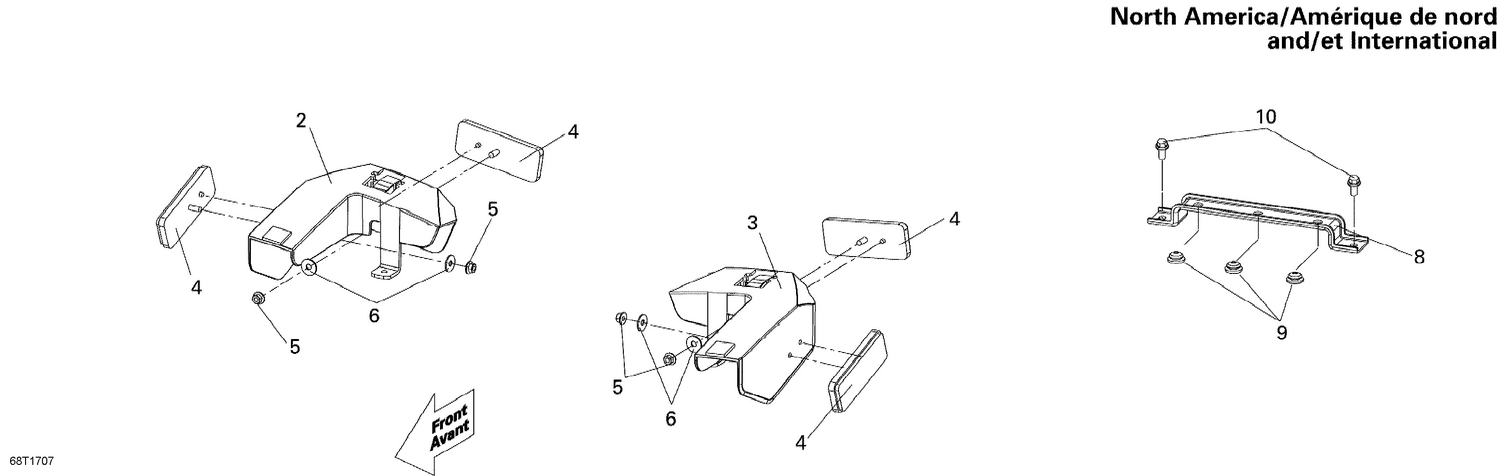

09- Rear Reflectors North America, International
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 2 | S8031ARCB000 | RH Reflector Support |
| 3 | S8031BRCB000 | LH Reflector Support |
| 4 | S33741M9A000 | Reflector |
| 5 | S9405005000 | Flanged Nut 5 mm |
| 6 | S9410305800 | Washer |
| 8 | S5032ARCA000 | BATTERY BAND - Call your local BRP dealership This part replaces S50324RCA000. |
| 9 | S5032ARCA000 | BATTERY BAND - Call your local BRP dealership This part replaces S83618MKA000. |
