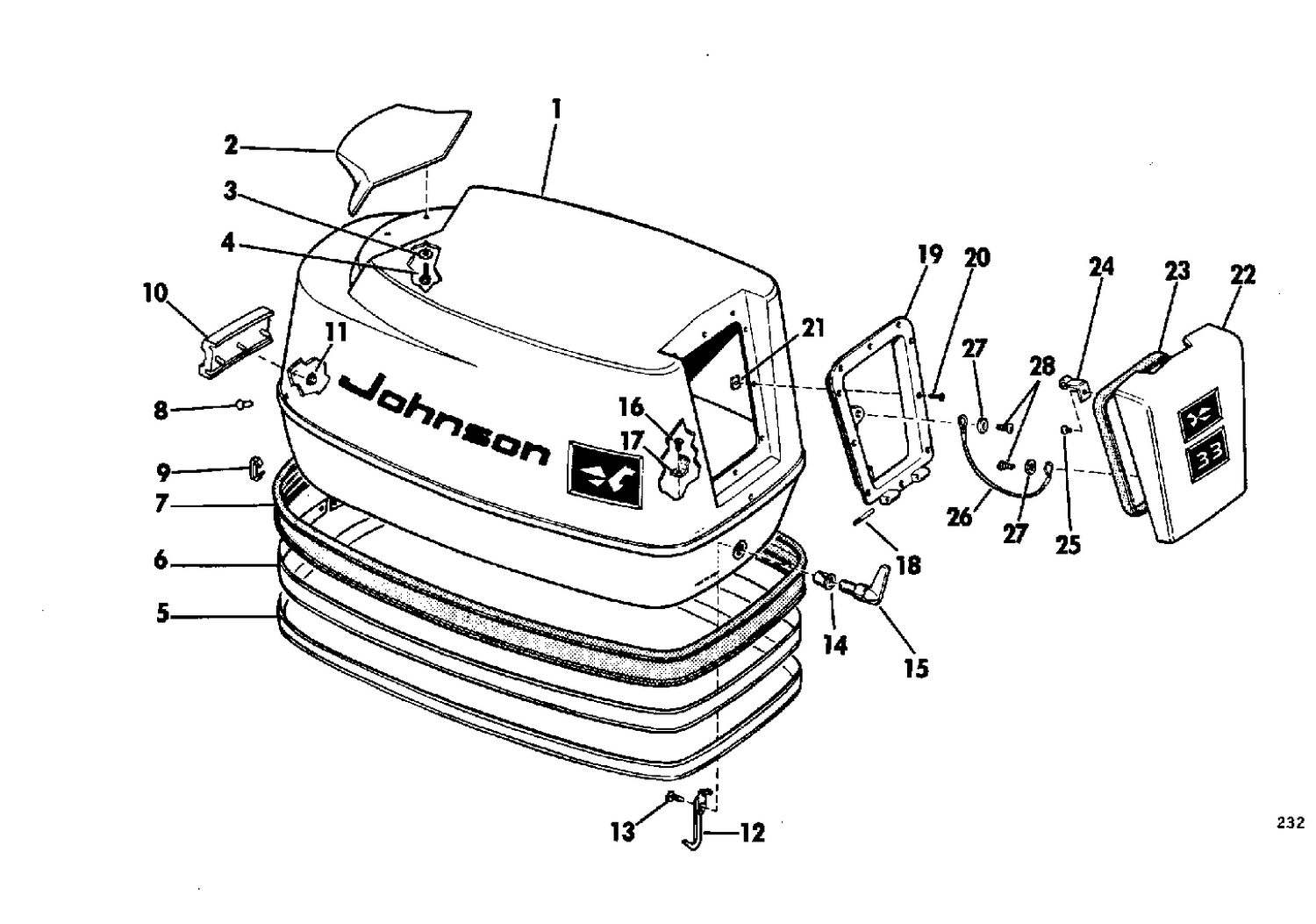

| Ref | Part Number | Description |
|---|
| 1 |
0382609 |
MOTOR COVER ASSY. |
| 1 |
0382610 |
MOTOR COVER ASSY. |
| 2 |
0307678 |
HANDLE, Tilt |
| 3 |
0306407 |
LOCCKWASHER,Cover latch |
| 5 |
0312547 |
INSERT, Molding strip |
| 6 |
0310278 |
BANDING TRIM,Molding strip |
| 7 |
0310279 |
MOLDING STRIP, Cover |
| 8 |
0310570 |
RIVERT, Motor cover |
| 9 |
0310227 |
CLIP, Banding |
| 10 |
0312722 |
COVER, Molding, rear |
| 11 |
0204307 |
FASTENER |
| 12 |
0378322 |
LINK & HOOK |
| 13 |
0303311 |
SCR,Clamp,eng cable |
| 14 |
0553769 |
BUSHING |
| 15 |
0308293 |
HANDLE, Front latch |
| 16 |
0307907 |
SCREW |
| 17 |
0307908 |
SPRING |
| 18 |
0306106 |
HINGE PIN |
| 19 |
0379117 |
FRAME & FASTENER ASSY |
| 22 |
0382686 |
FRONT DOOR & TRANSFER ASSEMBLY |
| 22 |
0382687 |
FRONT DOOR & TRANSFER ASSEMBLY |
| 23 |
0307819 |
SEAL, Door |
| 26 |
0379116 |
STRAP, Door |
| 27 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 28 |
0307426 |
SCREW |
| 0382297 |
0382297 |
OWNER'S MANUAL |
| 0382850 |
0382850 |
DECAL SET |
| 0382851 |
0382851 |
DECAL SET |
