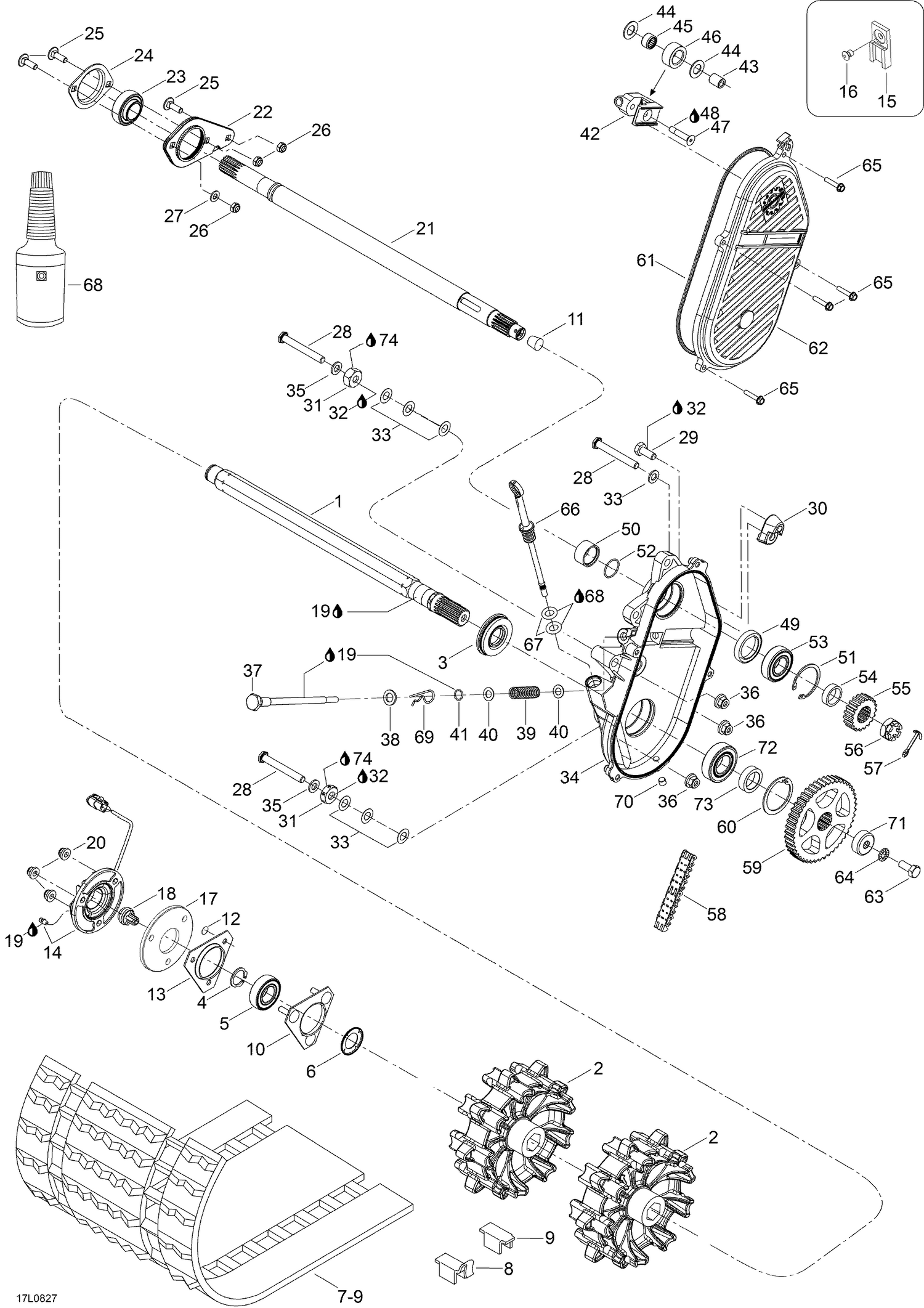

| Ref | Part Number | Description |
|---|
| 1 |
501027400 |
DRIVE AXLE - Call your local BRP dealership |
| 2 |
504152503 |
DOUBLE SPROCKET, 9 TEETH - Call your local BRP dealership |
| 3 |
504151918 |
Oil seal |
| 4 |
31001 |
Circlip |
| 5 |
293350060 |
Ball Bearing This part replaces 504152009. |
| 6 |
501017400 |
BEARING PROTECTOR - Call your local BRP dealership |
| 8 |
5318330 |
Guide clip |
| 9 |
5318329 |
Cleat |
| 10 |
504151860 |
BEARING HOUSING - Call your local BRP dealership |
| 11 |
414784800 |
CORK - Call your local BRP dealership |
| 12 |
414484400 |
O-ring |
| 13 |
501025000 |
FLANGE - Call your local BRP dealership |
| 14 |
504152345 |
Speed sensor flange |
| 15 |
270000141 |
Clip This part replaces 515175917. |
| 16 |
36005 |
Rivet |
| 17 |
5446641 |
Shim plate |
| 18 |
504152040 |
MAGNETIC ADAPTOR - Call your local BRP dealership |
| 19 |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 21 |
504152018 |
COUNTER SHAFT - Call your local BRP dealership |
| 22 |
504151968 |
SPACER - Call your local BRP dealership |
| 23 |
415129555 |
Ens Roulement Bille*Ball Bearing Kit This part replaces 504152535. |
| 24 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 25 |
40312 |
Carriage bolt M8 x 22 |
| 26 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 27 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 28 |
250000151 |
HEX. SCREW M10 X 80 - Call your local BRP dealership |
| 29 |
40040 |
Hex. screw M10 x 25 |
| 30 |
504152252 |
Sleeve |
| 31 |
504083800 |
Spacer |
| 32 |
293800060 |
Loctite 243, 10ml |
| 33 |
504073700 |
WASHER - Call your local BRP dealership |
| 34 |
504152482 |
CHAINCASE - Call your local BRP dealership |
| 35 |
605620000 |
Washer 10mm |
| 36 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 37 |
504151946 |
Adjusting screw |
| 38 |
503189148 |
Hardened Washer |
| 39 |
504151945 |
SPRING - Call your local BRP dealership |
| 40 |
503125900 |
HARD WASHER - Call your local BRP dealership |
| 41 |
504151954 |
O-RING - Call your local BRP dealership |
| 42 |
504151940 |
Chain tensioner |
| 43 |
504080200 |
SPACER - Call your local BRP dealership |
| 44 |
504080300 |
WASHER - Call your local BRP dealership |
| 45 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 46 |
414531300 |
ROLLER - Call your local BRP dealership |
| 47 |
732601144 |
SCREW - Call your local BRP dealership |
| 48 |
293800005 |
Loctite 271,10ml |
| 49 |
293200158 |
Oil Seal This part replaces 415049300. |
| 50 |
507031500 |
SPACER - Call your local BRP dealership |
| 51 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 52 |
414876700 |
O-RING - Call your local BRP dealership |
| 53 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 54 |
504147200 |
SHIM - Call your local BRP dealership |
| 55 |
504139700 |
SPROCKET, 24 TEETH - Call your local BRP dealership |
| 56 |
250000012 |
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership |
| 57 |
41003 |
Cotter pin |
| 58 |
504151857 |
Drive chain (13/74 links) |
| 60 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 61 |
415046400 |
O-ring |
| 62 |
504152471 |
CHAINCASE COVER - Call your local BRP dealership |
| 63 |
40040 |
Screw M10 x 25 |
| 64 |
20068 |
Lock washer 10mm |
| 65 |
40340 |
Hex. flanged screw M6 x 30 |
| 66 |
504151703 |
FILLER CAP ASS'Y - Call your local BRP dealership |
| 67 |
414969400 |
O-RING - Call your local BRP dealership |
| 68 |
320007) |
Synthetic chaincase oil, 12 x 355 ml |
| 69 |
414575600 |
Hair Pin |
| 70 |
504151921 |
Plug |
| 71 |
504152460 |
CAP - Call your local BRP dealership |
| 72 |
504152005 |
Ball bearing |
| 73 |
504152058 |
Shim |
