Home / BRP / 2012 / MX Z / MX Z X 600RS, 2012 000BMCA00 000BMCB00 / 01- Engine And Engine Support

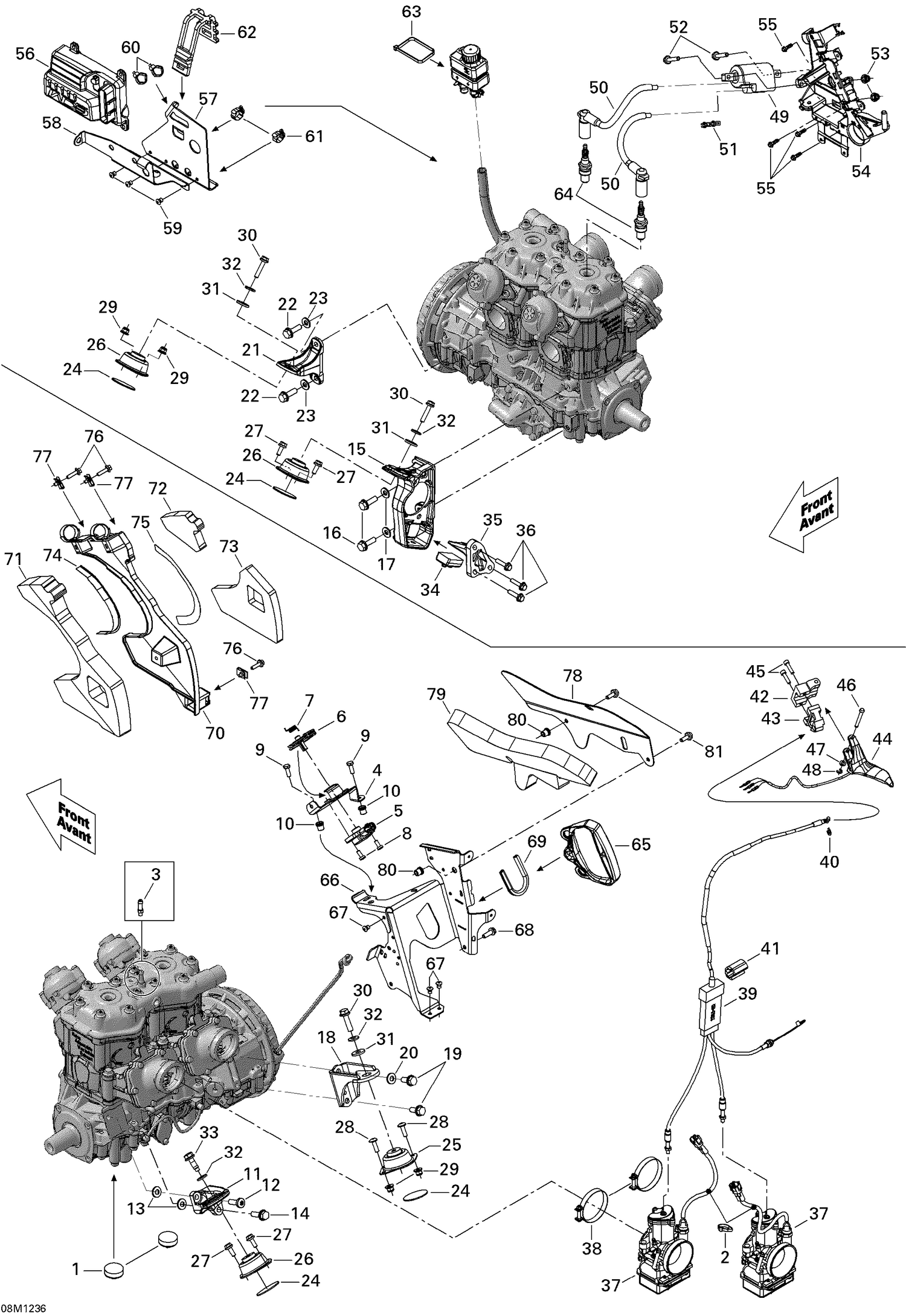

01- Engine And Engine Support

01- Engine And Engine Support

Parts (80)

RefPart NumberDescription
1 512059738 Stopper
2 414115200 Tie-Rap 180 mm
3 420924724 Hose Nipple
4 512060336 TPS SUPPORT - Call your local BRP dealership
5 404162079 Sensor Ass'y
6 512060335 CAP CAM - Call your local BRP dealership
7 512060638 CAM SPRING - Call your local BRP dealership
8 208651241 PHILLIPS SCREW M5 X 12 - Call your local BRP dealership
9 207361644 Hex. Screw M6 X 16, Scotch Grip
10 293450275 Insert This part replaces 415107300.
11 512060478 Rear Support, PTO This part replaces 512060173.
12 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
13 234281474 Conical Spring Washer M8
14 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
15 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.
16 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
17 234281474 Conical Spring Washer M8
18 512060568 REAR ENGINE SUPPORT, MAG - Call your local BRP dealership
19 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
20 234281474 Conical Spring Washer M8
21 512060108 FRONT SUPPORT, MAG - Call your local BRP dealership
22 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
23 234281474 Conical Spring Washer M8
24 512060410 RUBBER WASHER - Call your local BRP dealership
25 512060772 RUBBER MOUNT - Call your local BRP dealership
26 512060385 Rubber Mount
27 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
28 250000770 Hex. Socket Screw M6 X 20 This part replaces 250000335.
29 233261414 Hex. Flange Elastic Nut M6 x 1.0
30 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
31 503183200 Yellow, Washer
32 234281474 Conical Spring Washer M8
33 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
34 512060766 Stopper
35 512060576 Stopper Support
36 207562544 Hex. Flange Screw M6 X 25
37 403138816 Carburator, TMX38-73
38 512059835 Gemi Clamp
39 512060550 THROTTLE CABLE - Call your local BRP dealership
40 414274500 Circlip
41 512060313 Protector
42 512059538 UPPER HOUSING - Call your local BRP dealership
43 512059537 Lower Housing
44 512060431 HANDLE ASS'Y - Call your local BRP dealership
45 205052544 Socket Screw M5 X 25
46 414438700 Lever Pin
47 234051600 Flat Washer M5, Stainless
48 293370050 Circlip
49 512059968 Ignition Coil
50 512060291 Cable
51 410914600 Plastic Clip, Spark Plug Wire
52 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
53 233261414 Hex. Flange Elastic Nut M6 x 1.0
54 512060925 COILS SUPPORT - Call your local BRP dealership This part replaces 512060746.
55 241151640 Hex. Flange Screw K50 X 2.24 X 16
56 512060804 CALIBRATED MODULE - Call your local BRP dealership
57 512060337 ECM SUPPORT - Call your local BRP dealership
58 512060379 TANK SUPPORT - Call your local BRP dealership
59 390909200 Avex Rivet
60 414115200 Tie-Rap 180 mm
61 293650172 Tridon Gear Clamp
62 570069700 LATCH - Call your local BRP dealership
63 293750008 Tie Wrap 368 mm
64 512059552 Spark Plug NGK BR9ECS-5
65 512060136 Starter Grip
66 512060770 GRIP SUPPORT - Call your local BRP dealership
67 390909200 Avex Rivet
68 210262050 Hexagonal Head Screw This part replaces 210262080.
69 219704405 TRIM 30000MM LONG - Call your local BRP dealership
70 512060339 NOISE SHIELD - Call your local BRP dealership
71 512060343 Interior Noise Foam
72 512060344 Upper Exterior Noise Foam
73 512060362 LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership
74 512060574 Heat Shield
75 512060575 Heat Shield
76 207652044 Hex.Flange Screw M5 X 20
77 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
78 512060492 REAR NOISE SHIELD - Call your local BRP dealership
79 512060381 Rear Noise Foam
80 293450275 Insert This part replaces 415107300.
