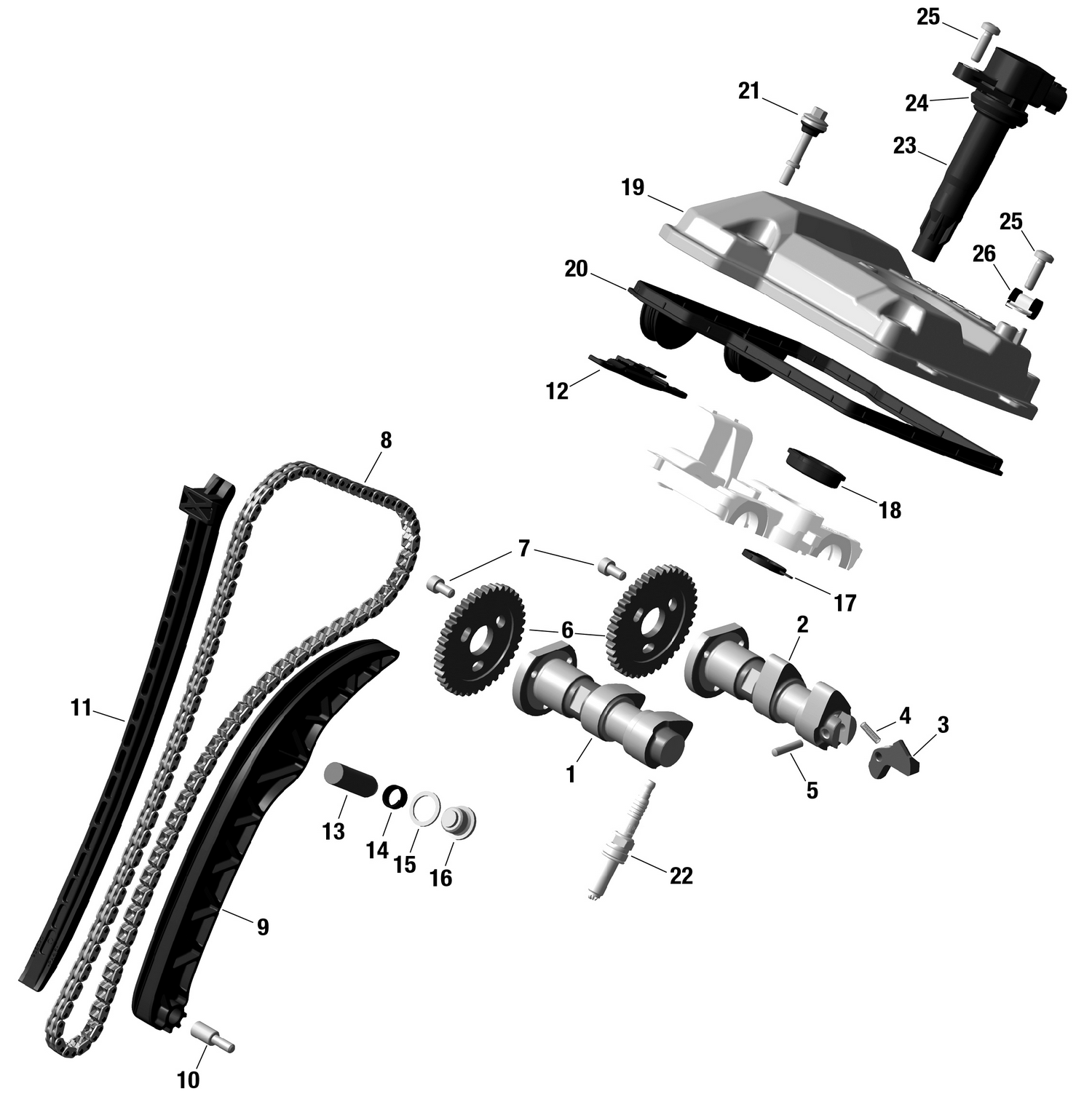

01- ROTAX - Valve Train
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420281571 | Intake Camshaft -5/53 |
| 3 | XXX | Not Available As Spare Parts |
| 4 | XXX | Not Available As Spare Parts |
| 5 | XXX | Not Available As Spare Parts |
| 6 | 420254446 | Camshaft Sprocket 38 Teeth |
| 7 | 420840032 | Allen Screw M6 X 12 |
| 8 | 420297075 | Silent Chaine |
| 9 | 420936530 | Chain Tension Guide |
| 10 | 420240945 | Bearing Screw M6 |
| 11 | 420936520 | Chain Guide |
| 12 | 420936540 | Upper Chain Guide |
| 13 | 420236395 | Chain Tensioner This part replaces 420236256. |
| 14 | 420238732 | Compression Spring |
| 16 | 420840591 | Plug Screw |
| 19 | 420610445 | Valve Cover |
| 21 | 420440568 | Hex Screw M6 X 30 |
| 22 | 715900785 | Spark Plug NGK LMAR8AI-8 This part replaces 420897096. |
| 24 | 420201430 | Protection Cap |
| 25 | 420441383 | Torx Flange Screw M6 X 20 |
