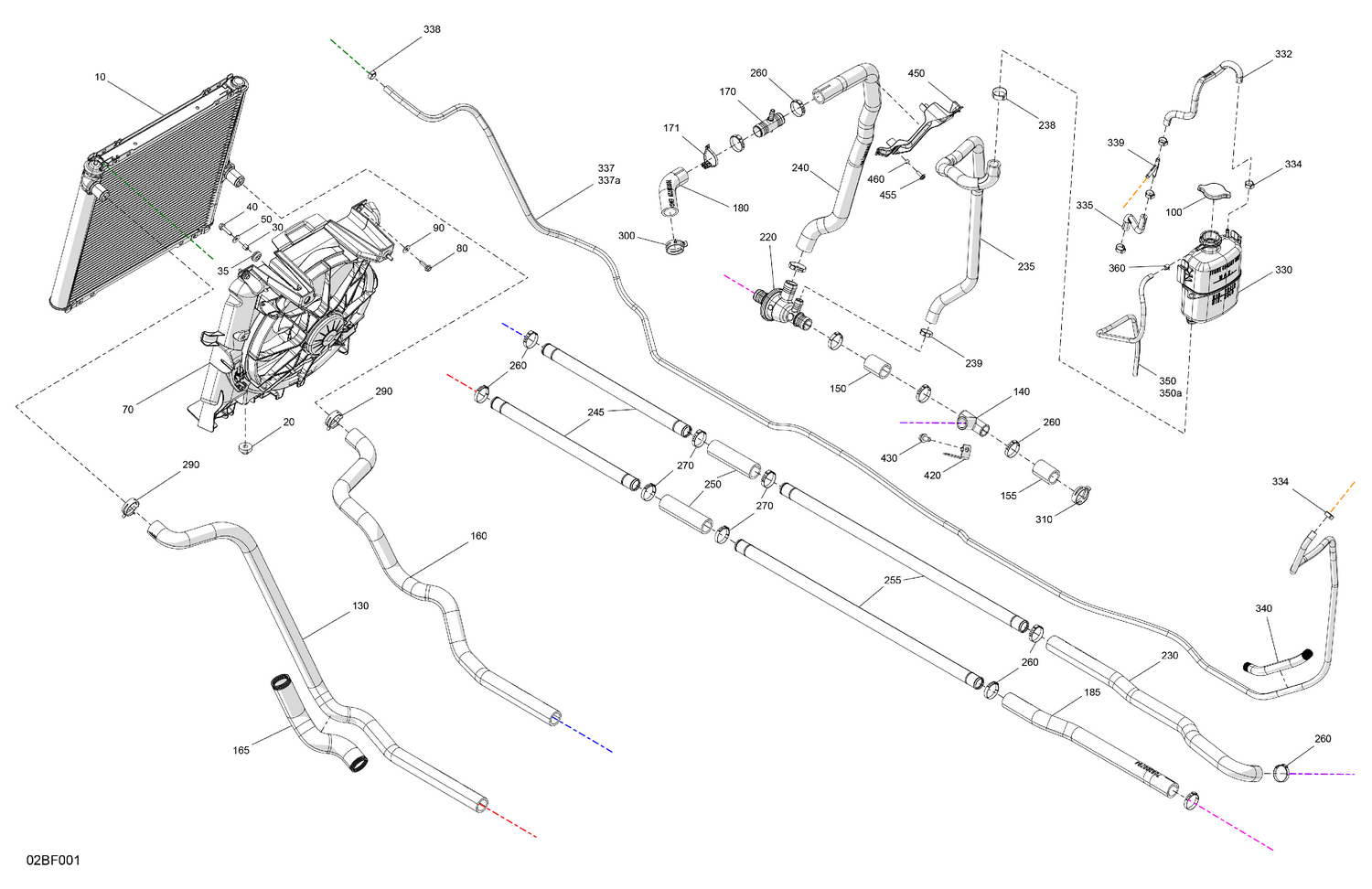

02- Engine - Cooling
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709200703 | Radiator |
| 20 | 709200285 | Grommet |
| 30 | 293900105 | Bushing |
| 35 | 293720130 | Overmolded Grommet |
| 40 | 207662544 | Hex. Flange Screw M6 X 25 |
| 50 | 234062410 | Flat Washer 6 mm |
| 70 | 709200665 | Fan Ass'y |
| 80 | 207662044 | Hex. Flange Screw M6 X 20 |
| 90 | 234062410 | Flat Washer 6 mm |
| 100 | 709200207 | Radiator Pressure Cap |
| 130 | 709200793 | Radiator Inlet hose |
| 140 | 509001313 | T-Fitting |
| 150 | 709200672 | Pump Hose |
| 155 | 709200672 | Pump Hose |
| 160 | 709200797 | Radiator Outlet Hose |
| 165 | 219704428 | Tubing 35 MM 1000MM Long |
| 170 | 509000510 | T-Fitting |
| 171 | 293750108 | Tie Wrap |
| 180 | 709200729 | Intermediate Outlet Hose |
| 185 | 709200794 | Intermediate Inlet Hose |
| 220 | 709200967 | Thermostat Housing |
| 230 | 709200795 | Radiator Hose |
| 235 | 709201493 | Coolant Tank Hose |
| 238 | 293650165 | Oetiker Gear Clamp |
| 239 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 240 | 709200796 | Thermostat Inlet Hose |
| 245 | 709200664 | Heater Tubing |
| 250 | 709200742 | Hose |
| 255 | 709200657 | Heater Tubing |
| 260 | 293650332 | Crimp Clamp |
| 270 | 293650332 | Crimp Clamp |
| 290 | 293650166 | Norma Spring Clamp |
| 300 | 293650166 | Norma Spring Clamp |
| 310 | 293650166 | Norma Spring Clamp |
| 330 | 709201323 | Coolant Tank |
| 332 | 709200718 | Bleeding Hose |
| 334 | 293650047 | Crimp Clamp, 15.3-706R |
| 335 | 709200717 | Bleeding Hose |
| 337a | XXX | Not Available As Spare Parts |
| 338 | 293650042 | Oetiker Clamp |
| 339 | 293710059 | Y-Fitting This part replaces 293710222. |
| 340 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 350a | XXX | Not Available As Spare Parts |
| 360 | 414554800 | Spring Clamp |
| 420 | 709201348 | Hose Support |
| 430 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 450 | 709200746 | Support |
| 455 | 250000959 | Screw PT Type K-50 X 16 |
