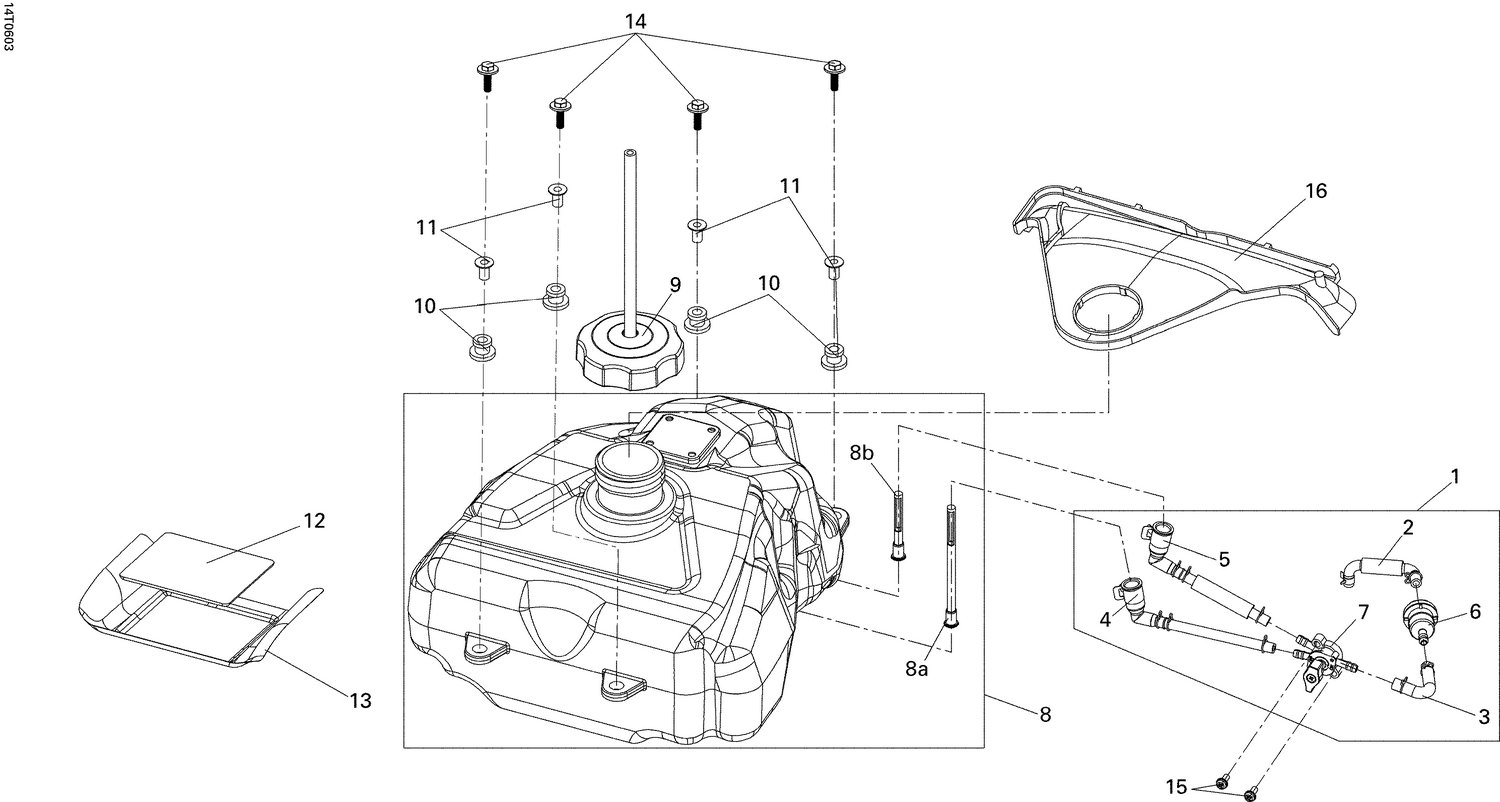

02- Fuel System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | NASP/NDPR | Not Available As Spare Parts |
| 2 | S16702RFB000 | Hose This part replaces S16702RCA000. |
| 3 | S16702RFB000 | Hose This part replaces S16704RCA000. |
| 4 | S16707RCA000 | Fuel Tube |
| 5 | S16708RCA000 | Fuel Tube |
| 6 | S16910GN5911M1 | Fuel Strainer This part replaces S16910GN5911A. |
| 7 | V16950DGF010LL | Fuel Valve This part replaces S16950RCA010. |
| 8 | S17500RCB000 | Fuel Tank This part replaces S17500RCA000. |
| 8a | S17501RCA000 | Fuel Strainer A |
| 8b | S17502RCA000 | Fuel Strainer B |
| 9 | S17620RCB000 | Fuel Tank Cap |
| 10 | S80103RCA000 | Fuel Tank Rubber Bushing |
| 11 | S80104RCA000 | Fuel Tank Collar |
| 12 | S80101RCA000 | Heat Shield A |
| 13 | S80102RCA001 | Heat Shield B |
| 14 | S934040603007 | Washer Bolt M6 X 30 |
| 15 | S938910501807 | Washer Bolt M5 X 18 |
