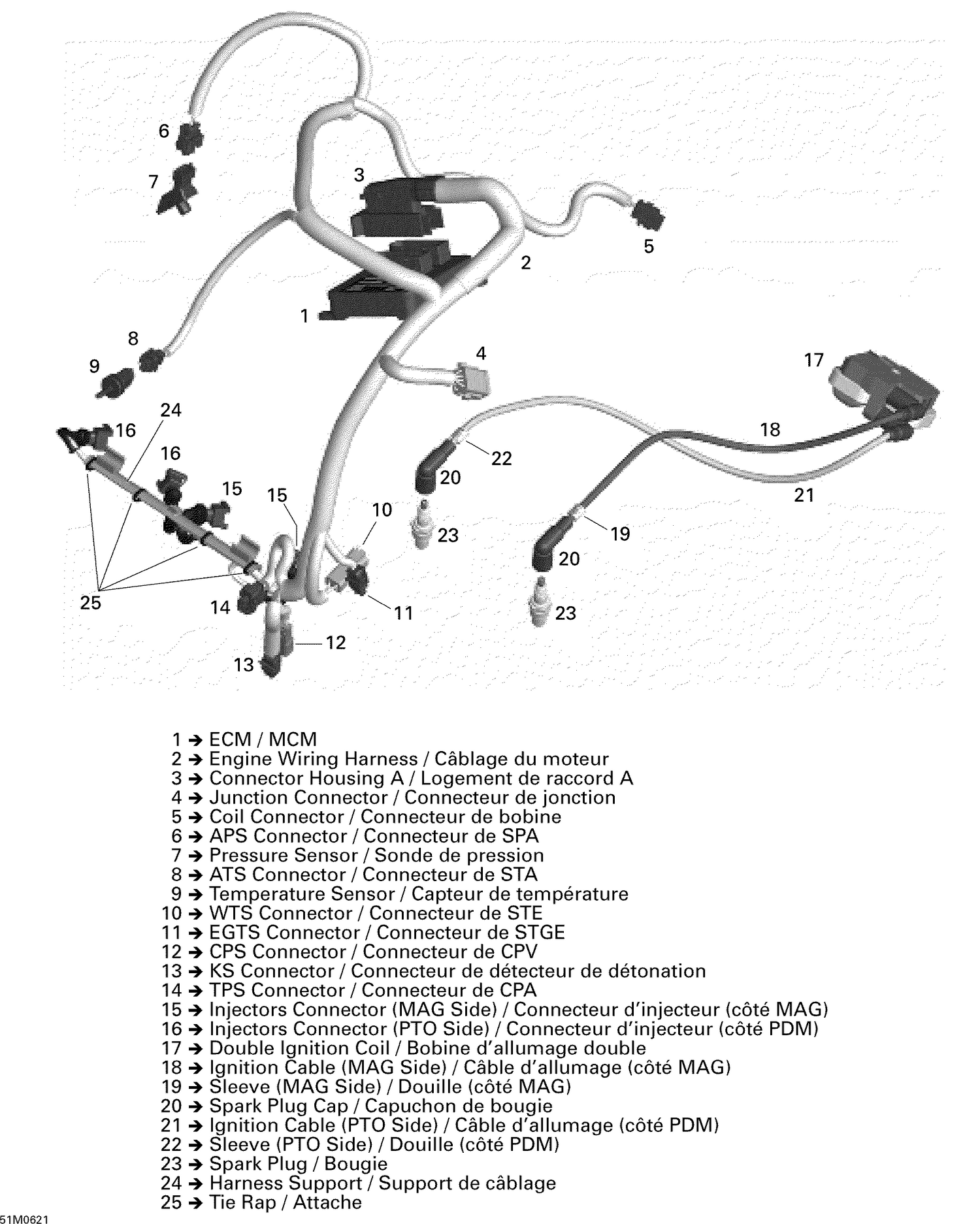

| Ref | Part Number | Description |
|---|
| 2 |
420664550 |
ENGINE WIRING HARNESS - Call your local BRP dealership |
| 3 |
Not |
Available As Spare Part - Connector Housing A |
| 4 |
Not |
Available As Spare Part - Junction Connector |
| 5 |
Not |
Available As Spare Part - Coil Connector |
| 6 |
Not |
Available As Spare Part - APS Connector |
| 7 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 8 |
Not |
Available As Spare Part - ATS Connector |
| 9 |
420966970 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 10 |
Not |
Available As Spare Part - WTS Connector |
| 11 |
Not |
Available As Spare Part - EGTS Connector |
| 12 |
Not |
Available As Spare Part - CPS Connector |
| 13 |
Not |
Available As Spare Part - KS Connector |
| 14 |
Not |
Available As Spare Part - TPS Connector |
| 15 |
Not |
Available As Spare Part - Injectors Connector, MAG Side |
| 16 |
Not |
Available As Spare Part - Injectors Connector, PTO Side |
| 17 |
278001546 |
Ignition Coil This part replaces 420266070. |
| 18 |
420665335 |
Ignition Cable, Mag Side |
| 19 |
420660632 |
SLEEVE, MAG SIDE - Call your local BRP dealership |
| 20 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 21 |
420665333 |
Spark Plug Cable, 790 mm, Rear This part replaces 420665330. |
| 22 |
420660630 |
SLEEVE, PTO SIDE - Call your local BRP dealership |
| 23 |
415128524 |
Spark Plug NGK BR9ECS |
| 24 |
420960880 |
HARNESS SUPPORT - Call your local BRP dealership |
