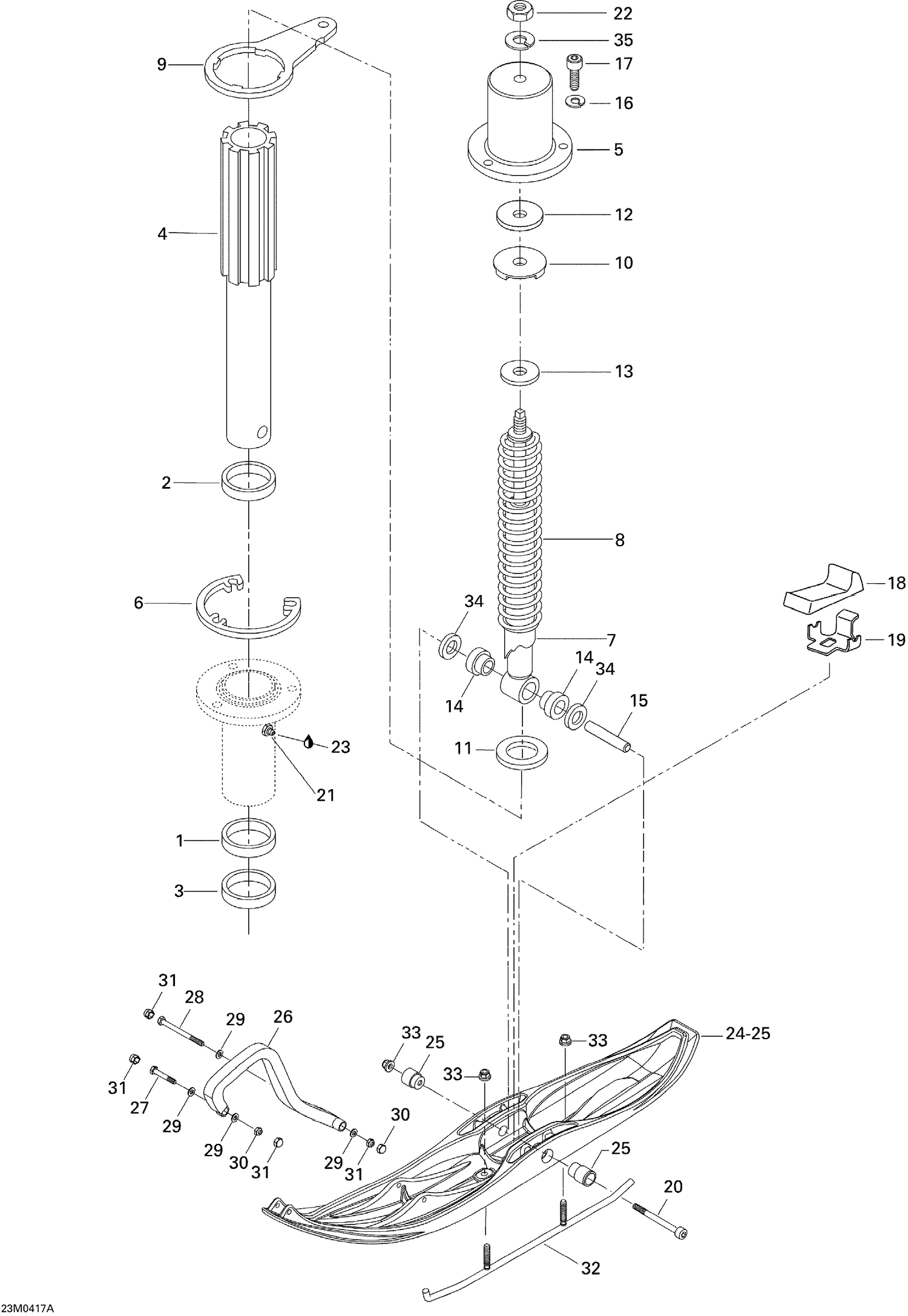

| Ref | Part Number | Description |
|---|
| 1 |
414803200 |
Lower Cushion |
| 2 |
414803100 |
Upper Cushion |
| 3 |
316373 |
Seal - Call your local BRP dealership This part replaces M316373. |
| 4 |
M5243952 |
Ski Leg |
| 5 |
605249285 |
Welded Cover |
| 6 |
503145600 |
SPACER - Call your local BRP dealership |
| 7 |
414803600a |
Shock |
| 8 |
M5240897 |
Spring |
| 9 |
5340383 |
Steering Arm 8Te This part replaces M5340383. |
| 10 |
570025800 |
Stopper |
| 11 |
549493 |
Washer This part replaces M549493. |
| 12 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M5440399. |
| 13 |
605455680 |
Absorberfibber washer - Call your local BRP dealership This part replaces M549492. |
| 14 |
572034500 |
Cushion |
| 15 |
505073209 |
Ski Axle This part replaces 605348921. |
| 16 |
234181401 |
Lock Washer 8 mm |
| 17 |
205082044 |
Socket Head Screw M8 X 20 |
| 18 |
605348439 |
RUBBER STOPPER - Call your local BRP dealership |
| 19 |
605348437 |
PLATE SUPPORT - Call your local BRP dealership |
| 20 |
40225 |
Allen Screw M10x140 8.8zn(1=10pcs) This part replaces M40225. |
| 21 |
M34019 |
Grease Fitting |
| 22 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 23 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 25 |
605348392 |
Bushing |
| 26 |
505070963 |
Black, Handle |
| 27 |
207085044 |
Hex. Screw M8 X 50 |
| 28 |
207089044 |
Hex. Screw M8 X 90 This part replaces M40264. |
| 29 |
234081410 |
Flat Washer 8 mm |
| 30 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 31 |
28056 |
Cover This part replaces M28056. |
| 32 |
860202822 |
Carbide Round Runner Kit This part replaces 605349311. |
| 33 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074. |
| 34 |
605448594 |
BUSHING - Call your local BRP dealership |
