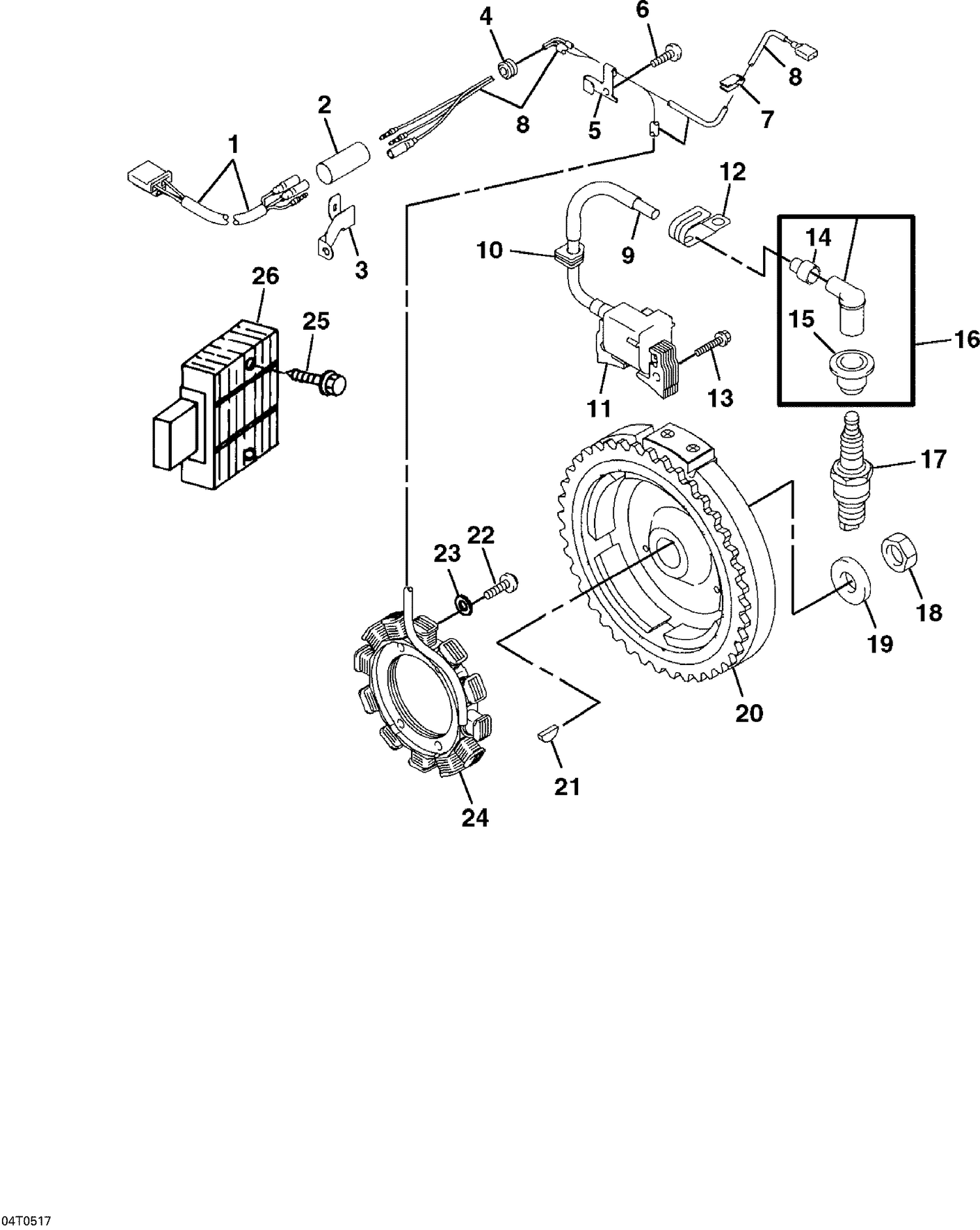

03- Magneto
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DW40451 | Wiring Harness |
| 2 | DW40454 | Tube |
| 3 | DW40458 | Wiring Clamp |
| 4 | DW40455 | Grommet |
| 5 | DW40456 | Wiring Clamp |
| 6 | DM95848 | Screw |
| 7 | DW40457 | Wiring Clamp |
| 8 | DM126574 | Wiring Lead 300mm |
| 9 | DUP04772 | Tubing |
| 10 | DM70118 | Grommet |
| 11 | DUP04720 | Ignition Coil |
| 12 | DM70076 | Wiring Clamp |
| 13 | DM88483 | Screw M5 X 25 |
| 14 | DPT10001 | Grommet |
| 15 | DW40450 | Cover |
| 17 | DM802138 | Spark Plug Bpr5Es |
| 18 | DM73821 | Nut M16 |
| 19 | DM70280 | Washer M16 |
| 20 | DAM133556 | Flywheel |
| 21 | DM77843 | Shaft Key |
| 22 | D21M7206 | Screw M6X20 |
| 23 | D24M7267 | Washer |
| 24 | DM119147 | Field Winding Coil |
| 25 | D37M7247 | Hex. Screw M6 X 45 |
