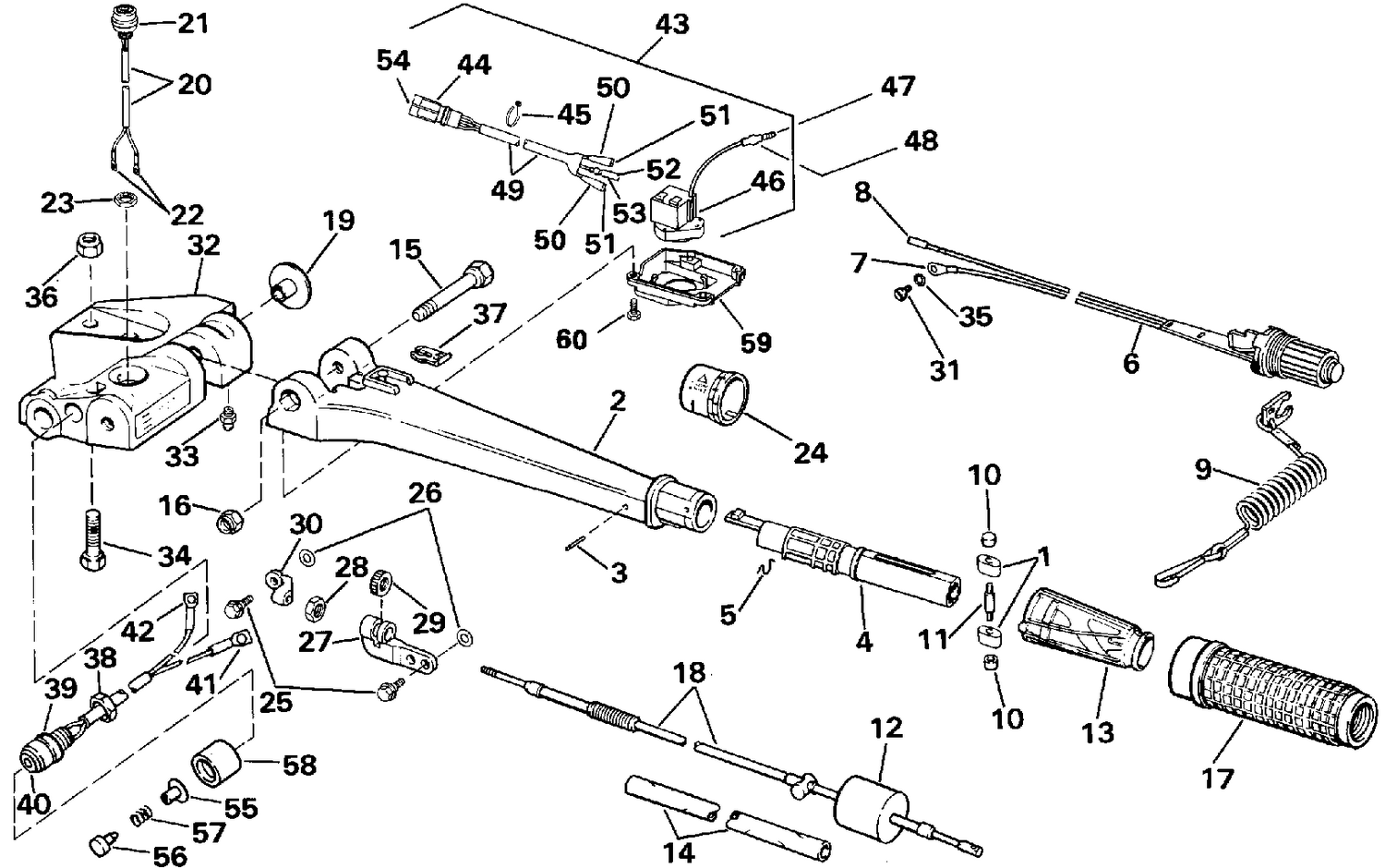

| Ref | Part Number | Description |
|---|
| 6 |
0398692 |
IDLE STOP SWITCH ASSY. This part replaces 0583974. |
| 13 |
0329882 |
GRIP&HELIX AY |
| 14 |
0512614 |
SLEEVE, Throttle cable & lead wire |
| 17 |
0395240 |
GRIP ASSY ., |
| 18 |
0397002 |
THROTTLE CABLE ASSY. |
| 25 |
0326618 |
SCREW, Clamp |
| 27 |
0397129 |
CONNECTOR KIT |
| 30 |
0325715 |
CONNECTOR, Throttle cable |
| 32 |
0334642 |
BRACKET, Steering handle This part replaces 0330242. |
| 43 |
0583934 |
CABLE & HORN, VRO |
| 46 |
0585992 |
HORN This part replaces 0583931. |
| 49 |
0583935 |
CABLE ASSEMBLY |
| 53 |
0510136 |
SLEEVE |
| 57 |
0313584 |
SPRING |
| 59 |
0334942 |
COVER, Cable & horn |
