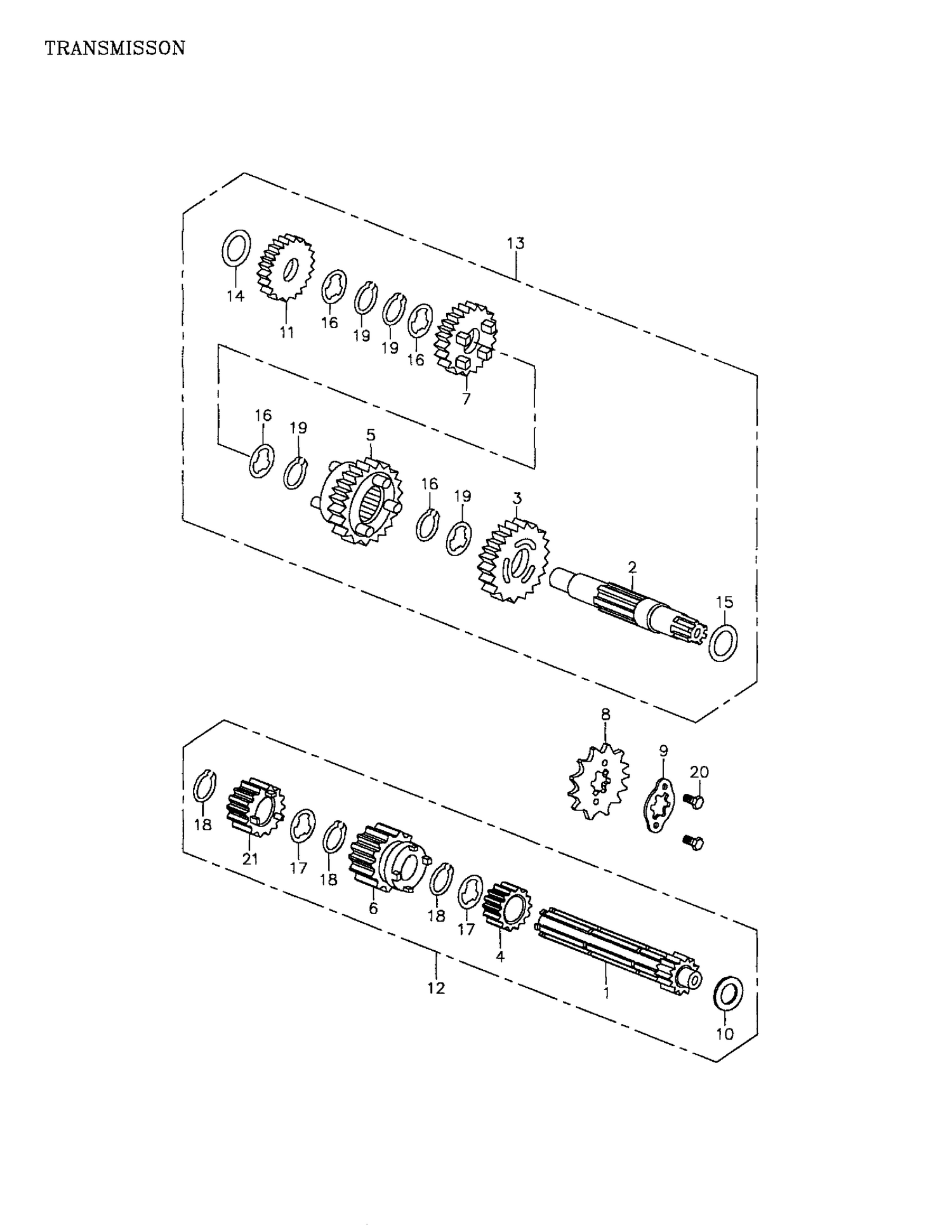

05- Transmission
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A23211152000 | Main Shaft |
| 2 | A23221152000 | Counter Shaft |
| 3 | A23421152000 | C-1 Gear |
| 4 | A23441152000 | M-2 Gear |
| 5 | A23451152000 | C-2 GEAR - Call your local BRP dealership |
| 6 | A23461152000 | M-3 Gear |
| 7 | A23471152000 | C-3 Gear |
| 8 | A23802152000 | DRIVE SPROCKET ASSY. 13T - Call your local BRP dealership |
| 9 | A23811152000 | Drive Sprocket Fixing Plate |
| 10 | A904511426005 | Thrust Washer |
| 11 | A23491152000 | C-4 Gear |
| 12 | A23202152000 | MAIN SHAFT ASS'Y - Call your local BRP dealership |
| 13 | A23201152000 | Counter Shaft Ass'y |
| 14 | A904511426010 | Thrust Washer |
| 15 | A904511724005 | Thrust Washer |
| 16 | A904552024012 | Soline Washer |
| 17 | A904551721012 | Soline Washer |
| 18 | A945111700G | External Circlip |
| 19 | A945112000S | External CirClip |
| 20 | A920000600810 | Hex. Bolt M6 X 8 |
