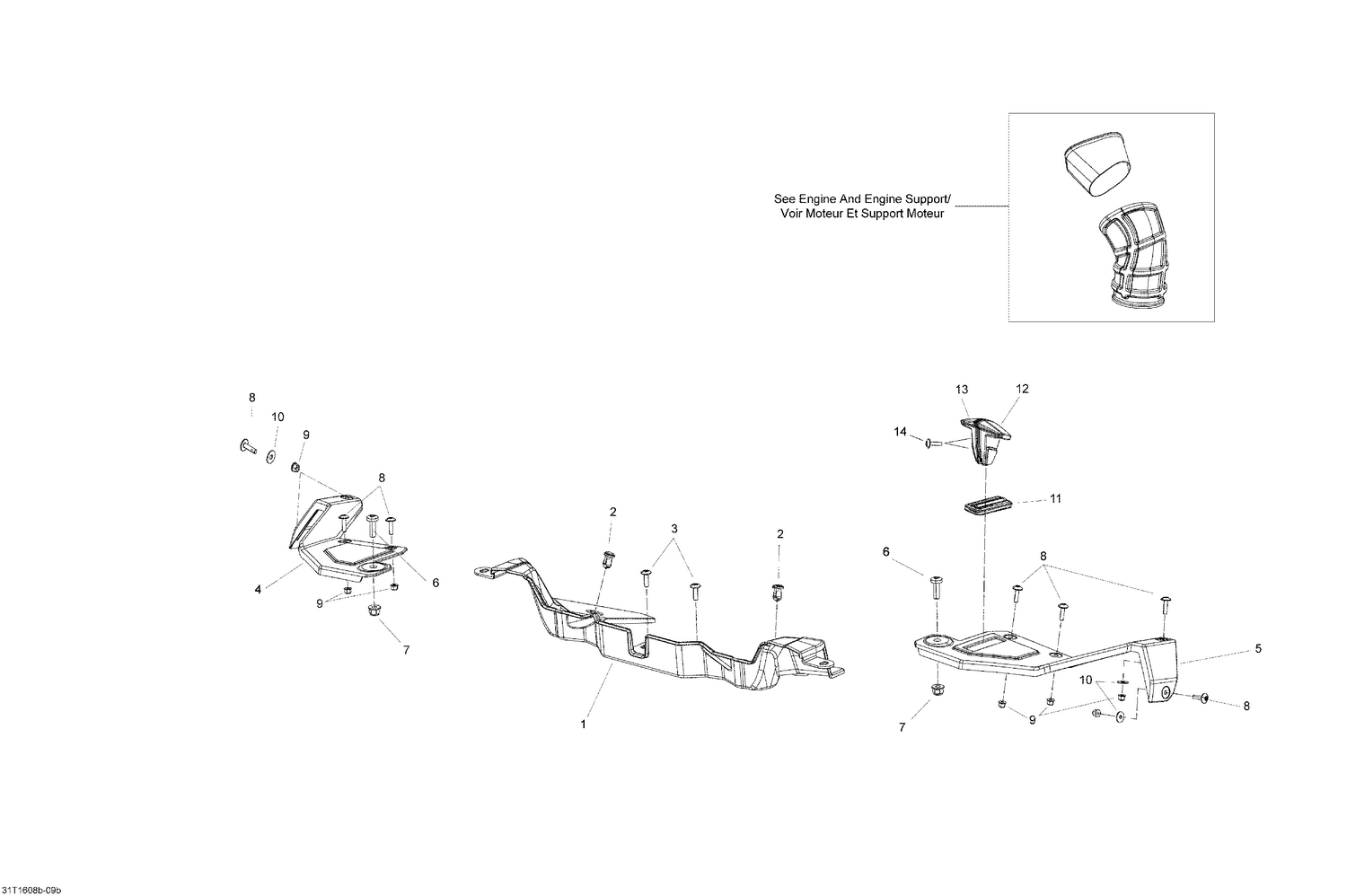

| Ref | Part Number | Description |
|---|
| 1 |
705007824 |
REAR TOP PANEL - Call your local BRP dealership |
| 2 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 3 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 4 |
705013820 |
LH Rear Fender Trim This part replaces 705007825. |
| 5 |
715002802 |
RH Rear Fender Trim |
| 6 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
250000586 |
Torx Truss M5 X 20 |
| 9 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 10 |
20008 |
Washer 5,3 mm |
| 11 |
705008047 |
Lever Rubber Seal |
| 12 |
705008048 |
Right Half Knob |
| 13 |
705008420 |
Left Half Knob |
